Shift Lock Control Schematics

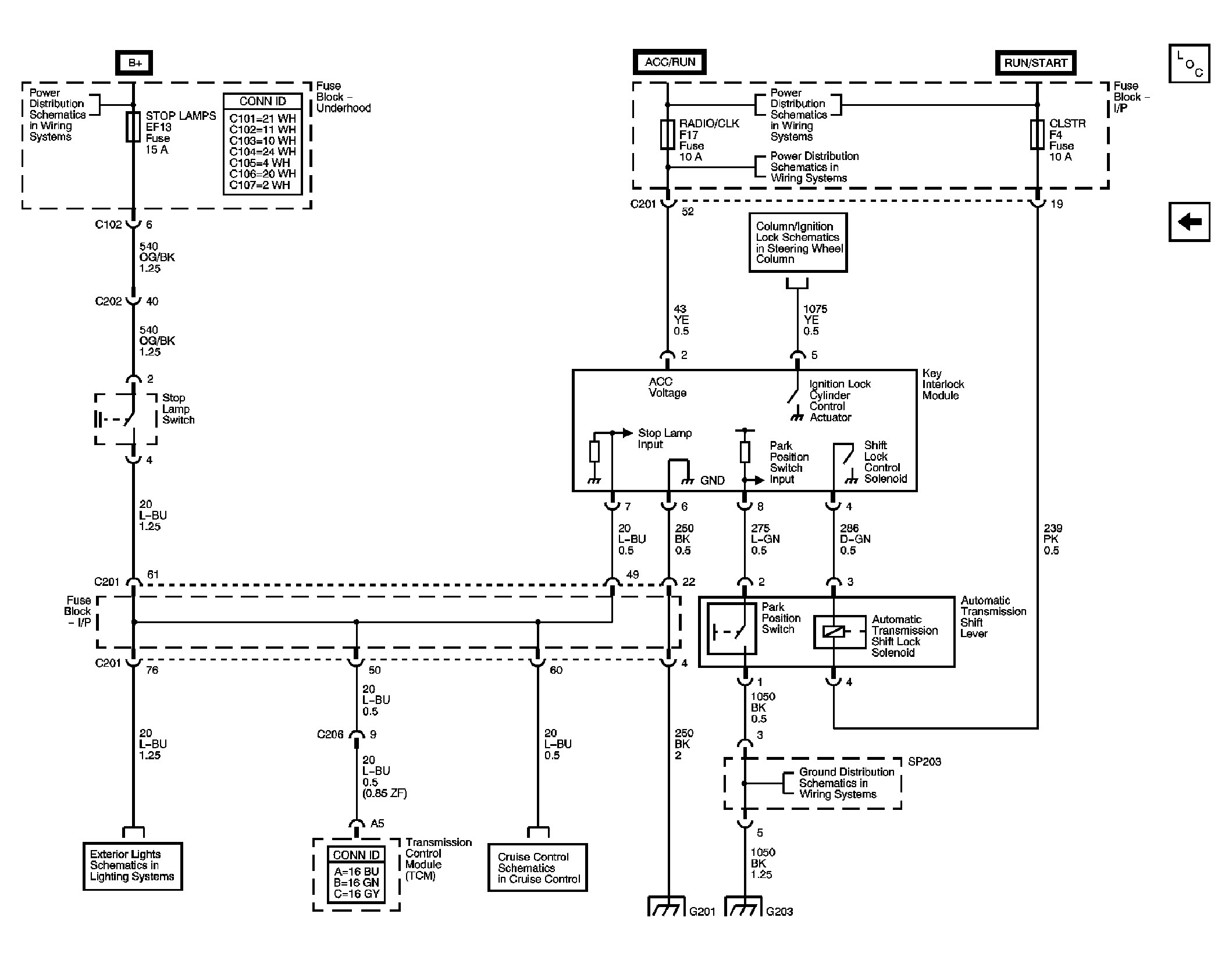

Fig 1: Automatic Transmission Shift Lock Control Schematic - With Ignition Lock Cylinder Control Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 2: Automatic Transmission Shift Lock Control Schematic w/o Ignition Lock Cylinder Control Actuator

Courtesy of GENERAL MOTORS CORP.
