Shift Select Control

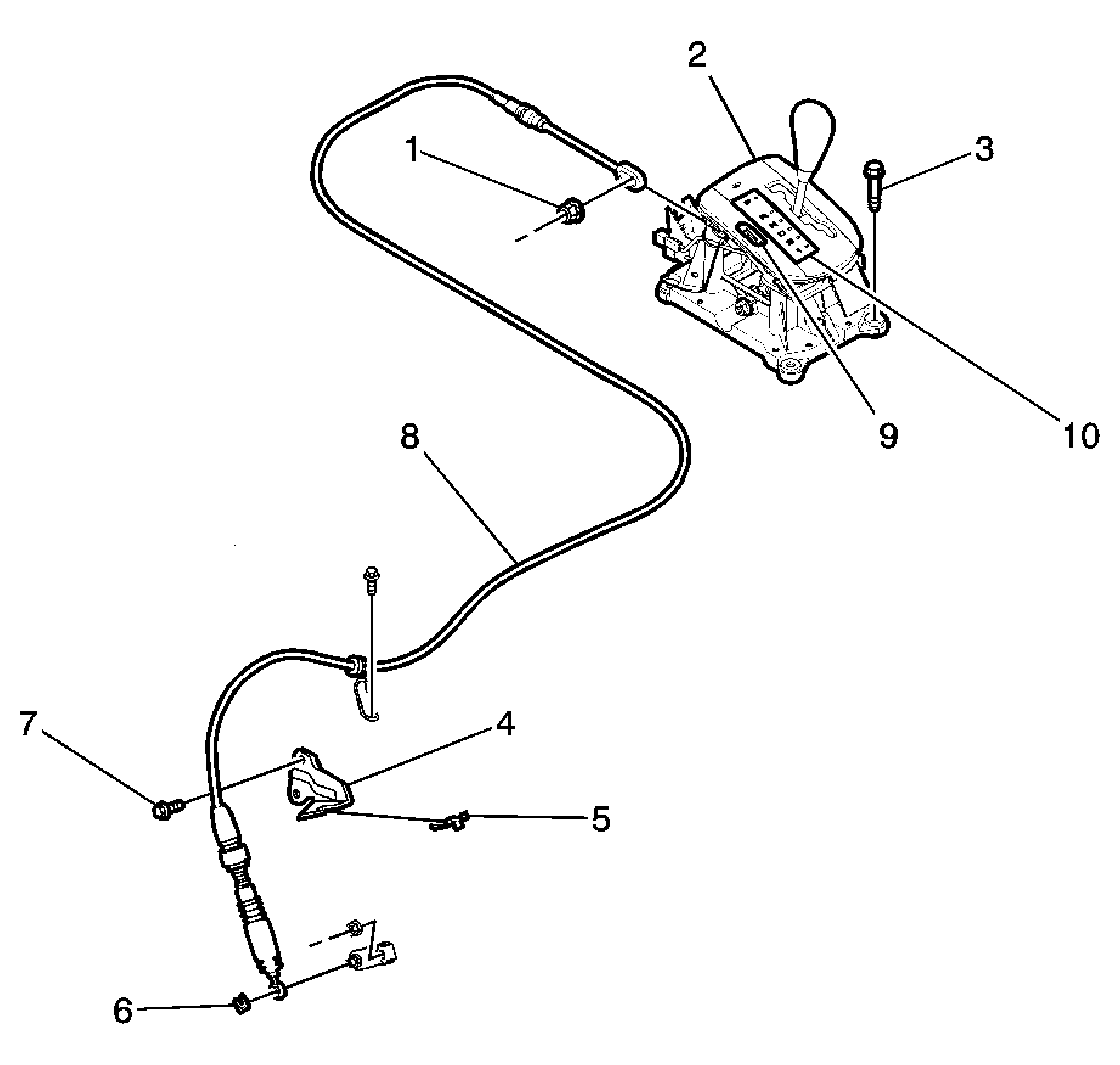

Fig 1: View Of Shift Select Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Nut
2	Select Control Lever Assembly
3	Bolt
4	Cable Fastener
5	Clamp
6	E-Ring
7	Bolt
8	Select Control Cable
9	Shift Program Switch
10	Shift Indicator Lamp
