Installation Procedure

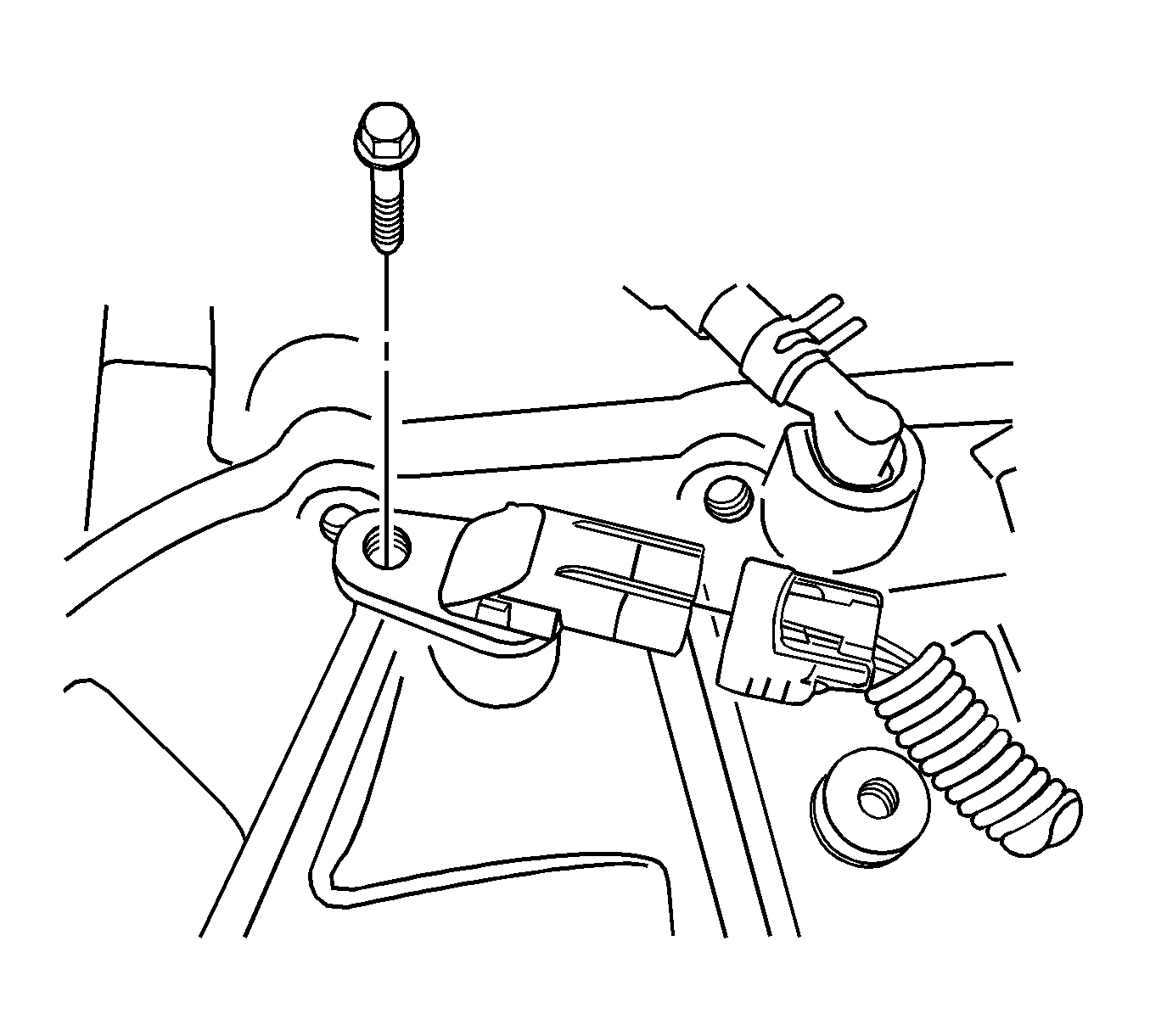

    Fig 1: View Of ISS Sensor And Retaining Bolt
    GM1245829Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Lubricate the O-ring with ISU DEXRON III.
  1. Install a new O-ring on the ISS sensor.
    2. NOTE: Refer to Fastener Notice .
  2. Install the ISS sensor and retaining bolt into the transaxle case.

    Tighten:  Tighten the ISS sensor retaining bolt to 5.4 N.m (48 lb in)  .

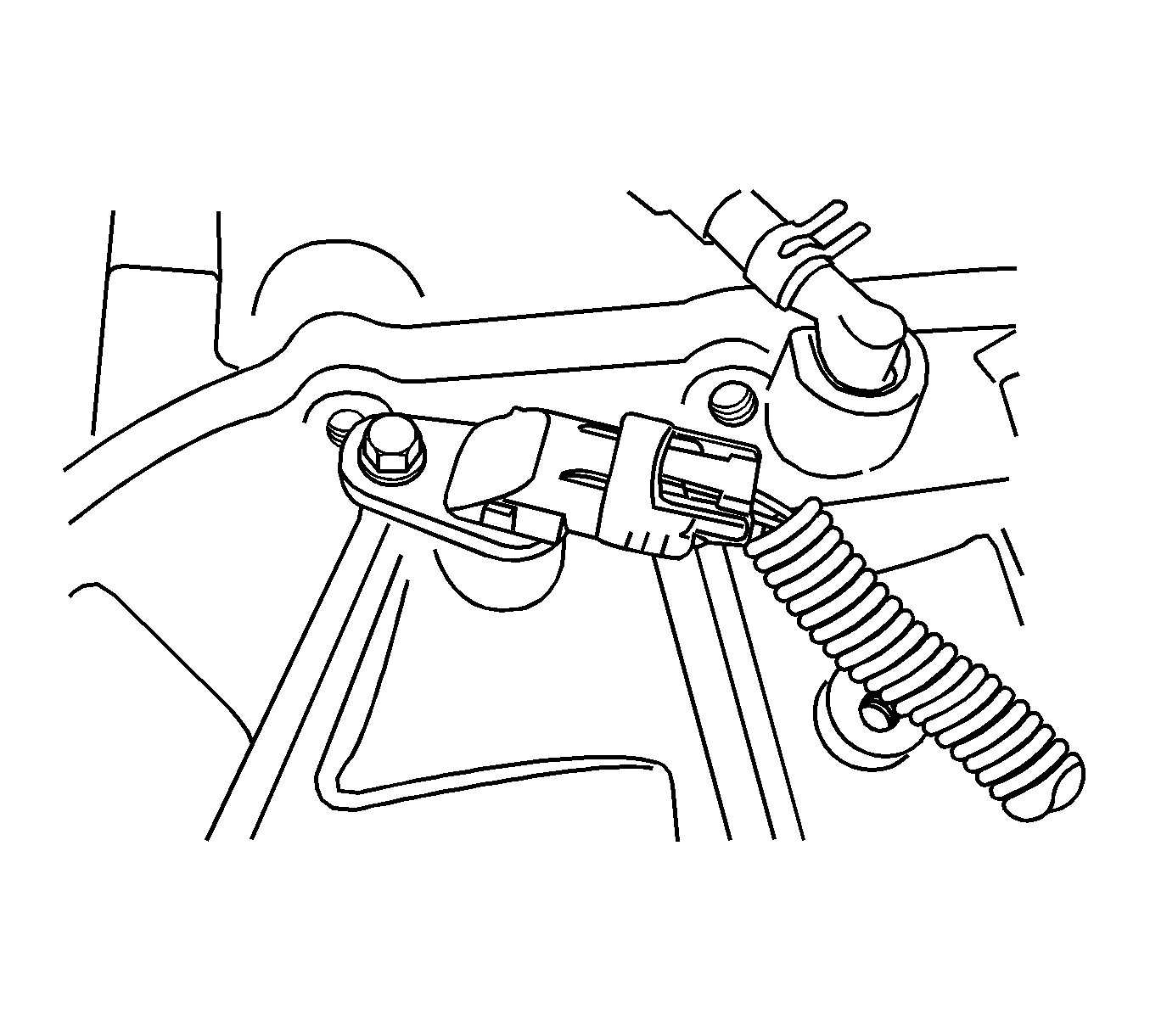

    3. Fig 2: View Of ISS Sensor Electrical Connector
    GM1245834Courtesy of GENERAL MOTORS CORP.
  3. Connect the ISS sensor electrical connector.
  4. Connect the negative battery cable.
