Home › Chevrolet › 2007 › Optra5 LS, Automatic › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic and Routing Diagrams › Defogger Schematics

Defogger Schematics

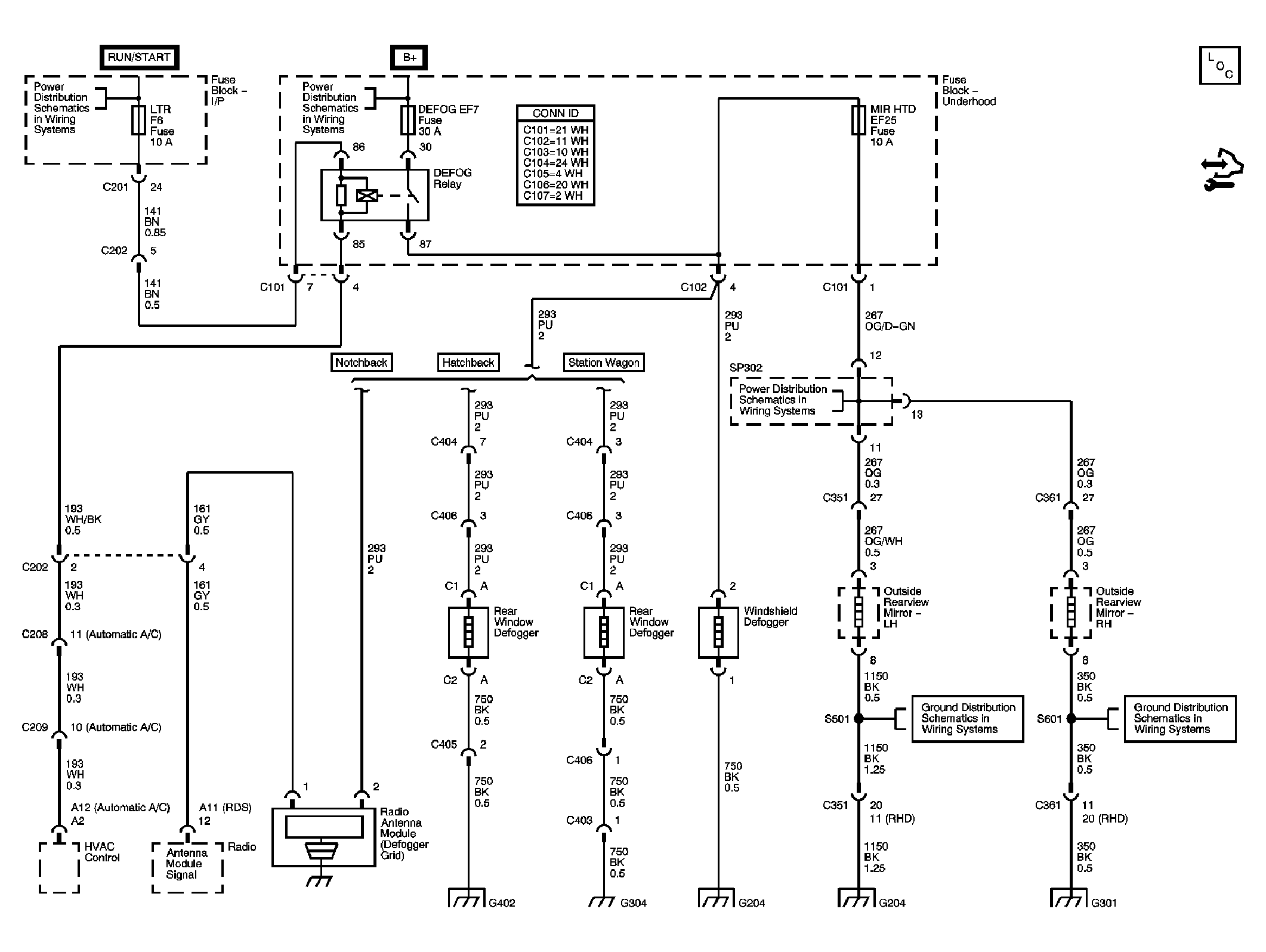

Fig 1: Defogger Schematic
GM1708732Courtesy of GENERAL MOTORS CORP.
