Moveable Window Schematics

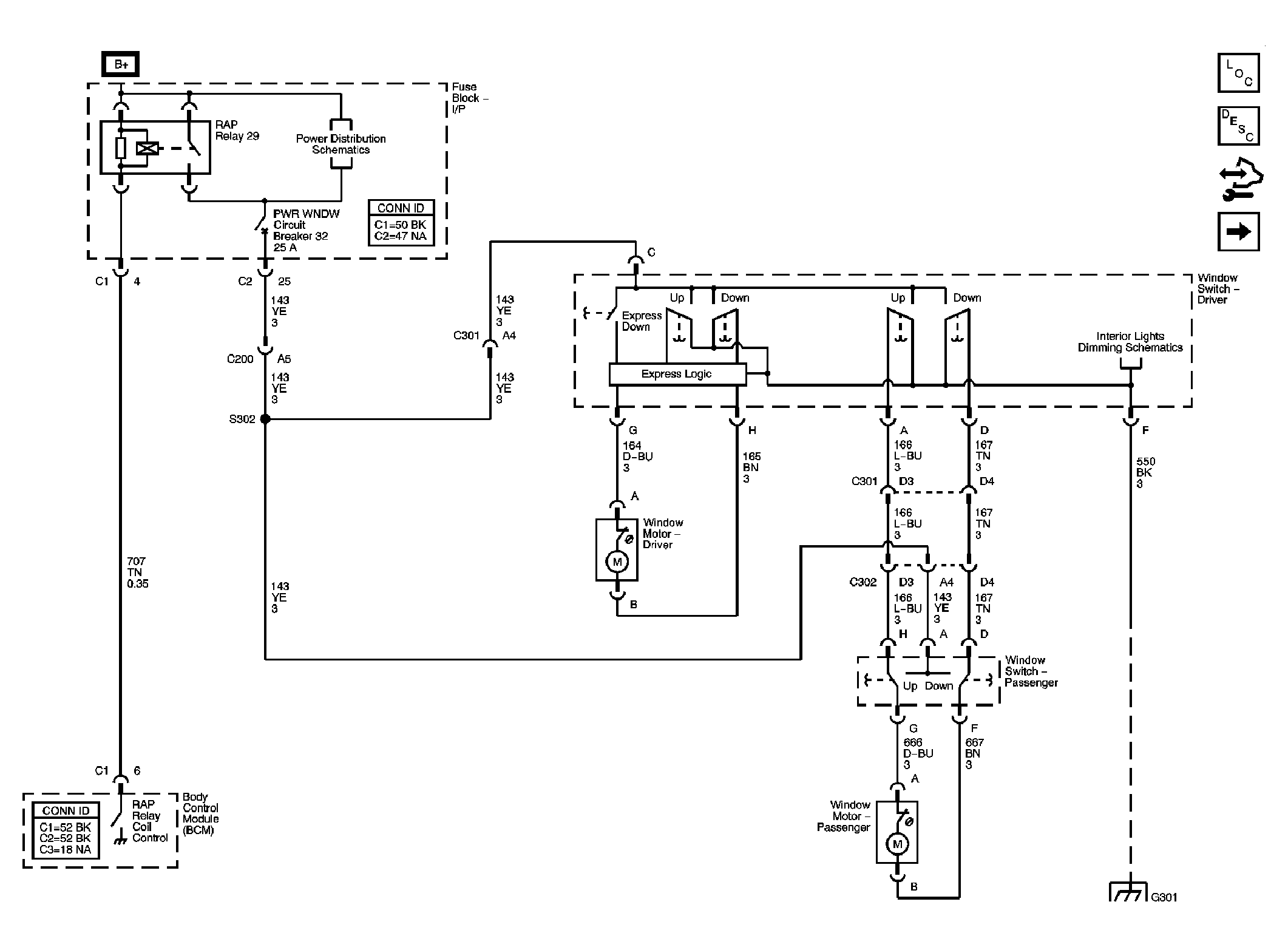

Fig 1: Front Door Windows
GM1740112Courtesy of GENERAL MOTORS CORP.

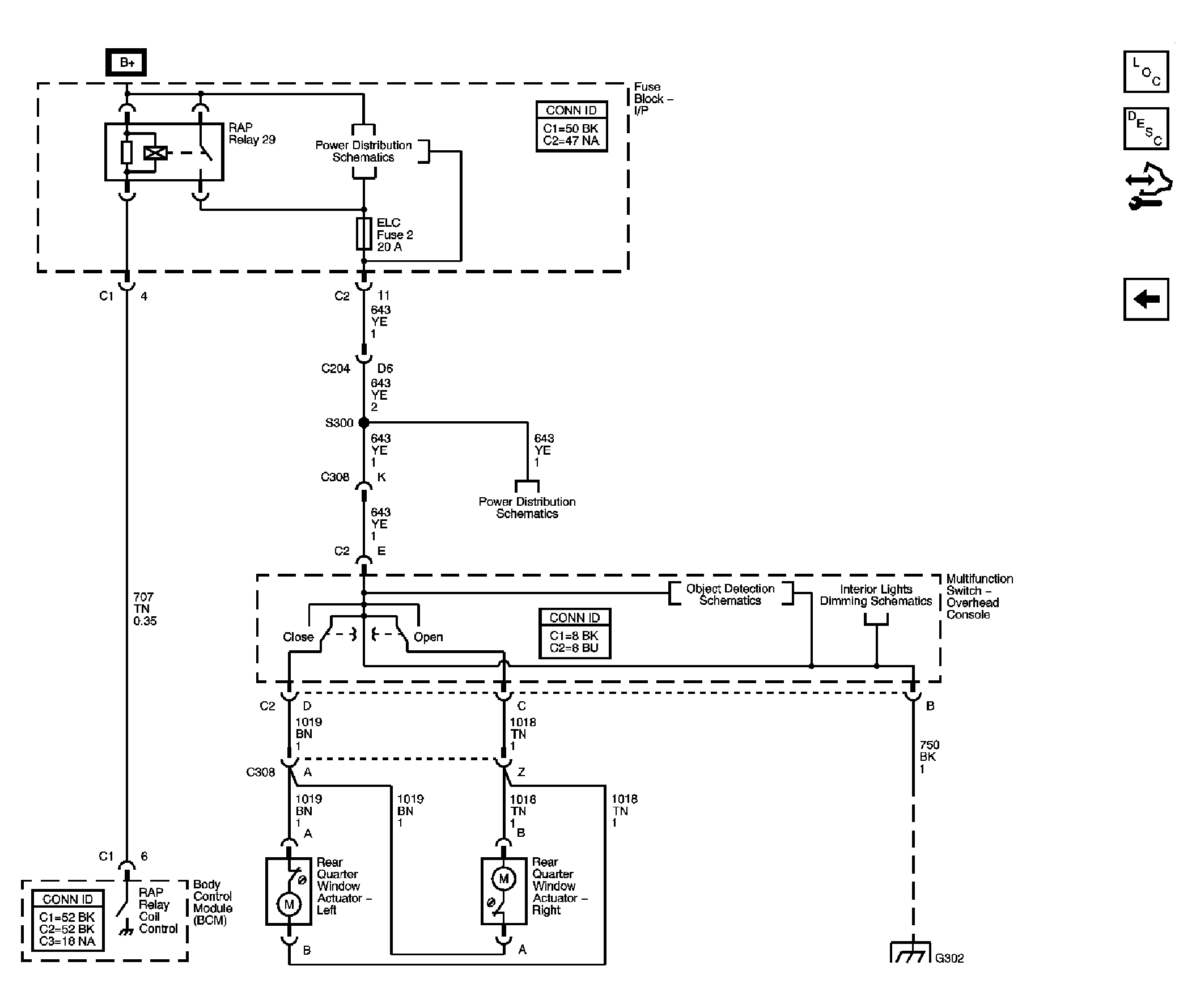

Fig 2: Rear Quarter Windows
GM1740113Courtesy of GENERAL MOTORS CORP.
