Removal Procedure

    Fig 1: View of Manual Remote Control Mirror and Escutcheon
    GM1248493Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door escutcheon. Manual remote control mirror shown.

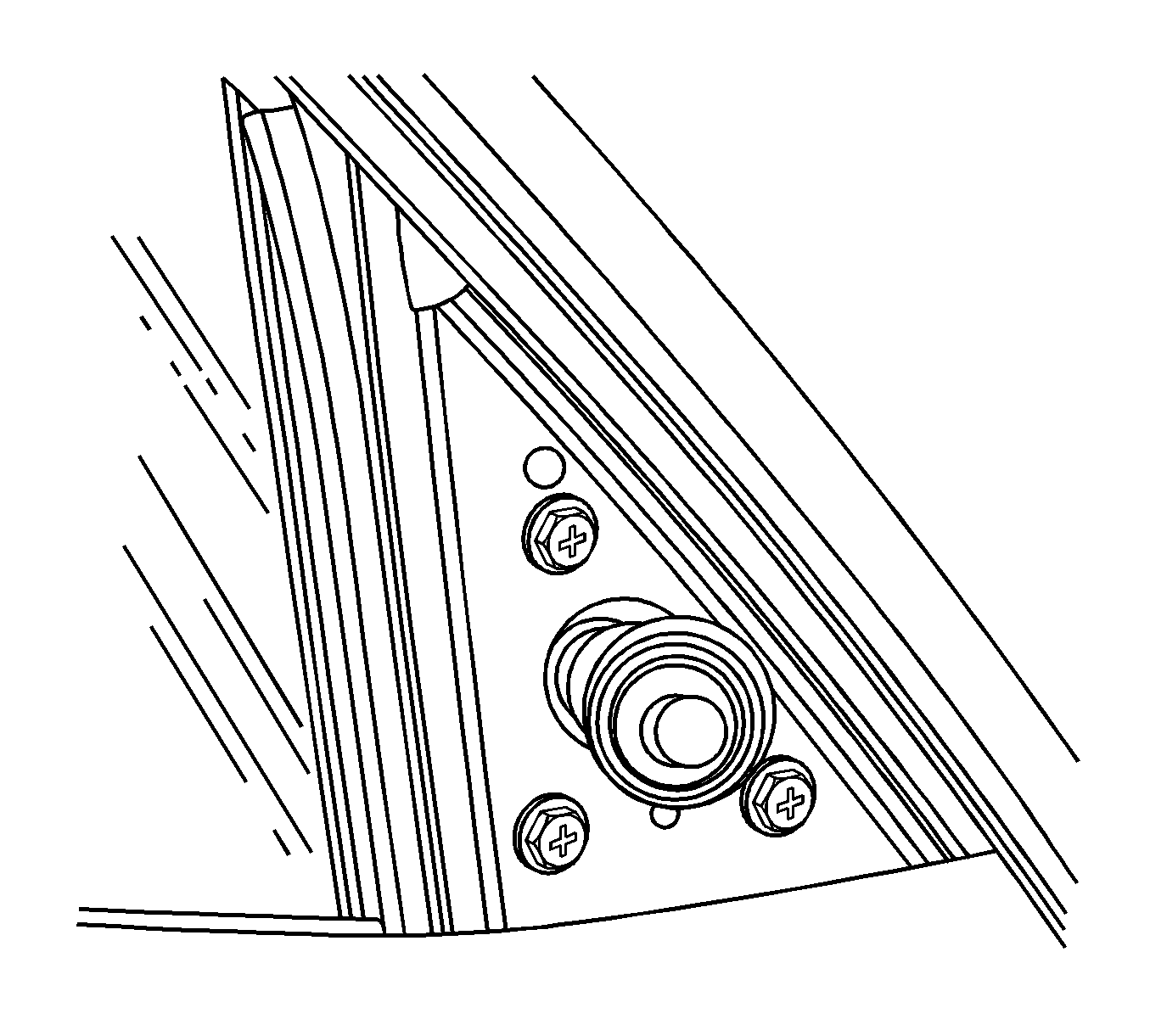

    2. Fig 2: Outside Rearview Mirror Assembly Screws
    GM1885680Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electric control rearview mirror electrical connector, if equipped.
  3. Remove the screws and the outside rearview mirror assembly from the door. Manual remote control mirror shown.
