Antilock Brake System Schematics

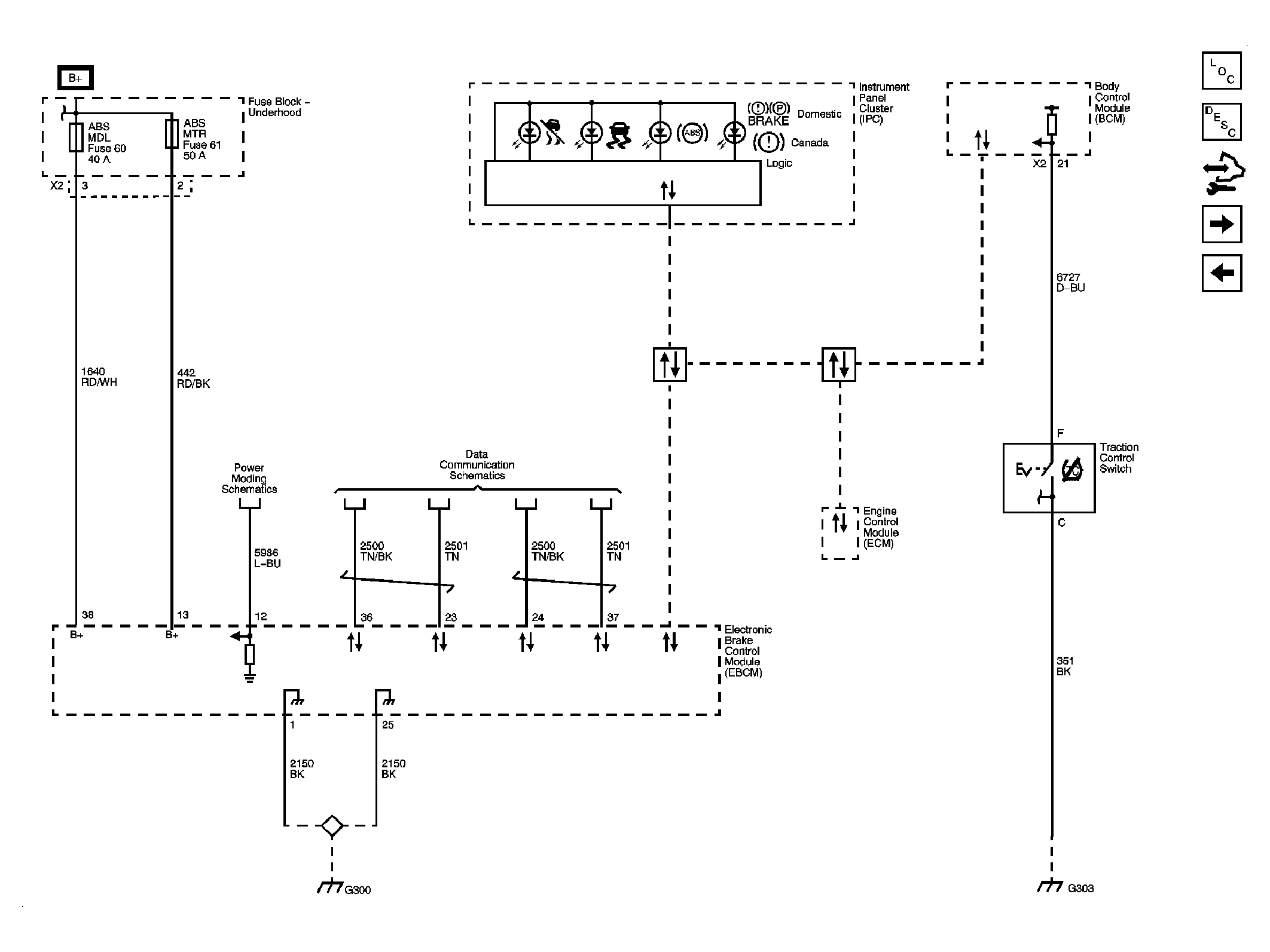

Fig 1: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - w/o JL4 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wheel Speed Sensors and VSS - w/o JL4 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch JL4 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Wheel Speed Sensors and VSS JL4 Schematic

Courtesy of GENERAL MOTORS CORP.

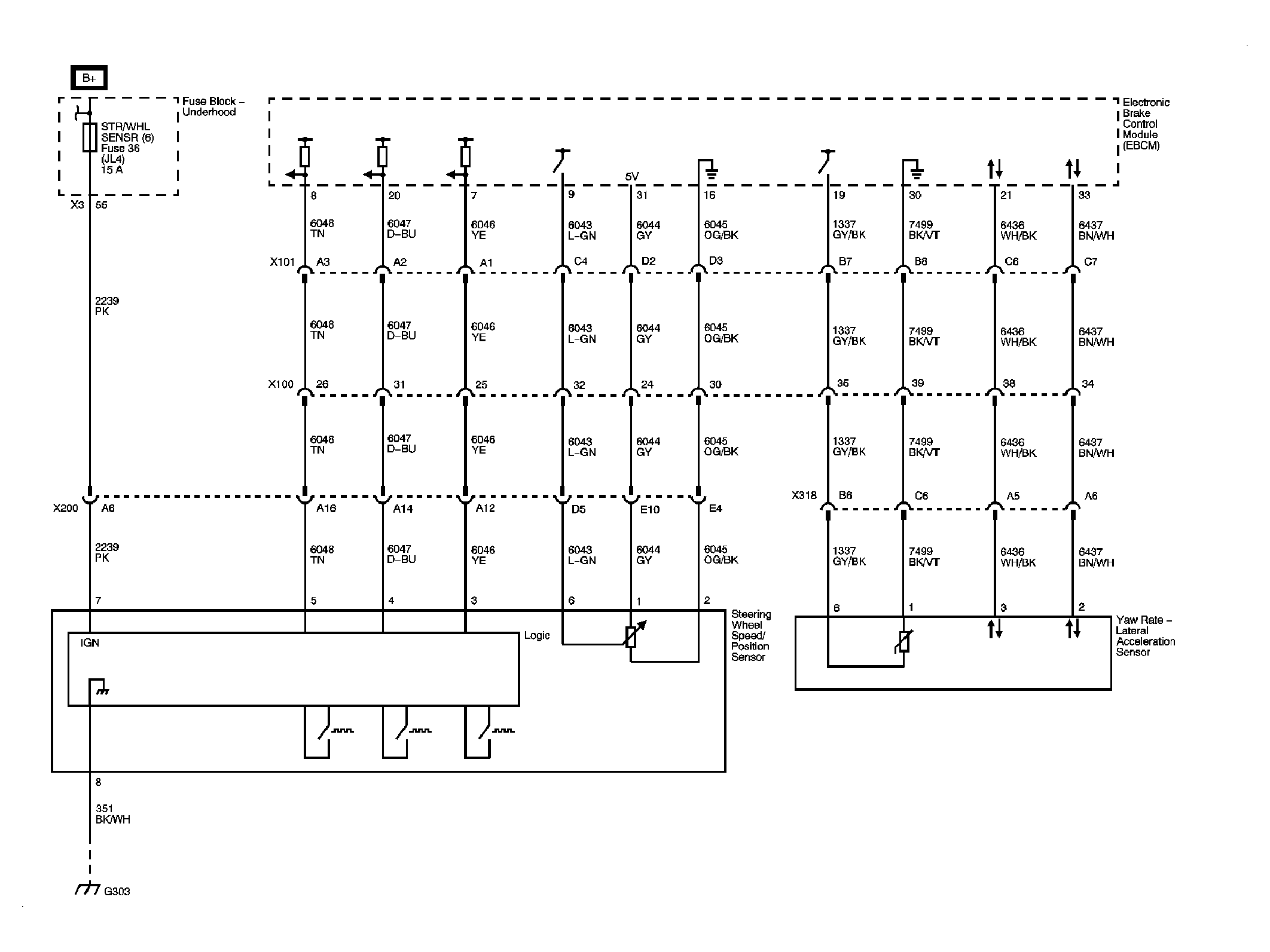

Fig 5: Yaw and Lateral Acceleration Sensor Inputs JL4 Schematic

Courtesy of GENERAL MOTORS CORP.

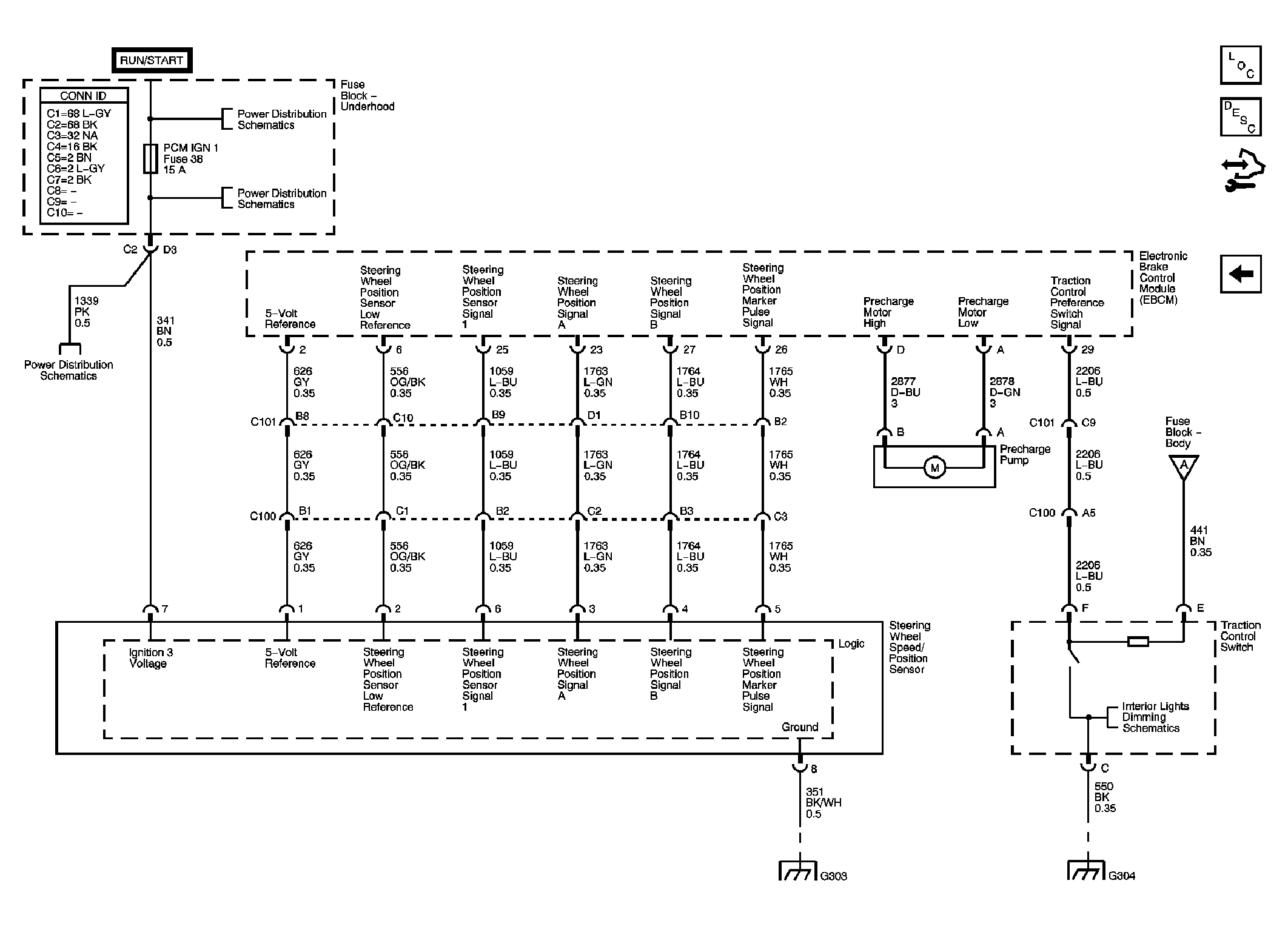

Fig 6: Steering Wheel/Speed Position Inputs, Traction Control Switch, and Precharge Pump JL4 Schematic

Courtesy of GENERAL MOTORS CORP.
