Engine Controls Schematics

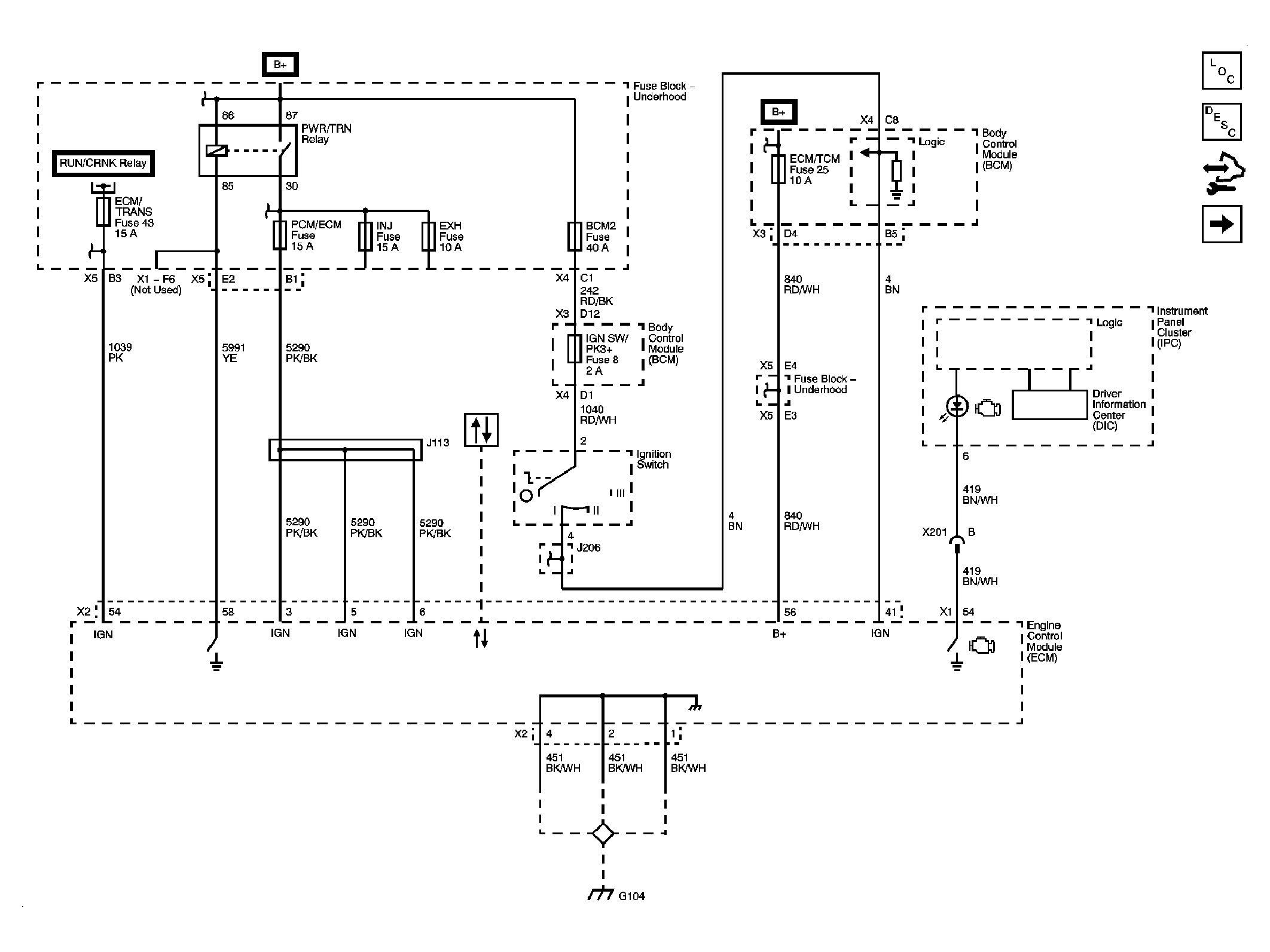

Fig 1: Power, Ground, MIL, Communication Schematic

Courtesy of GENERAL MOTORS CORP.

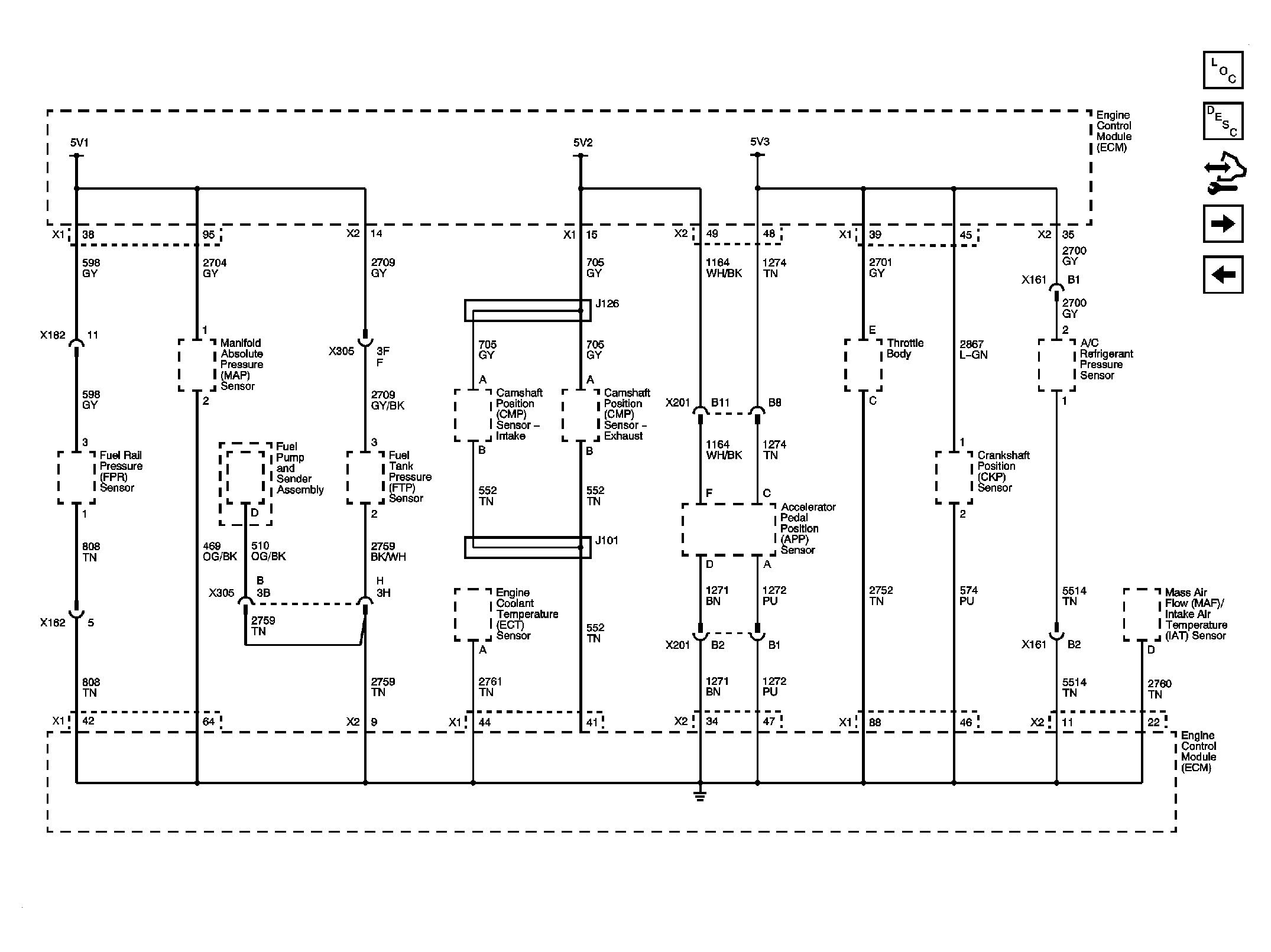

Fig 2: 5-Volt and Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

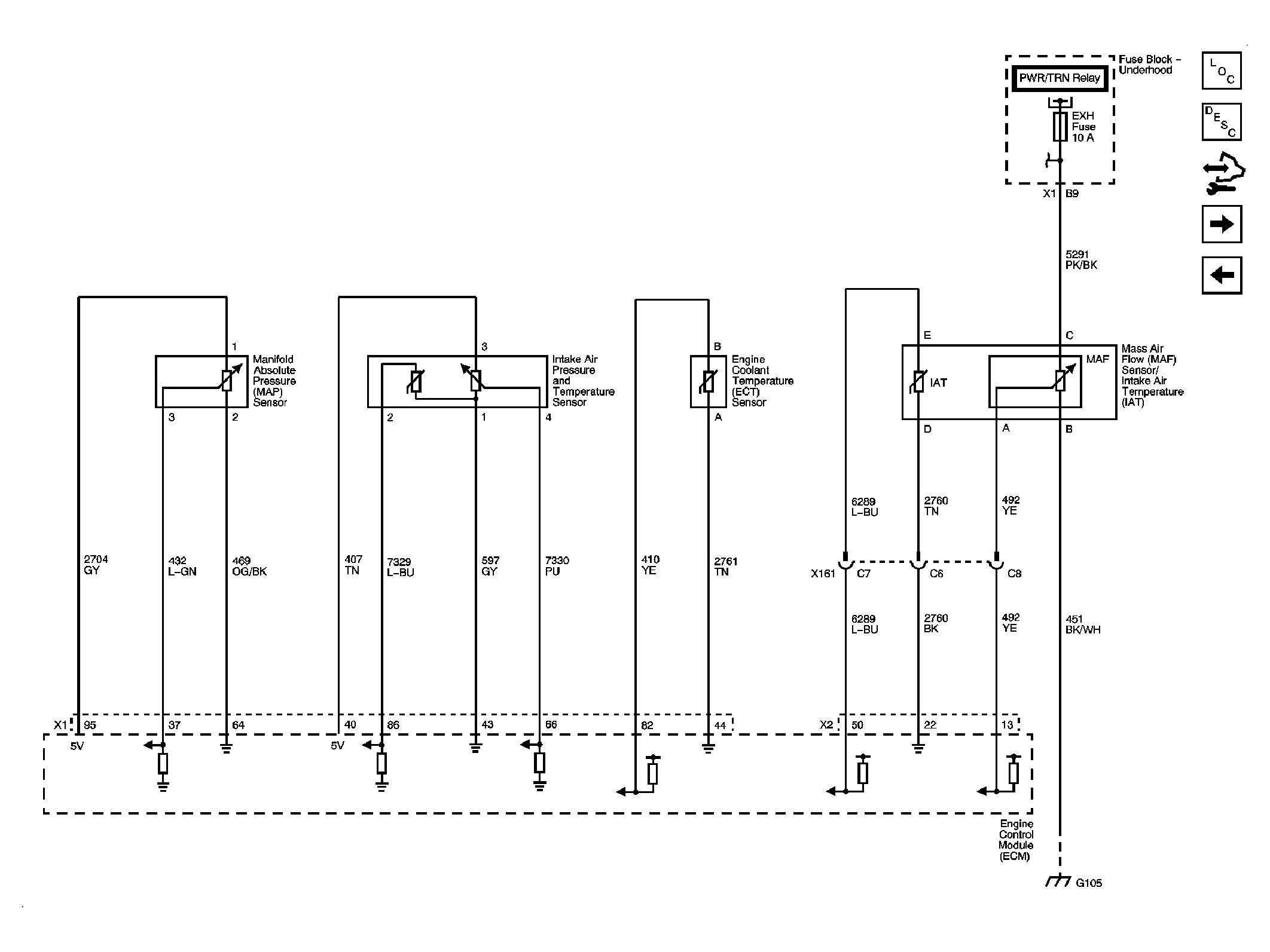

Fig 3: Engine Data Sensors - Pressure, Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

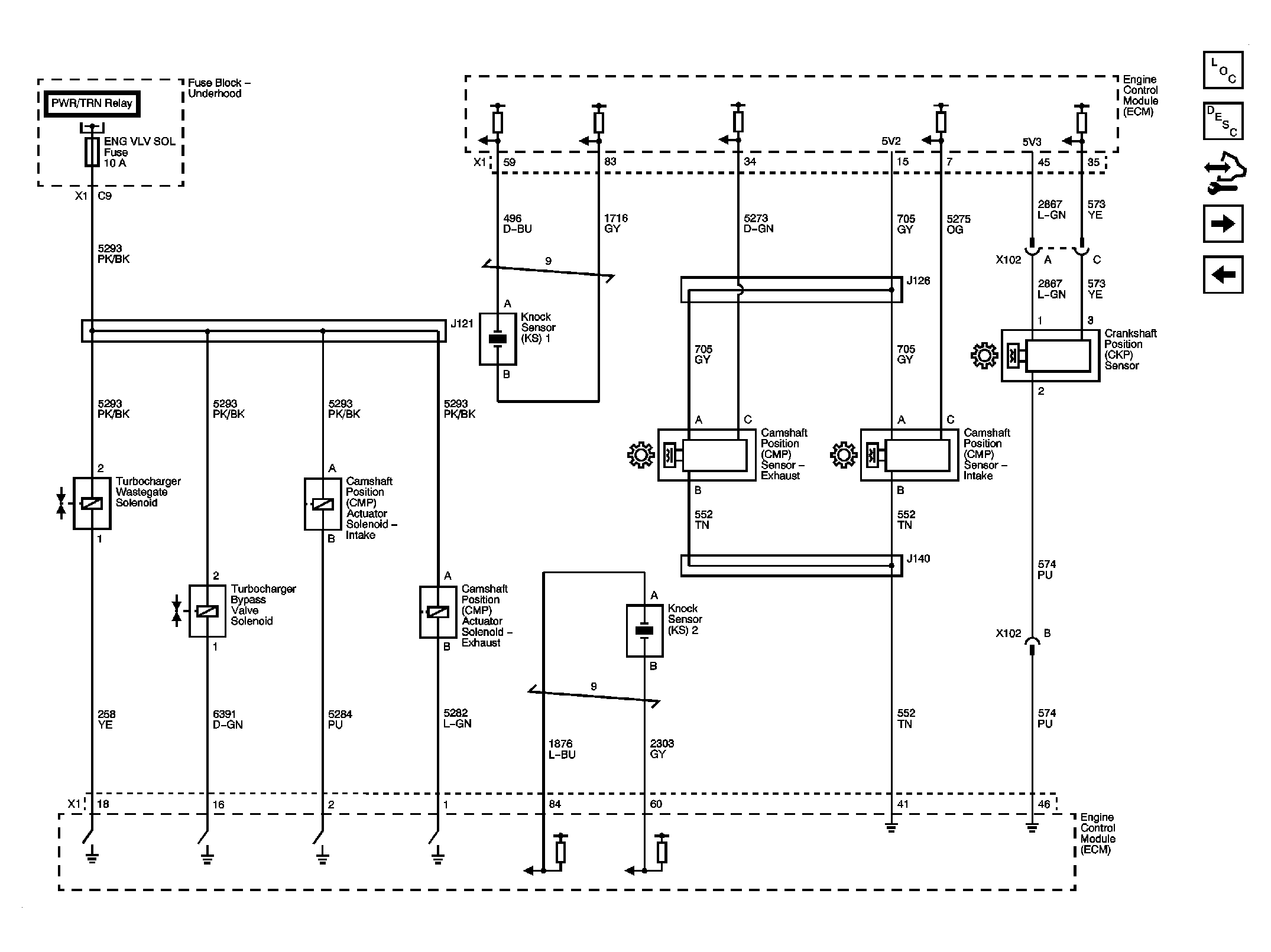

Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS, CMP, VSS Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - APP, Throttle Body Schematic

Courtesy of GENERAL MOTORS CORP.

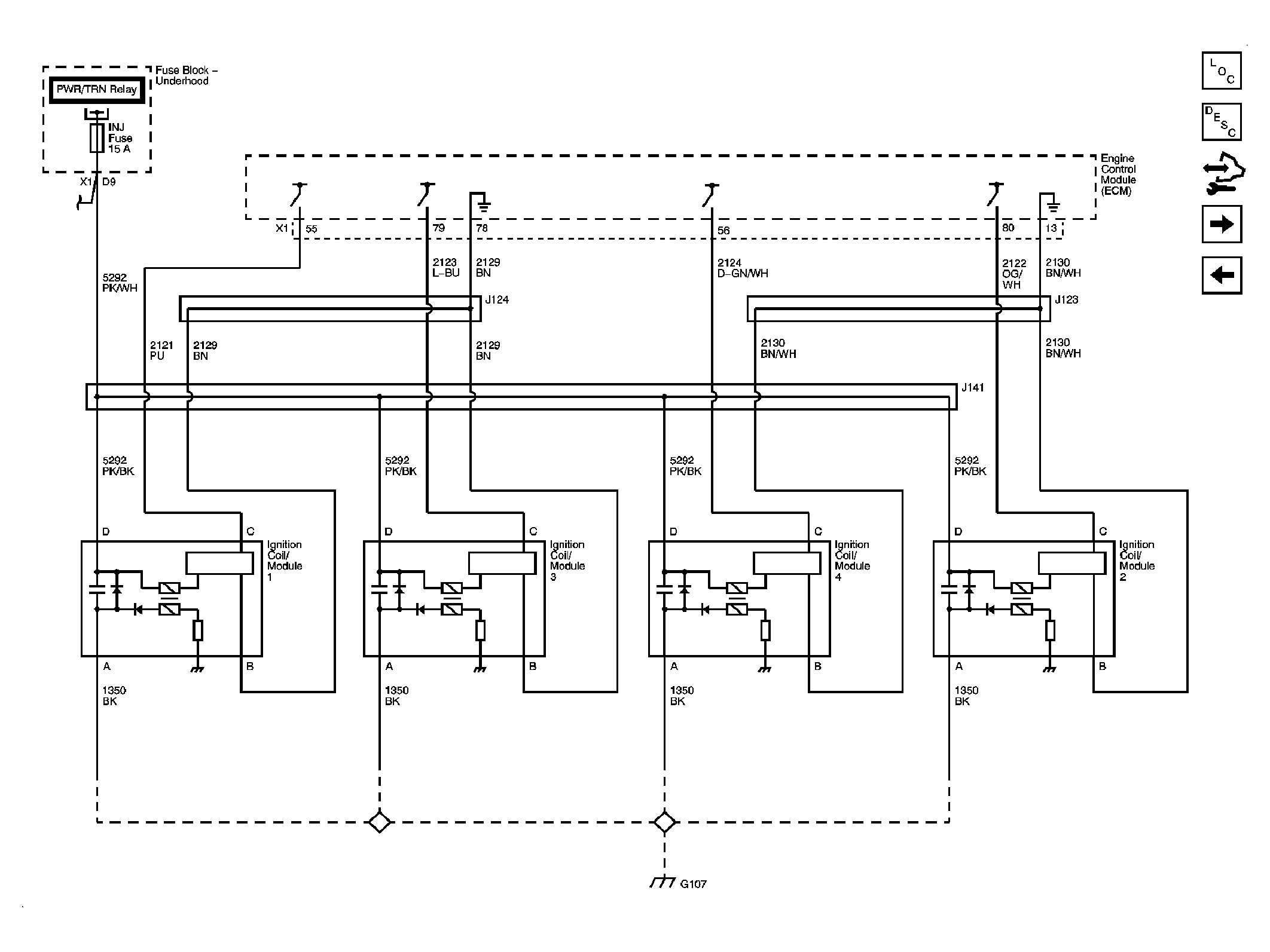

Fig 7: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

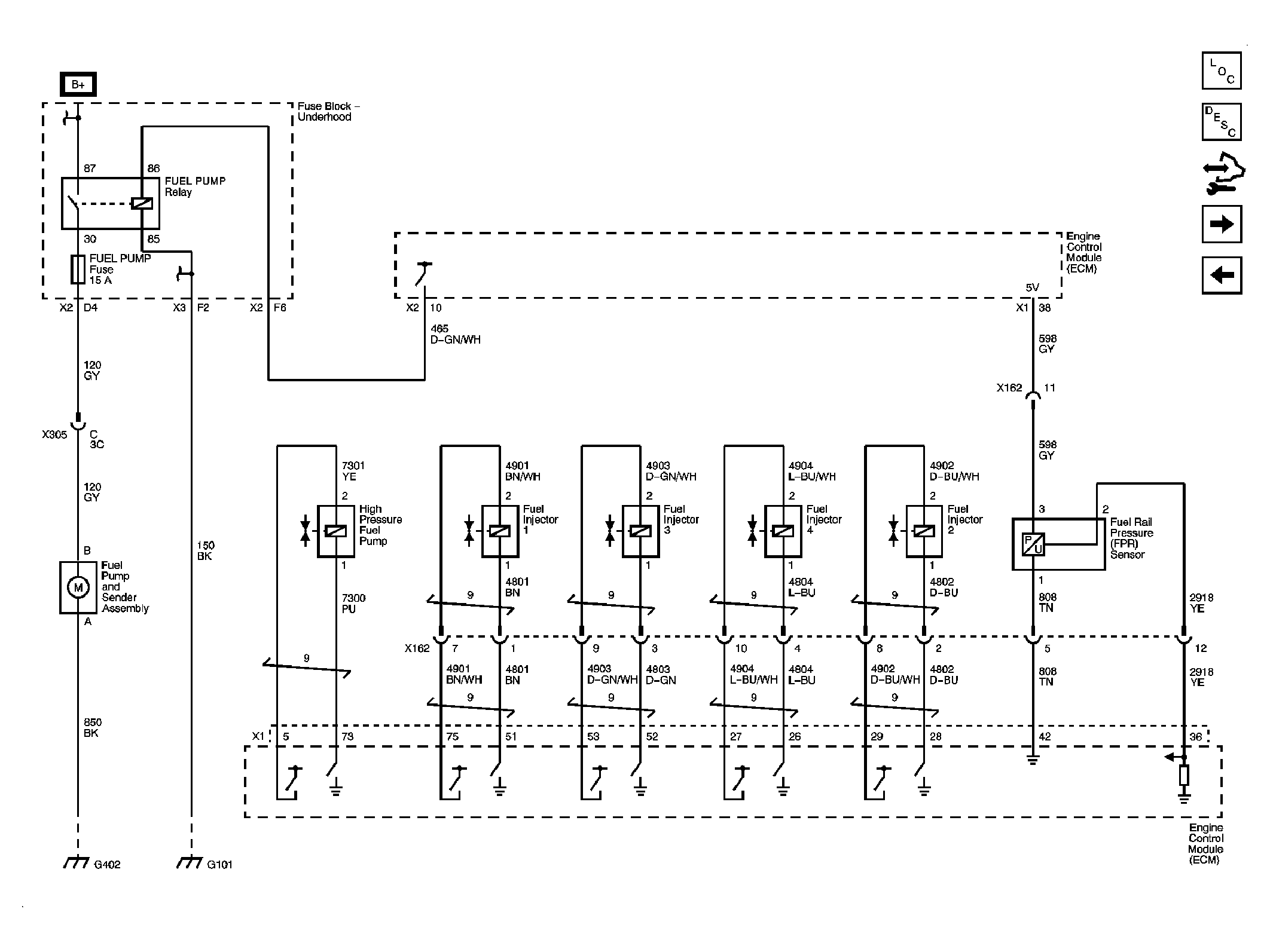

Fig 8: Fuel Delivery Schematic

Courtesy of GENERAL MOTORS CORP.

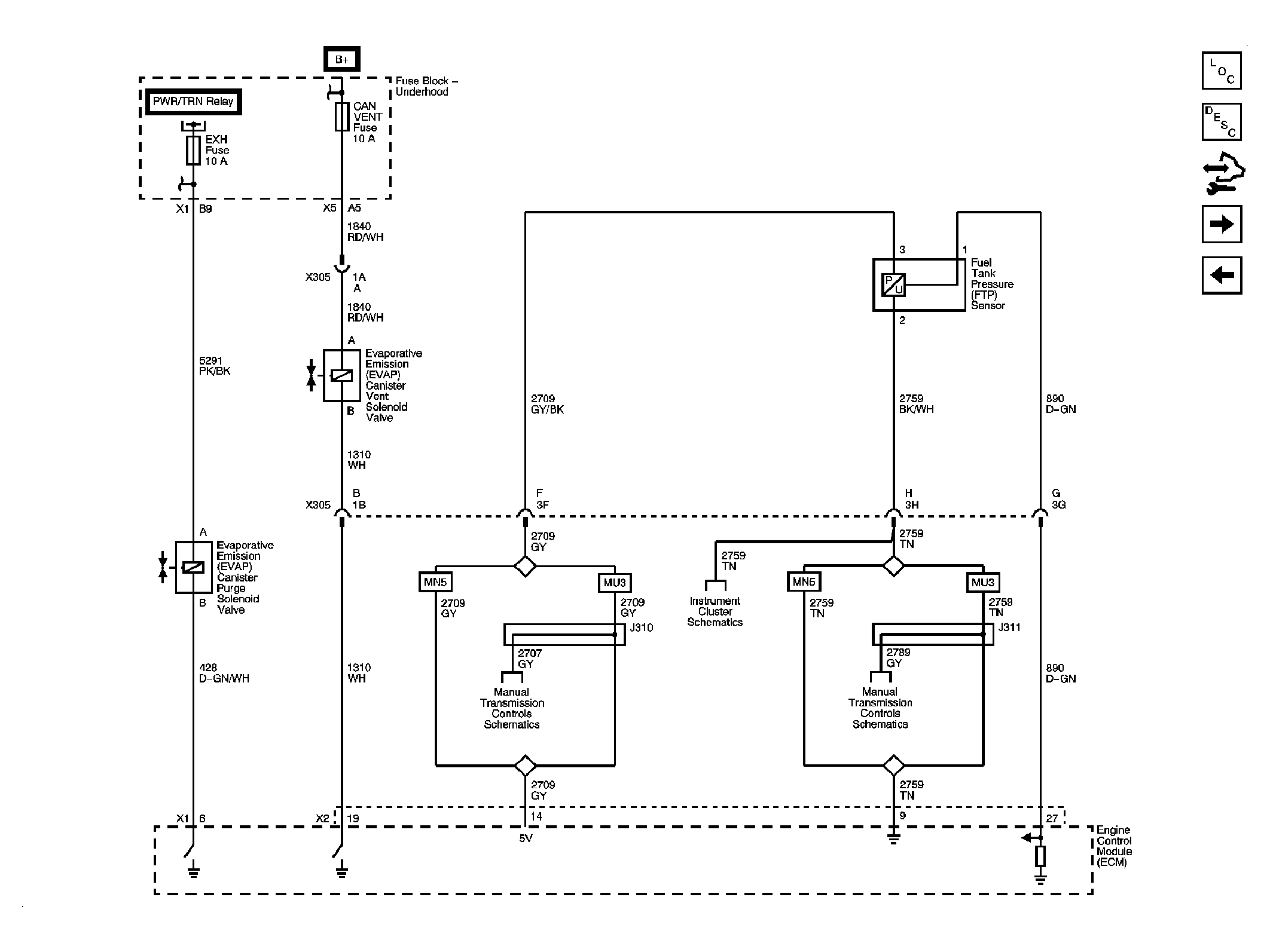

Fig 9: Engine Data Sensors - EVAP, Fuel Tank Pressure (FTP) Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

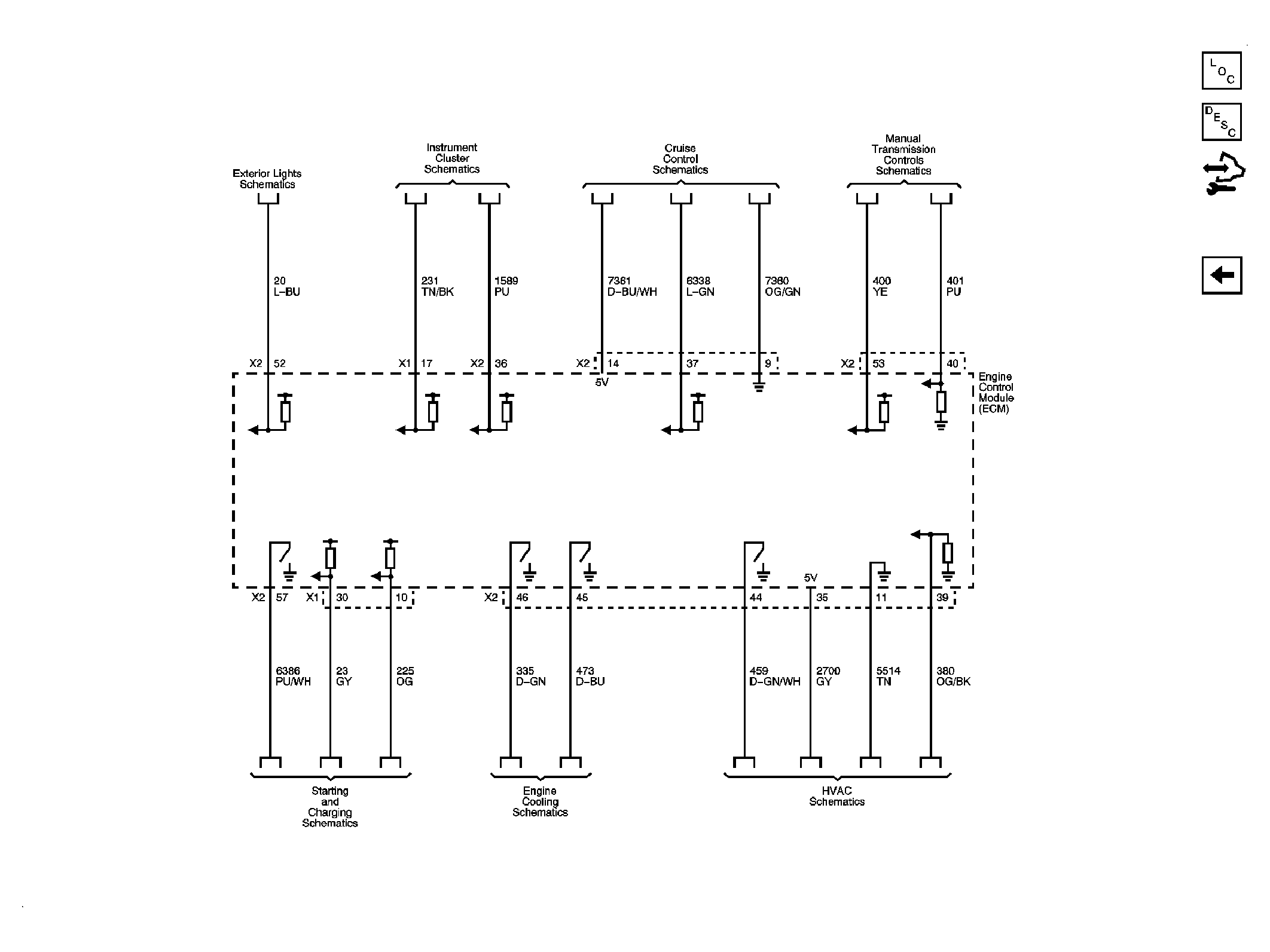

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
