Turn Signal Multifunction Switch Replacement

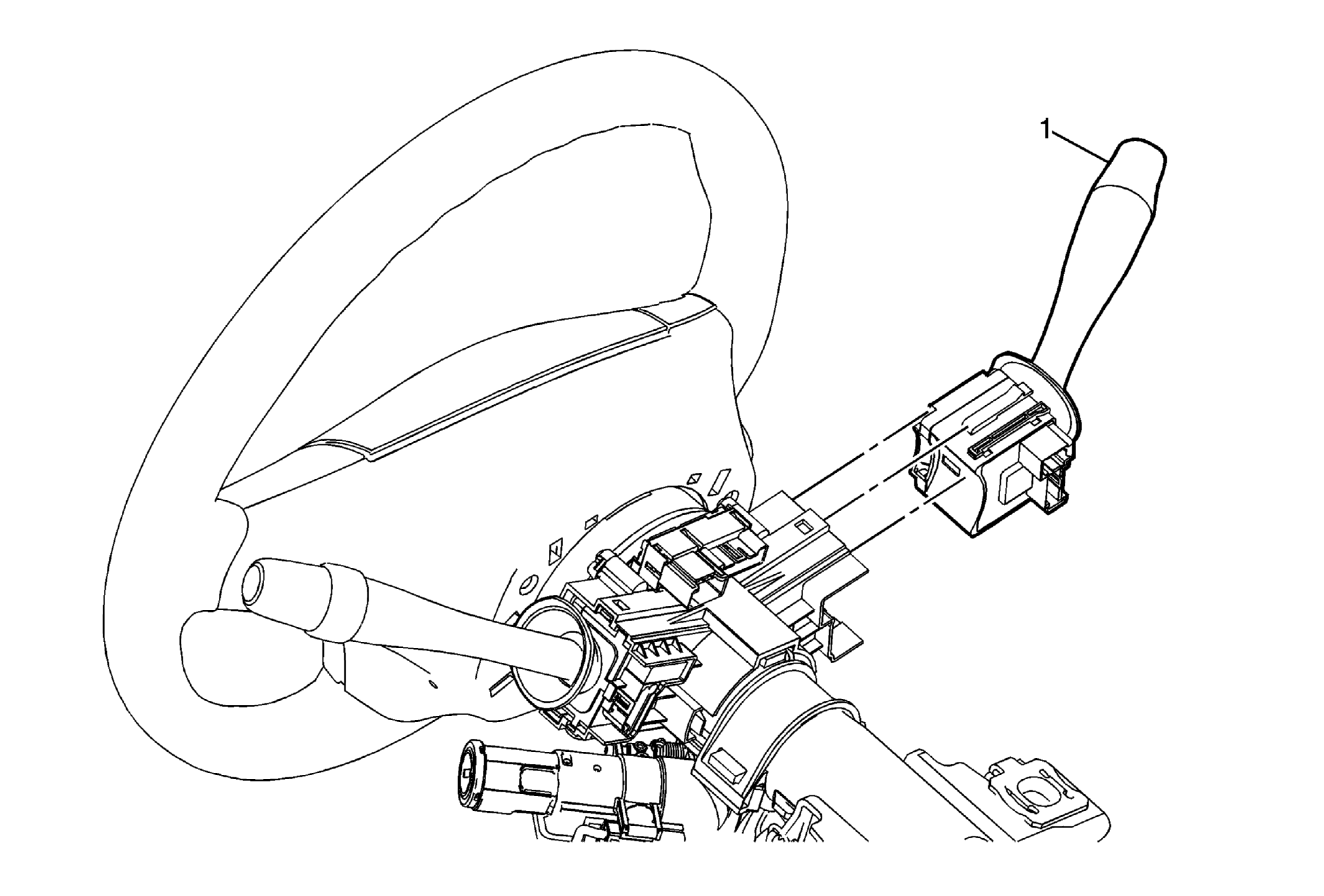

Fig 1: View Of Turn Signal Multifunction Switch
GM2085595Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the left side instrument panel trim panel. refer to Instrument Panel Trim Panel Replacement - Left Side .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
1 Turn Signal Multifunction Switch

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Release the plastic retaining tabs to remove the turn signal multifunction switch.
