Steering Wheel Control Switch Assembly Replacement

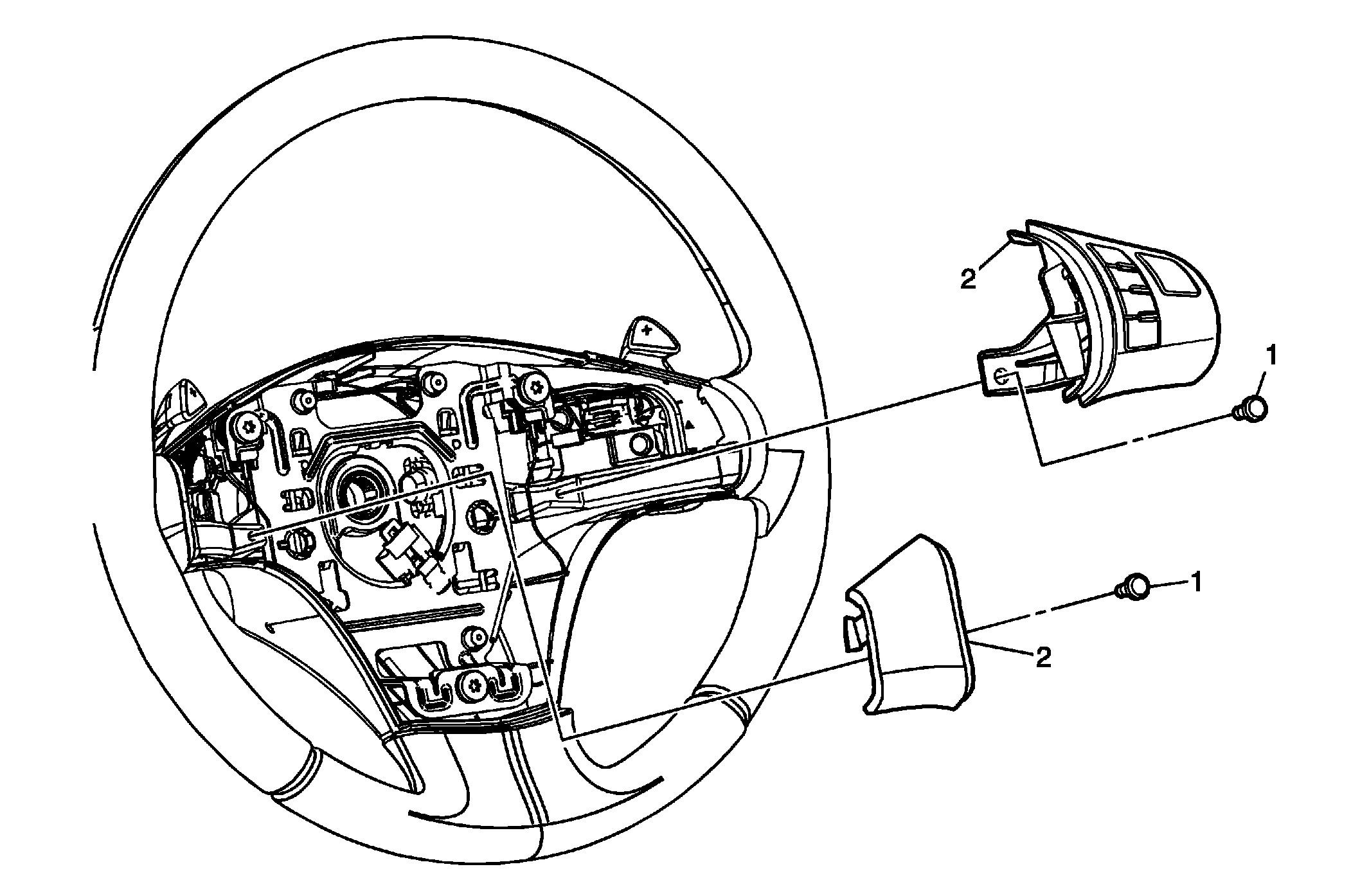

Fig 1: View Of Steering Wheel Control Switch & Screw

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Control Switch Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tip:  Remove the steering wheel control switch screws. Tighten:  2 N.m (18 lb in)
2	Steering Wheel Control Switch Tip:  Disconnect the electrical connectors from the switches.
