Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

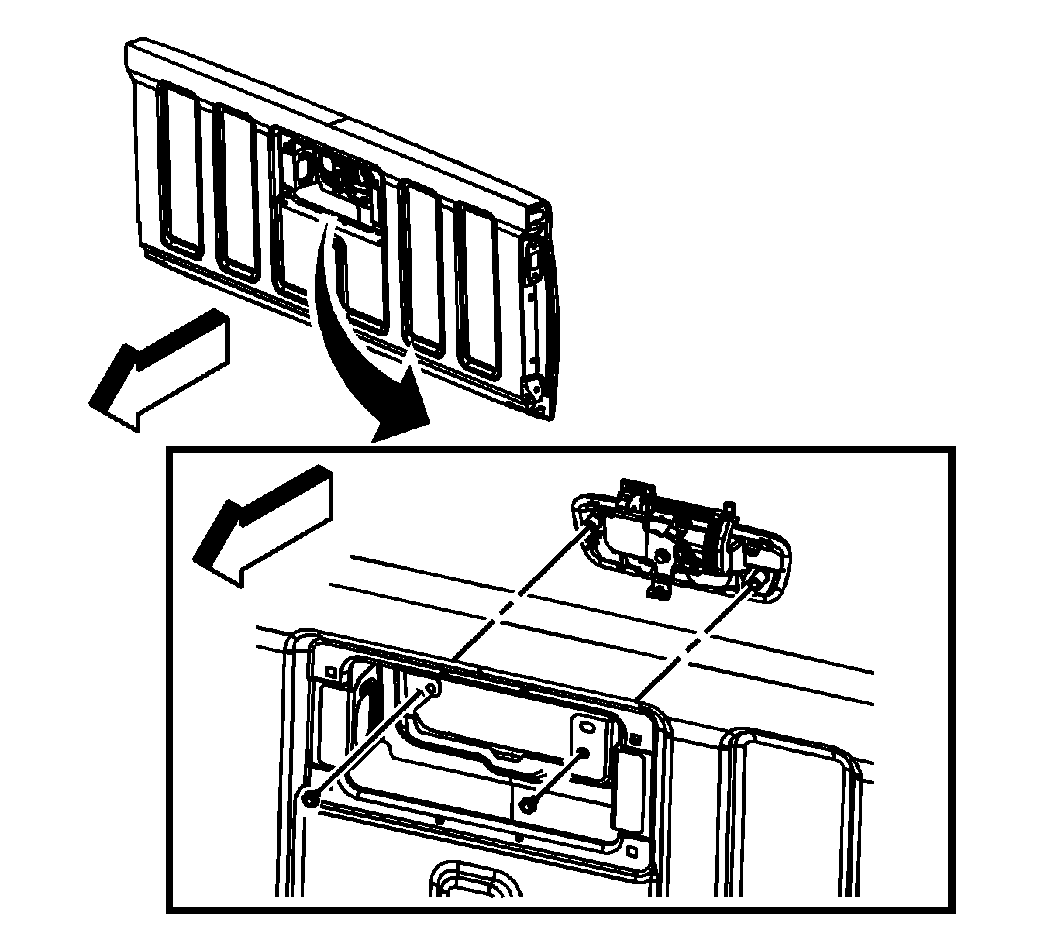

    Fig 1: View Of Endgate Handle
    GM1245383Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the endgate handle if equipped. Refer to Endgate Lock Cylinder Replacement .
  2. Install the endgate handle to the endgate.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts retaining the endgate handle to the endgate.

    Tighten:  Tighten the endgate handle bolts to 9 N.m (80 lb in).

    4. Fig 2: View Of Latch Rods & Retaining Clips
    GM1245380Courtesy of GENERAL MOTORS CORP.
  4. Install the endgate latch rods (2) to the retaining clips (1) on the endgate handle.
  5. Connect the clips (1) retaining the endgate latch rods (2) to the handle.
  6. Install the endgate cover. Refer to Pickup Box Endgate Latch Cover Replacement .
