Remote Function Schematics

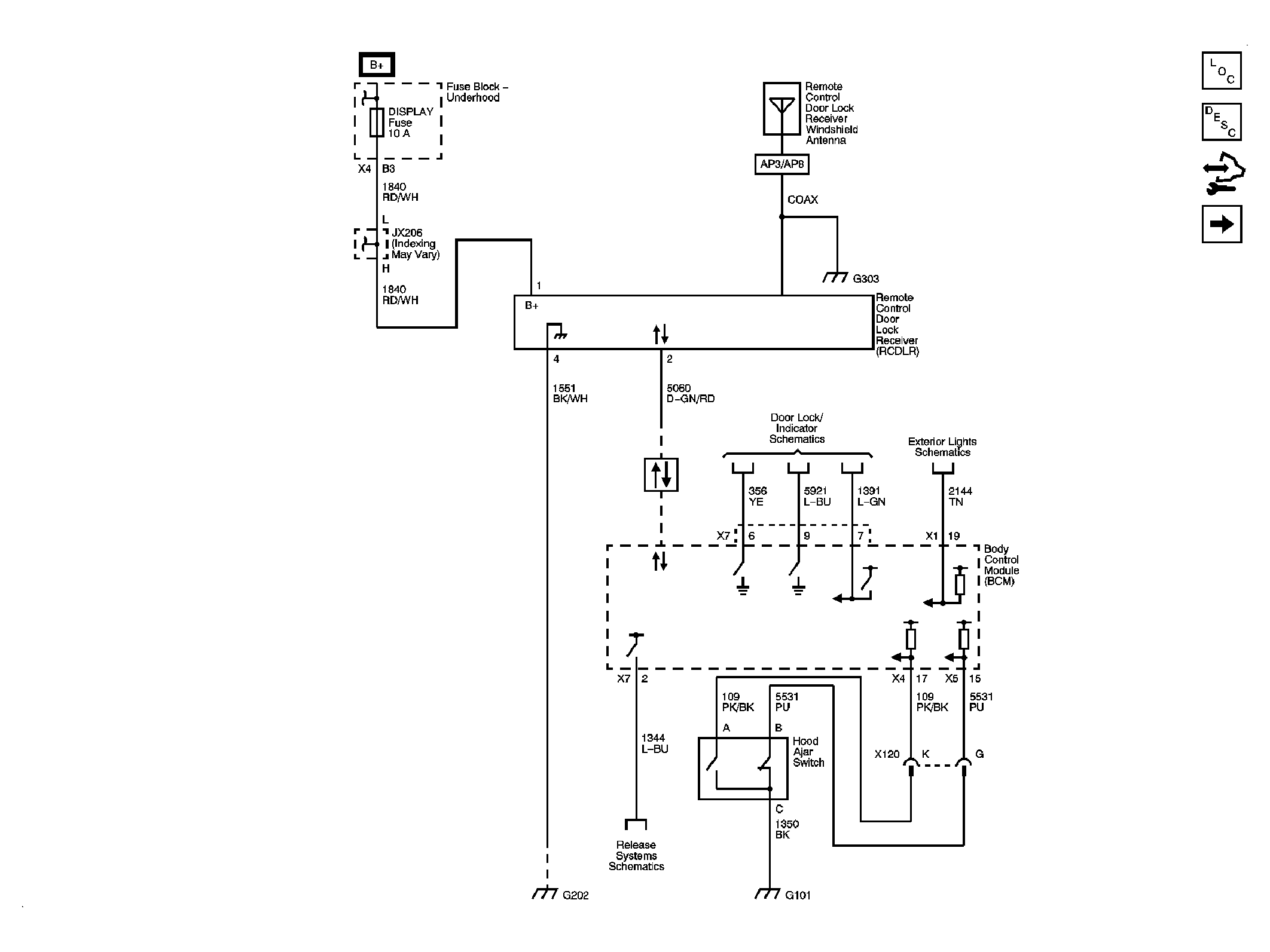

Fig 1: Keyless Entry Schematic
GM1888475Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener Schematic
GM1888516Courtesy of GENERAL MOTORS CORP.
