Antenna Cable Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

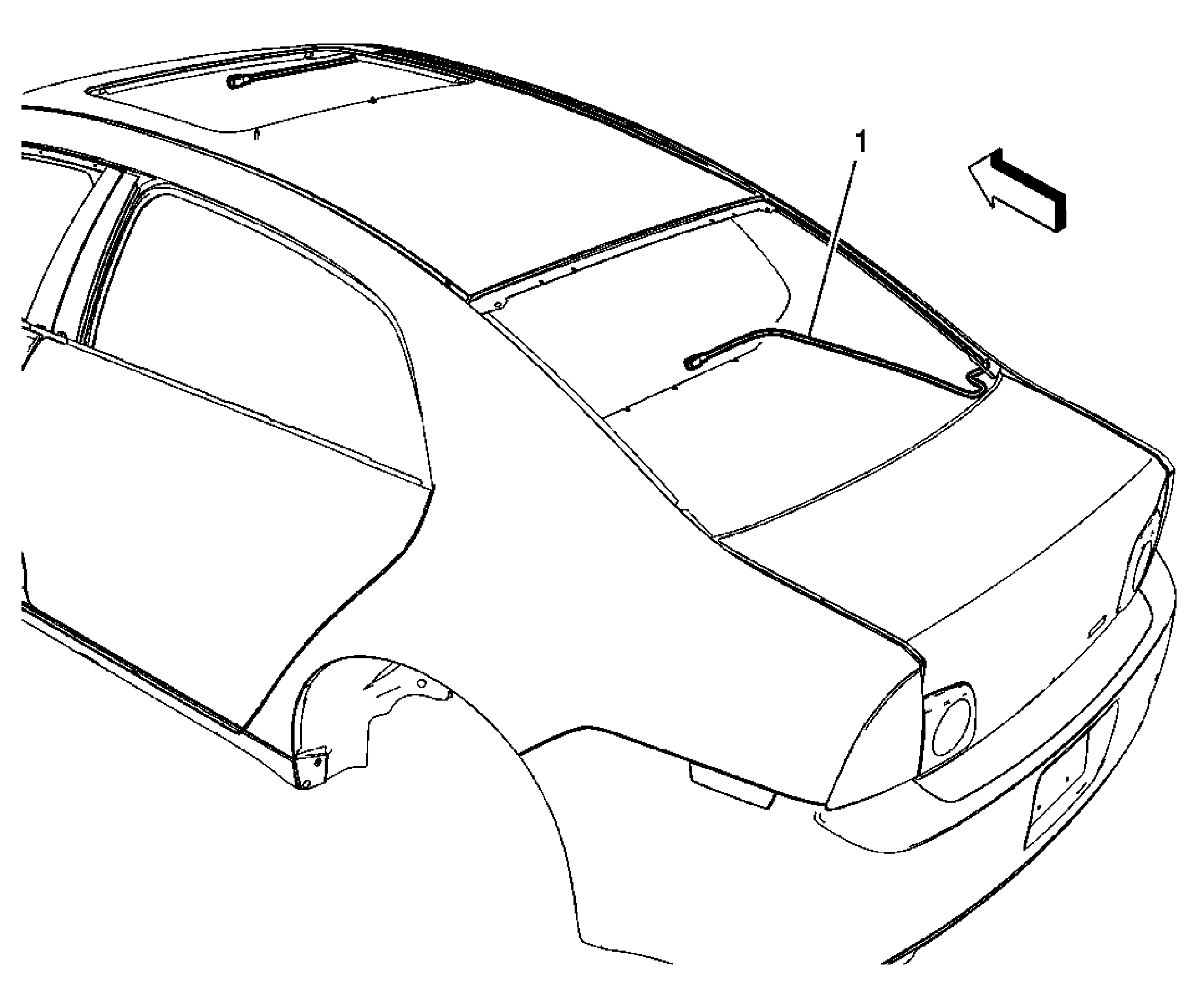

Fig 1: Locating Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) . Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Antenna Cable

Callout

Component Name

Preliminary Procedures

Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with DE1) or Headlining Trim Panel Replacement (without DE1) .
Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .

Antenna Cable
