Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

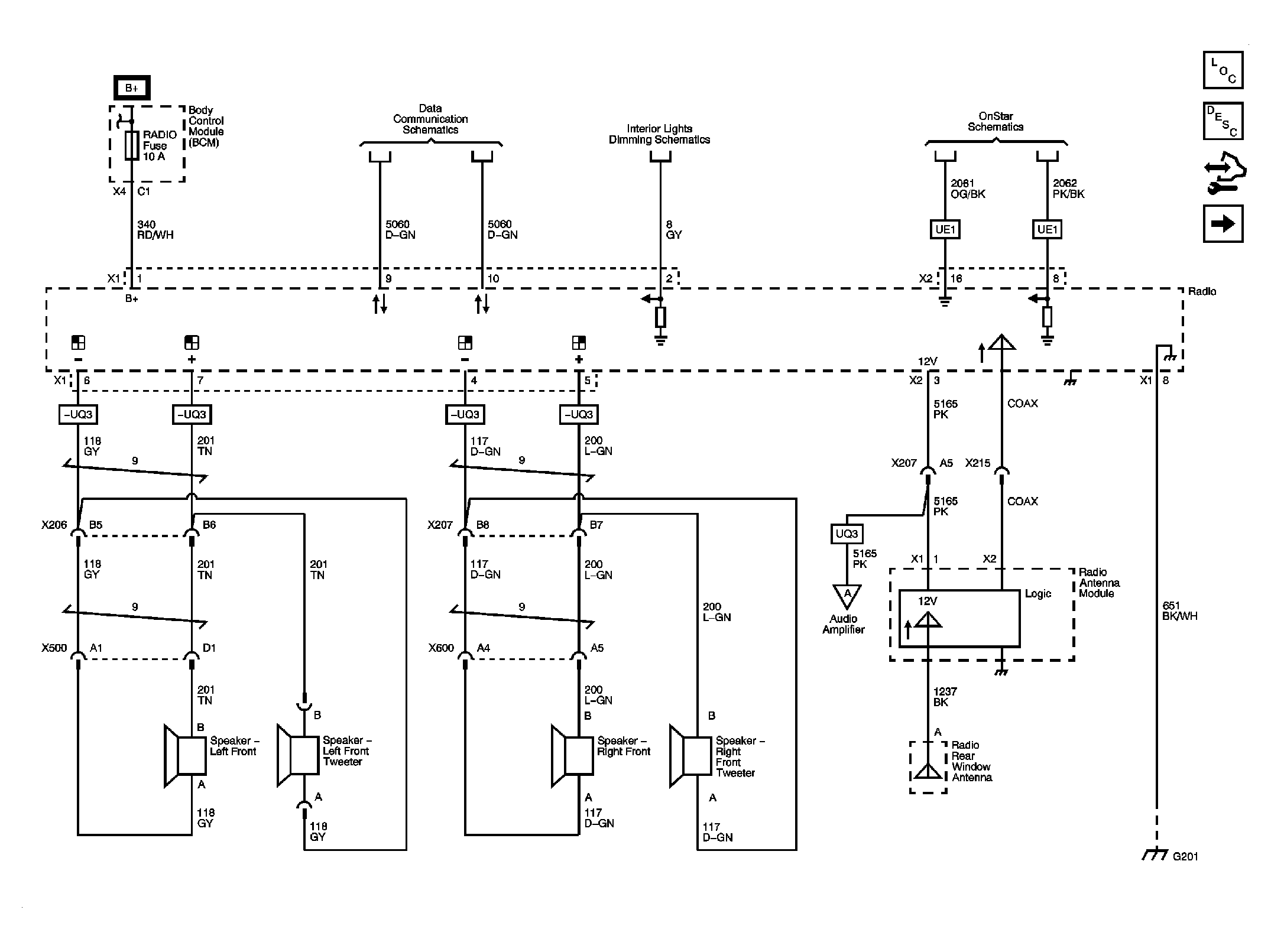

Fig 1: Power, Ground, Front Speakers, Antenna & References Schematic

GM1973196

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Speakers Schematic (-UQ3)

GM1973198

Courtesy of GENERAL MOTORS CORP.

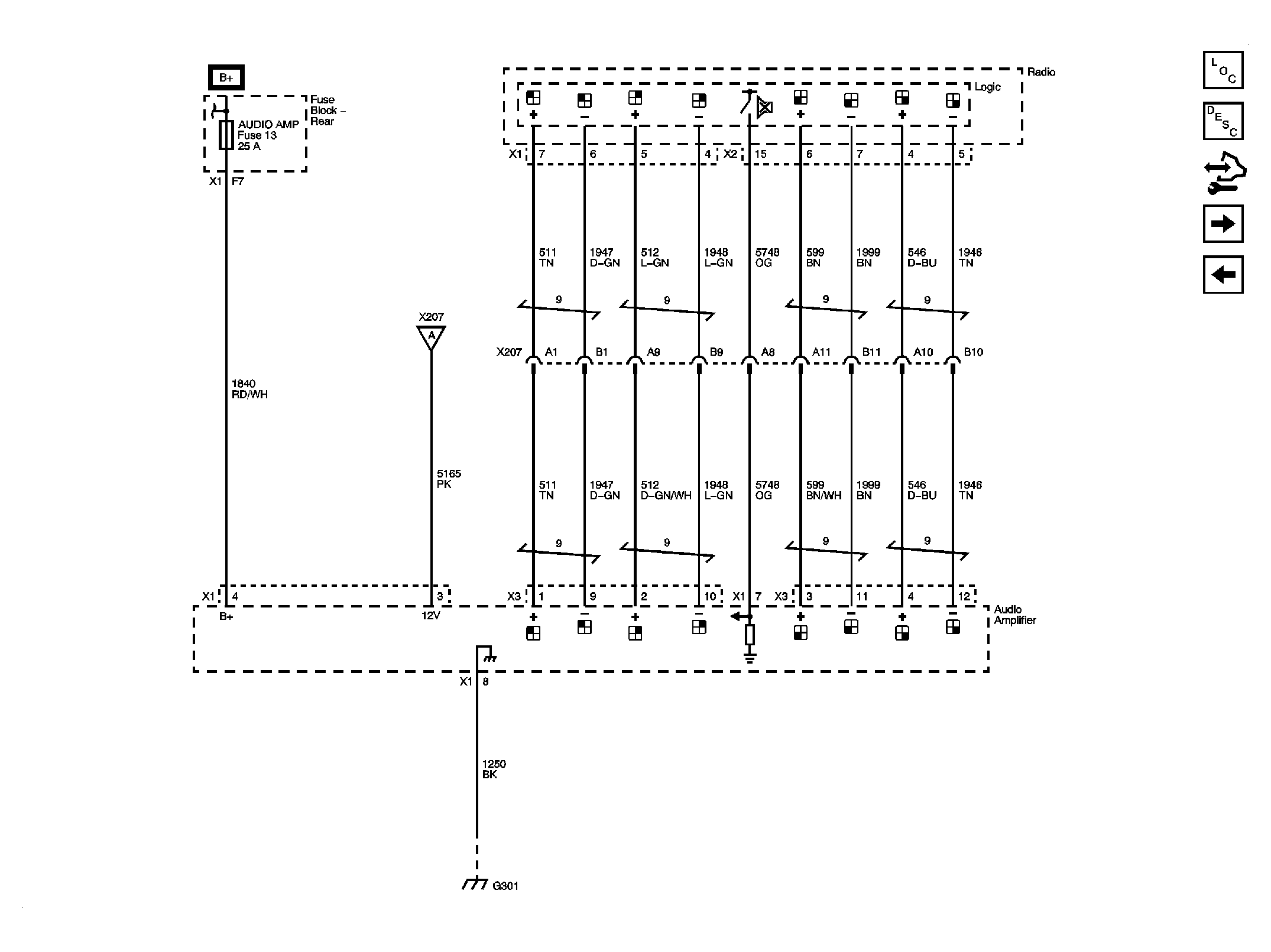

Fig 3: Amplifier Schematic (UQ3)

GM1973199

Courtesy of GENERAL MOTORS CORP.

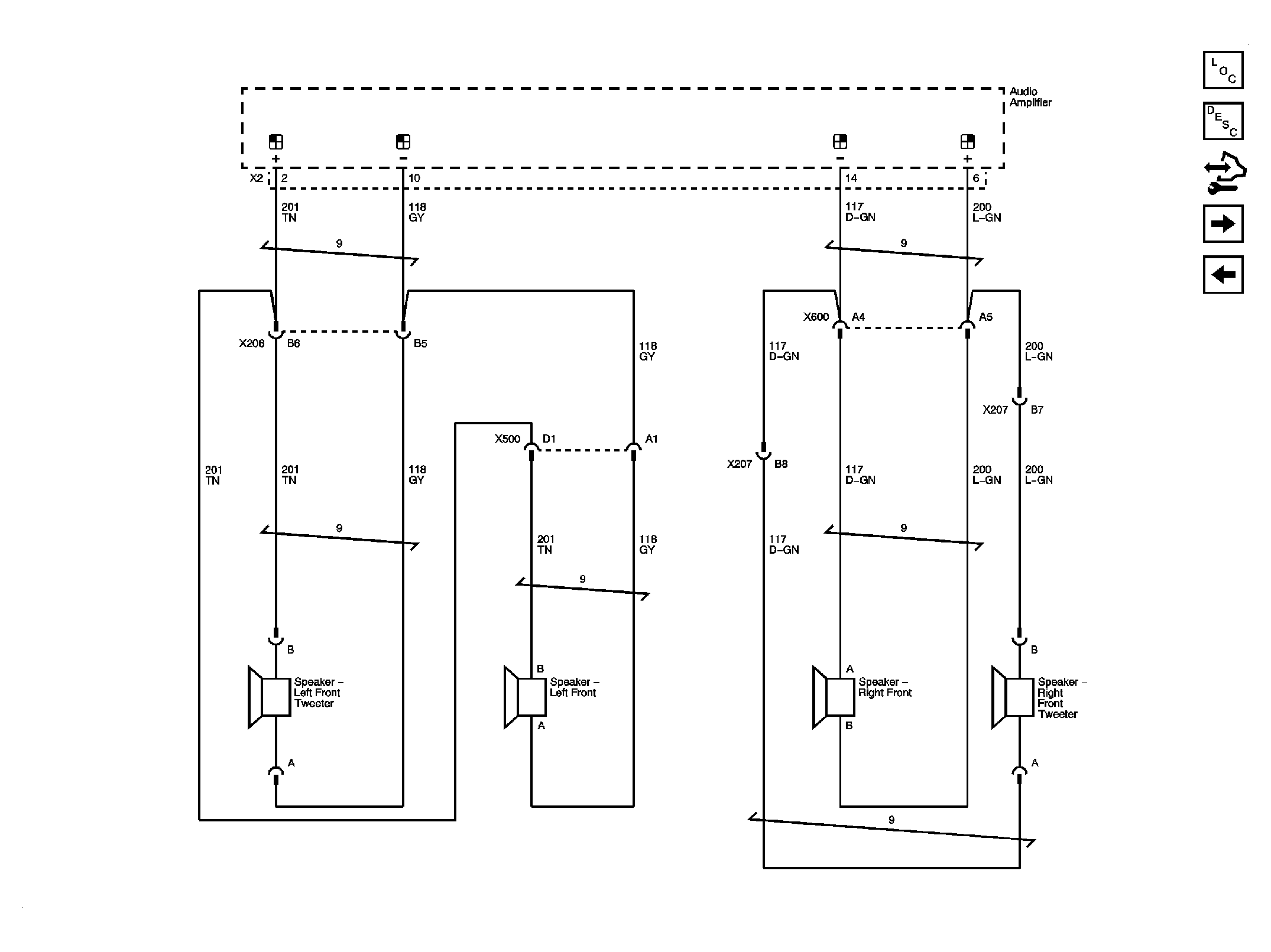

Fig 4: Front Speakers Schematic (UQ3)

GM1973201

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Speakers Schematic (UQ3)

GM1973204

Courtesy of GENERAL MOTORS CORP.

Fig 6: Digital Radio Receiver Schematic (U2K)

GM1973206

Courtesy of GENERAL MOTORS CORP.

Fig 7: Redundant Radio Controls Schematic (UK3)

GM1973207

Courtesy of GENERAL MOTORS CORP.
