Steering Wheel Inflatable Restraint Module Coil Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

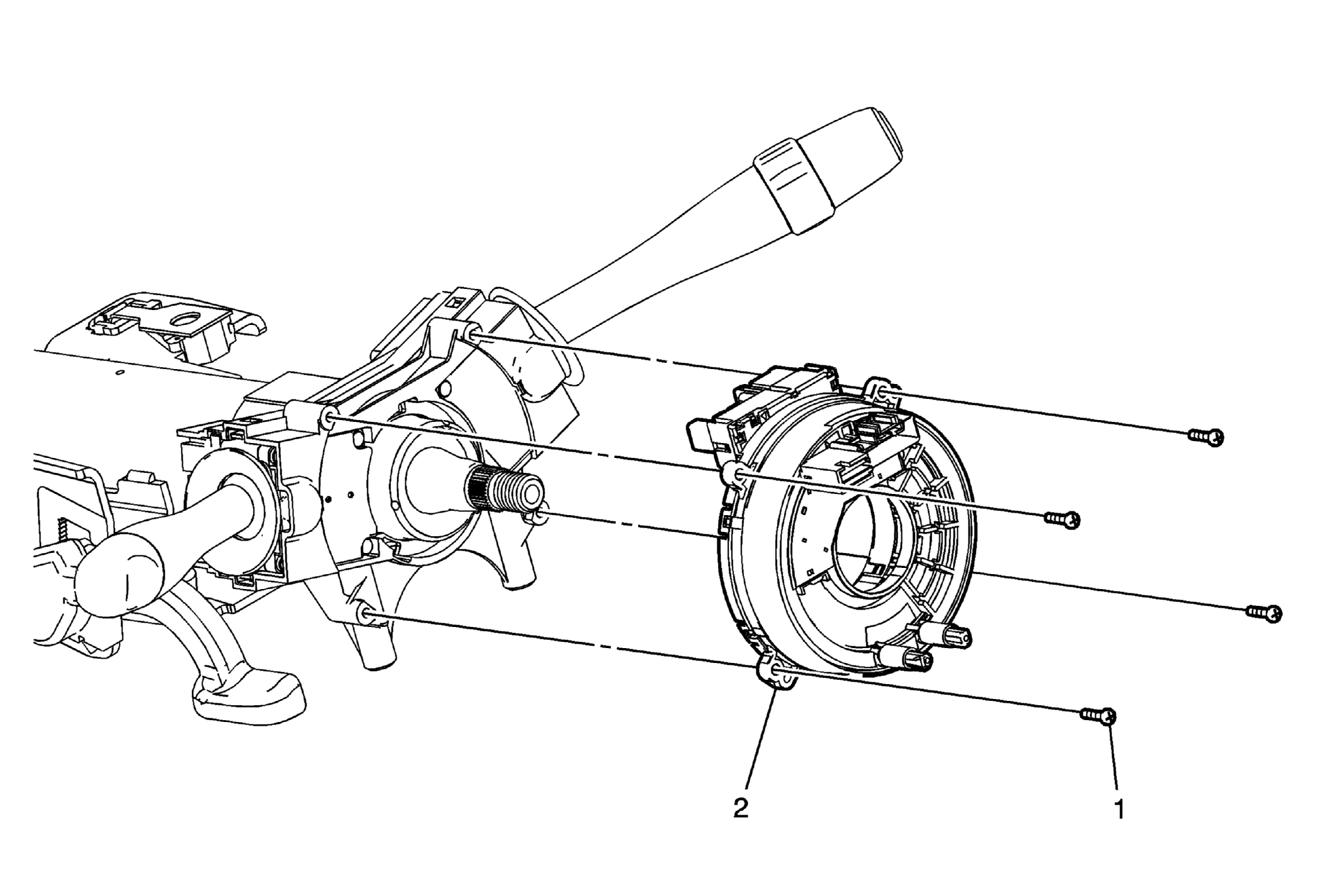

Fig 1: View Of Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Inflatable Restraint Steering Wheel Module Coil Procedure: Disconnect any electrical connectors as needed. Tips Do not remove the centering tab from a new inflatable restraint steering wheel module coil until it has been installed or re-centering will be required. If re-centering of the inflatable restraint steering wheel module coil is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Inflatable Restraint Steering Wheel Module Coil
Procedure:
Disconnect any electrical connectors as needed.

Tips

Do not remove the centering tab from a new inflatable restraint steering wheel module coil until it has been installed or re-centering will be required.
If re-centering of the inflatable restraint steering wheel module coil is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .
