Installation Procedure

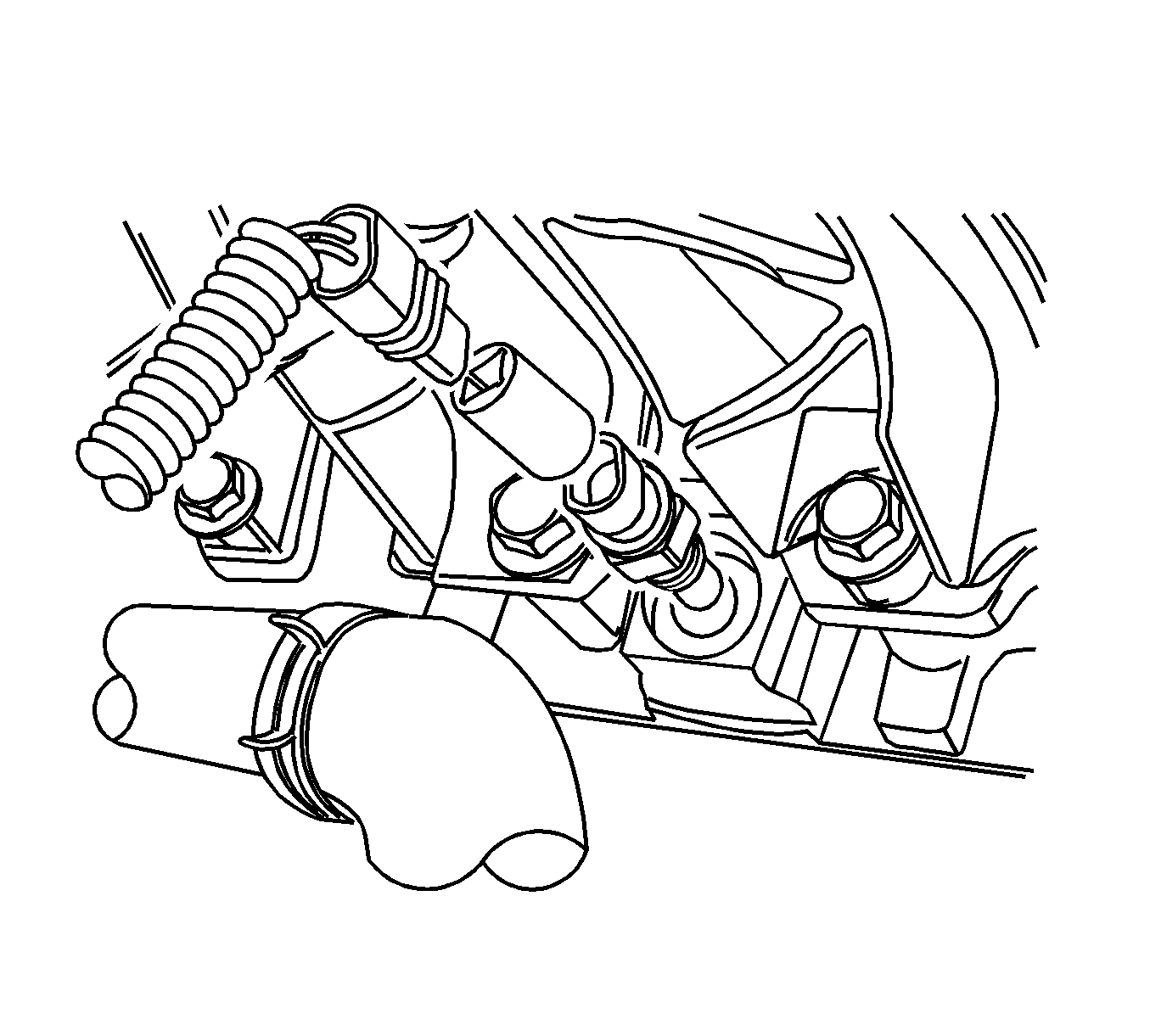

Fig 1: View Of Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the ECT sensor.
Tighten: Tighten the ECT sensor to 17.5 N.m (13 lb ft) .
Connect the ECT sensor connector.
Connect the negative battery cable.
