Removal Procedure

    Fig 1: View Of Engine Cover And Fasteners
    GM1962428Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the engine cover. Refer to Engine Cover Replacement .

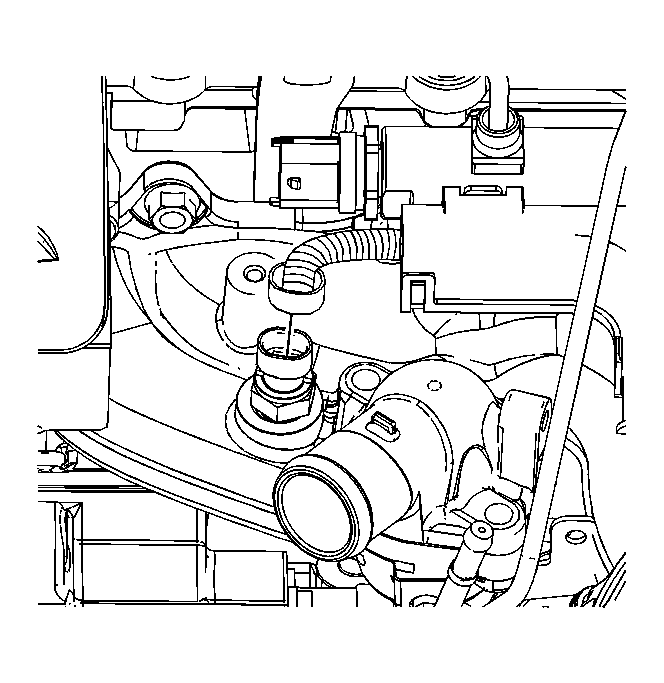

    3. Fig 2: View Of ECT Sensor And Connector
    GM1820589Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine coolant temperature (ECT) sensor connector.
  4. Remove the ECT sensor.
