Installation Procedure

    Fig 1: Identifying Fuel Filter Components
    GM1820507Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not touch the fuel filter element by hand to prevent fuel contamination.
  1. Install the fuel filter into the fuel filter housing (2).
  2. Install the fuel filter cap (4) with a new O-ring (1).
    3. NOTE: Refer to Fastener Notice .
  3. Install the fuel filter locker (5) by using EN-48303  and EN-48304  . See Special Tools .

    Tighten:  Tighten the fuel filter locker to 30 N.m (22.1 lb ft)  .

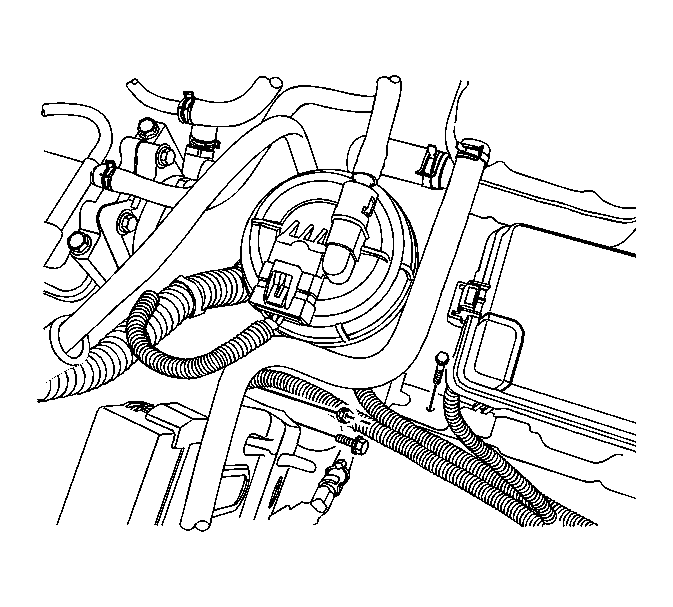

    4. Fig 2: View Of Fuel Filter Assembly, Fuel Lines, Sensor Connectors And Bracket Bolts
    GM1962937Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel filter to the bracket.
  5. Install the fuel filter bracket to the body.

    Tighten:  Tighten the fuel filter bracket retaining nut to 10 N.m (88.5 lb ft)  .

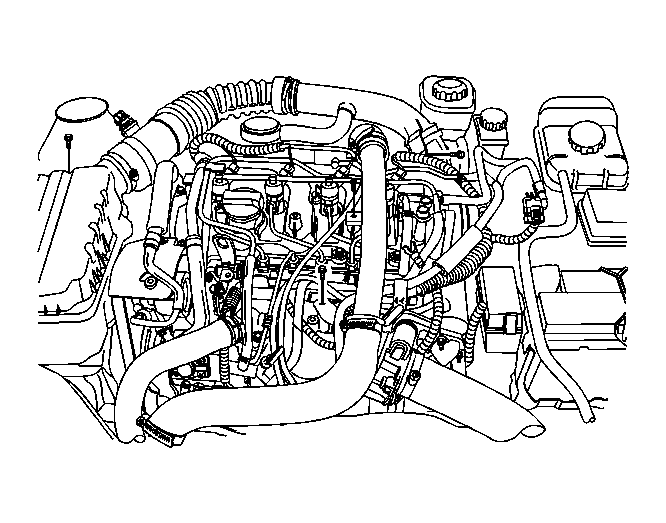

    6. Fig 3: View Of Underhood Components
    GM1962935Courtesy of GENERAL MOTORS CORP.
  6. Install the battery. Refer to Battery Replacement .
  7. Install the beauty cover. Refer to Engine Cover Replacement .
  8. Connect the negative battery cable.
