Installation Procedure

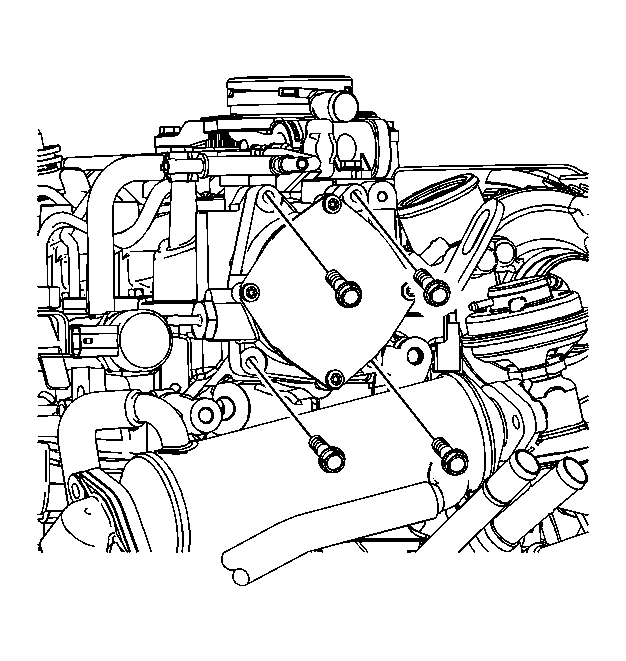

Fig 1: View Of Vacuum Pump And Tightening Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the vacuum pump.
Tighten: Tighten the vacuum pump tightening bolts to 12 N.m (8.9 lb ft) .

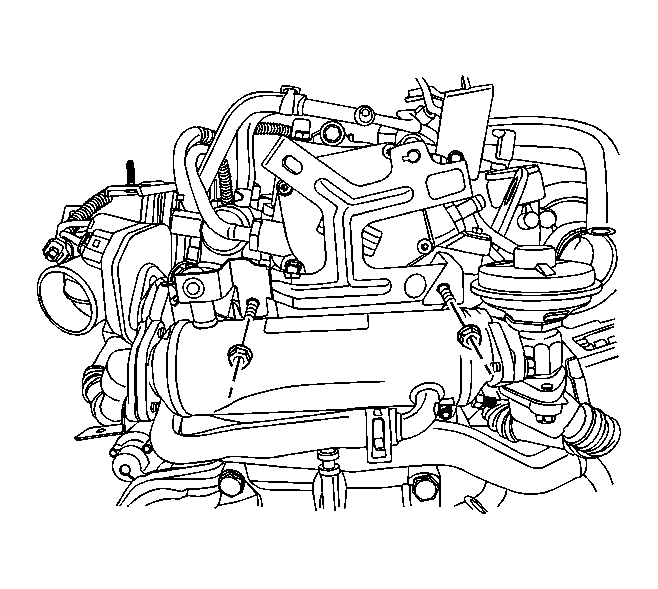

Fig 2: View Of EGR Cooler Outlet Pipe And Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the engine wiring harness bracket.
Connect the EGR and brake booster vacuum hoses.
Tighten: Tighten the engine wiring harness bracket nuts to 20 N.m (14.8 lb ft) .

Fig 3: View Of Fuel Filter Assembly, Fuel Lines, Sensor Connectors And Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the fuel filter assembly. Refer to Fuel Filter Replacement .
Install the engine cover and bracket.
Tighten: Tighten the beauty cover bracket bolts to 11 N.m (97.4 lb in) .
Connect the negative battery cable.
