Shift Lock Control Component Views

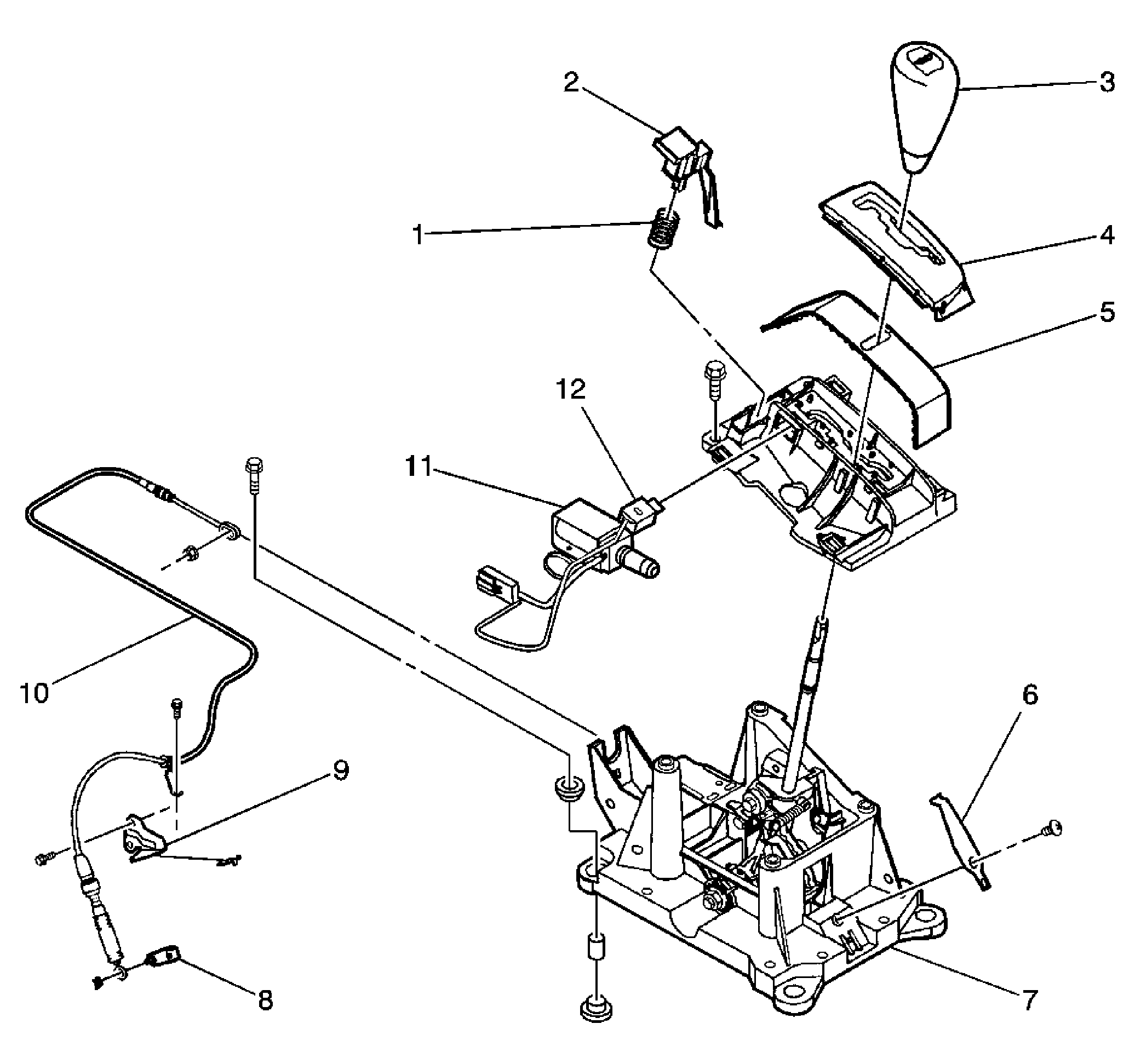

Fig 1: View Of Automatic Transmission Shift Lever Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Spring
2	BTSI Button
3	Gear Shift Knob
4	Cover
5	Step Gate Slider
6	Positioning Spring
7	Base Plate
8	T/A Lever
9	Cable Fastener
10	Select Cable
11	Automatic Transmission Shift Lock Control Solenoid
12	Park Position Switch
