Installation Procedure

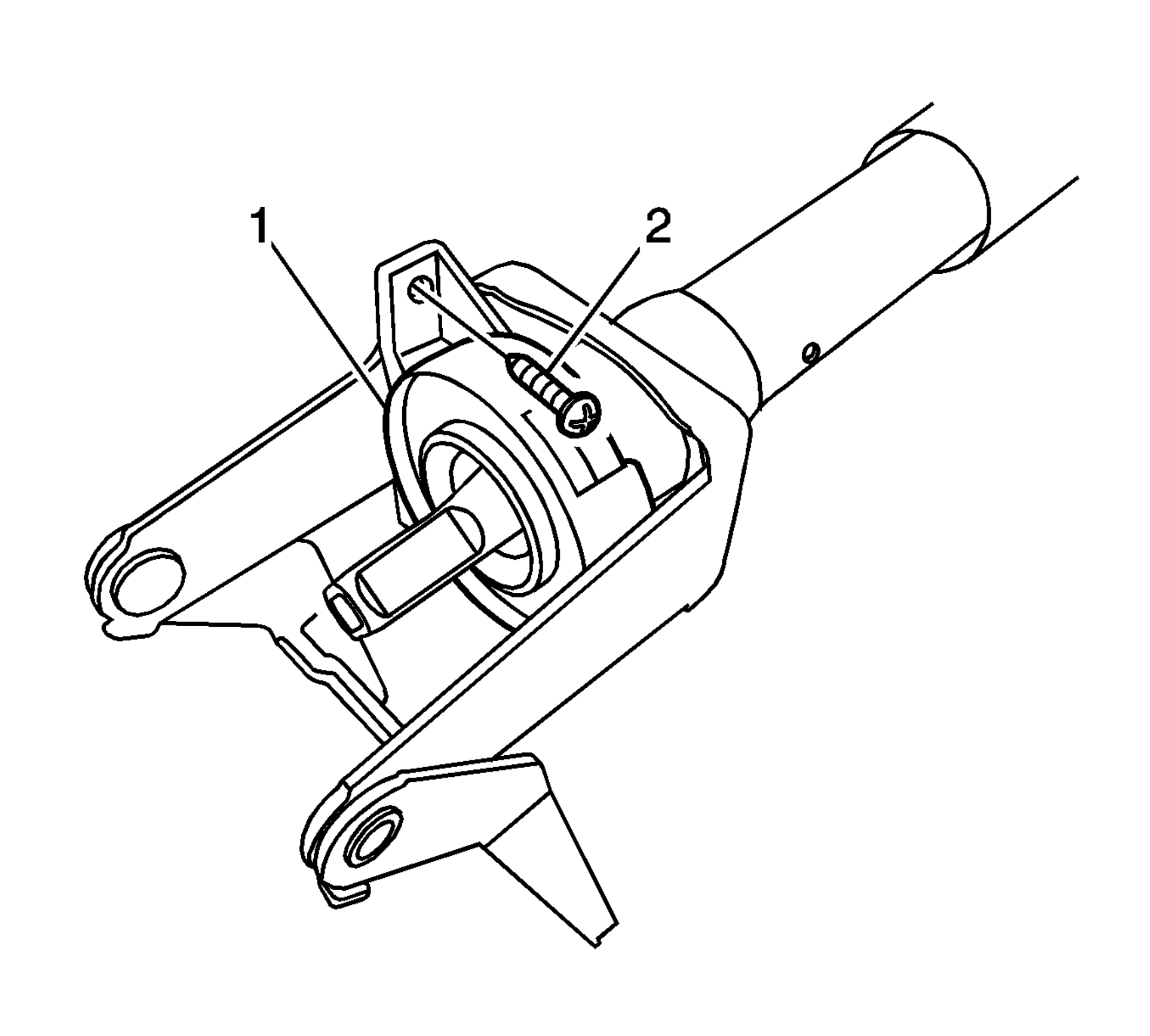

    Fig 1: Identifying Steering Wheel Position Sensor And Screw
    GM1975337Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel position sensor (1) to the steering column shaft.
    2. NOTE: Refer to Fastener Notice .
  2. Install the screw (2) to the steering wheel position sensor.

    Tighten:  Tighten the steering wheel position sensor screw to 2 N.m (18 lb in)  .

  3. Install the steering column to the vehicle. Refer to Steering Column Replacement .
    4. Fig 2: Identifying Speed Sensitive Steering Electrical Connector
    GM1975334Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (1).
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
