Suspension Control System - Automatic Level Control
›
Schematic and Routing Diagrams
›
Automatic Level Control Schematics
Automatic Level Control Schematics

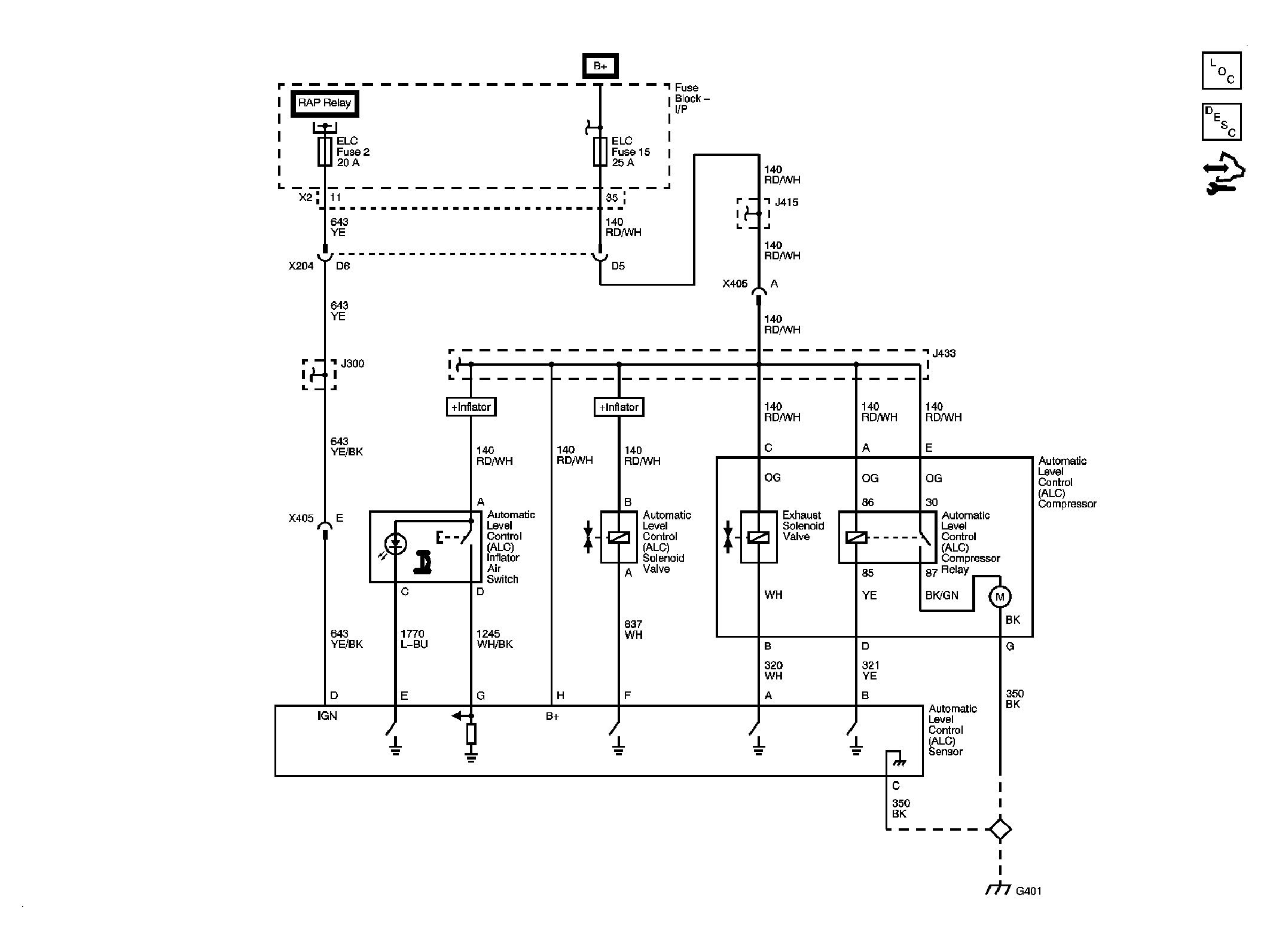

Fig 1: Automatic Level Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
