Object Detection Schematics

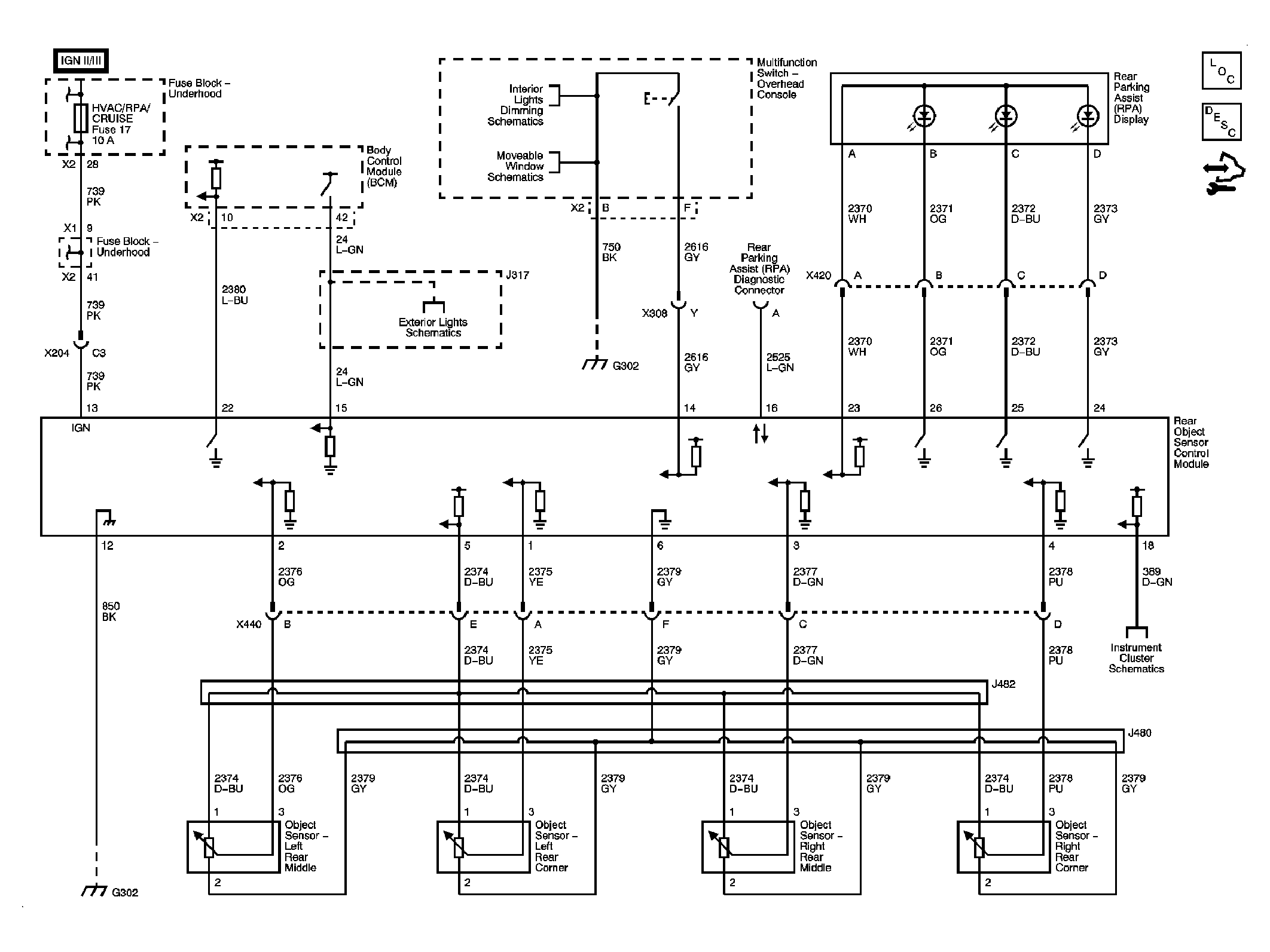

Fig 1: Object Detection Schematic
GM1921733Courtesy of GENERAL MOTORS CORP.
