Remote Function Schematics

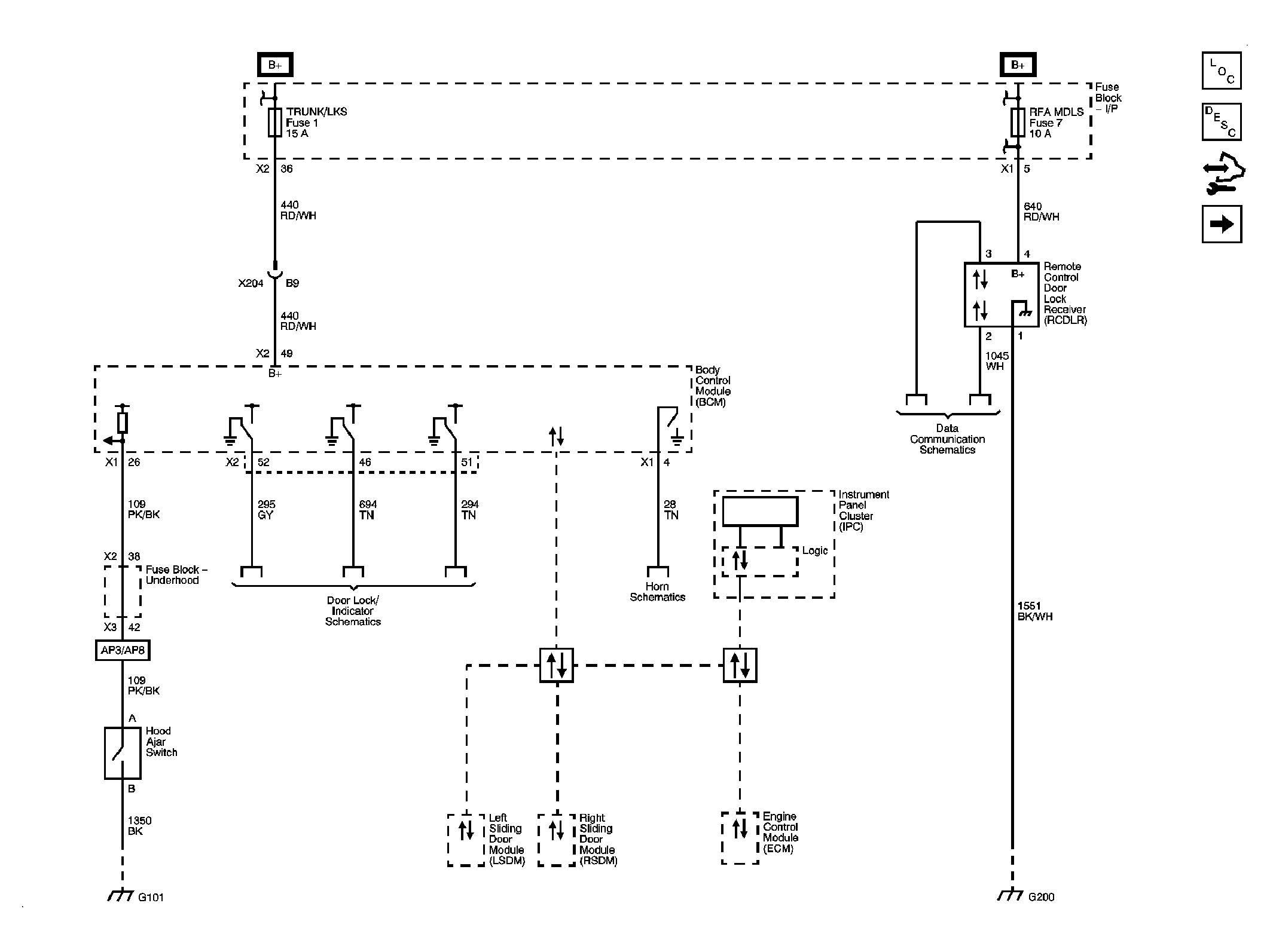

Fig 1: Keyless Entry and Remote Start
GM1921735Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener
GM1921737Courtesy of GENERAL MOTORS CORP.
