Remote Function Schematics

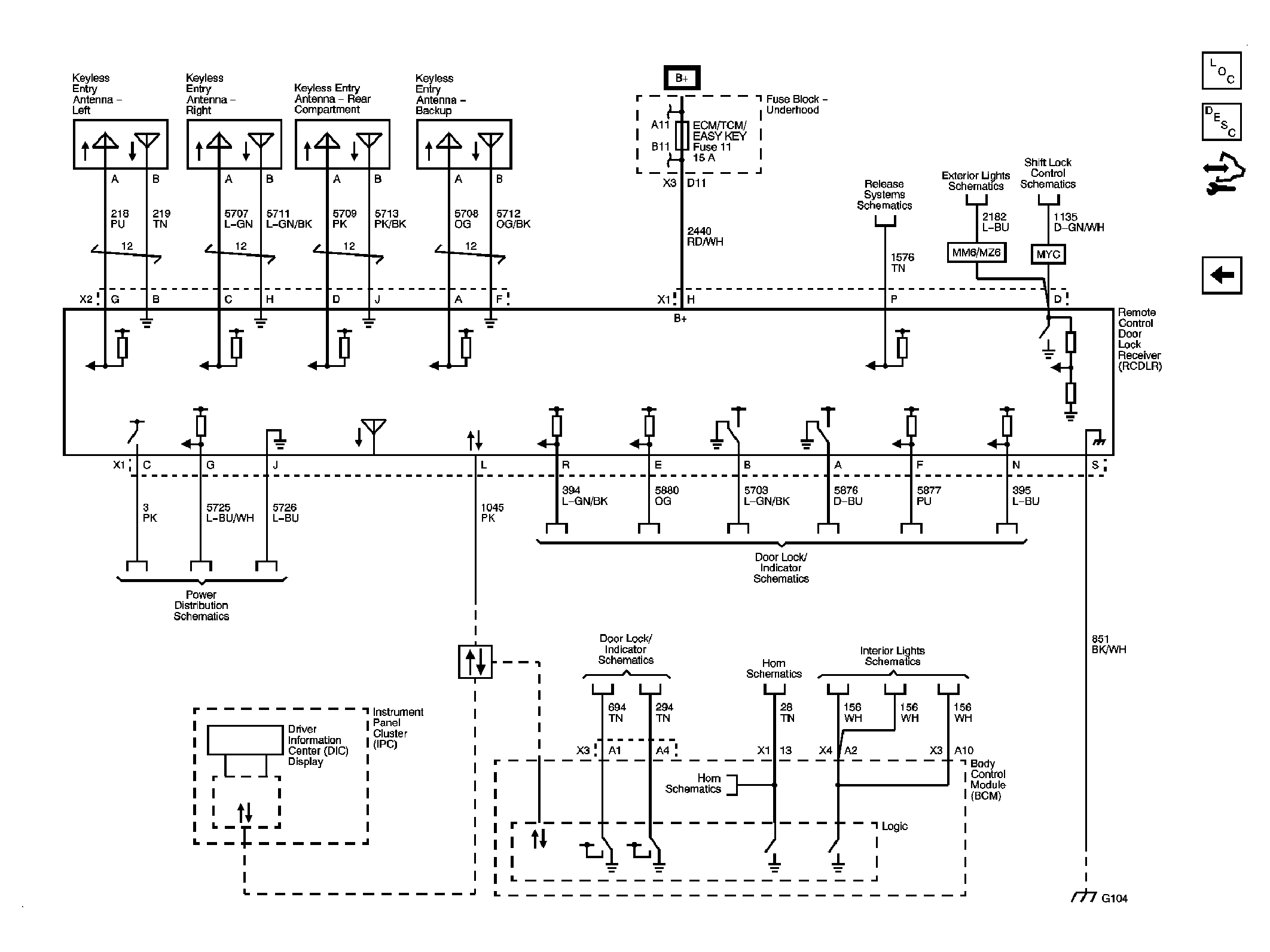

Fig 1: Keyless Entry Circuit Schematic
GM2053793Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener Circuit Schematic
GM2053795Courtesy of GENERAL MOTORS CORP.
