Moveable Window Schematics

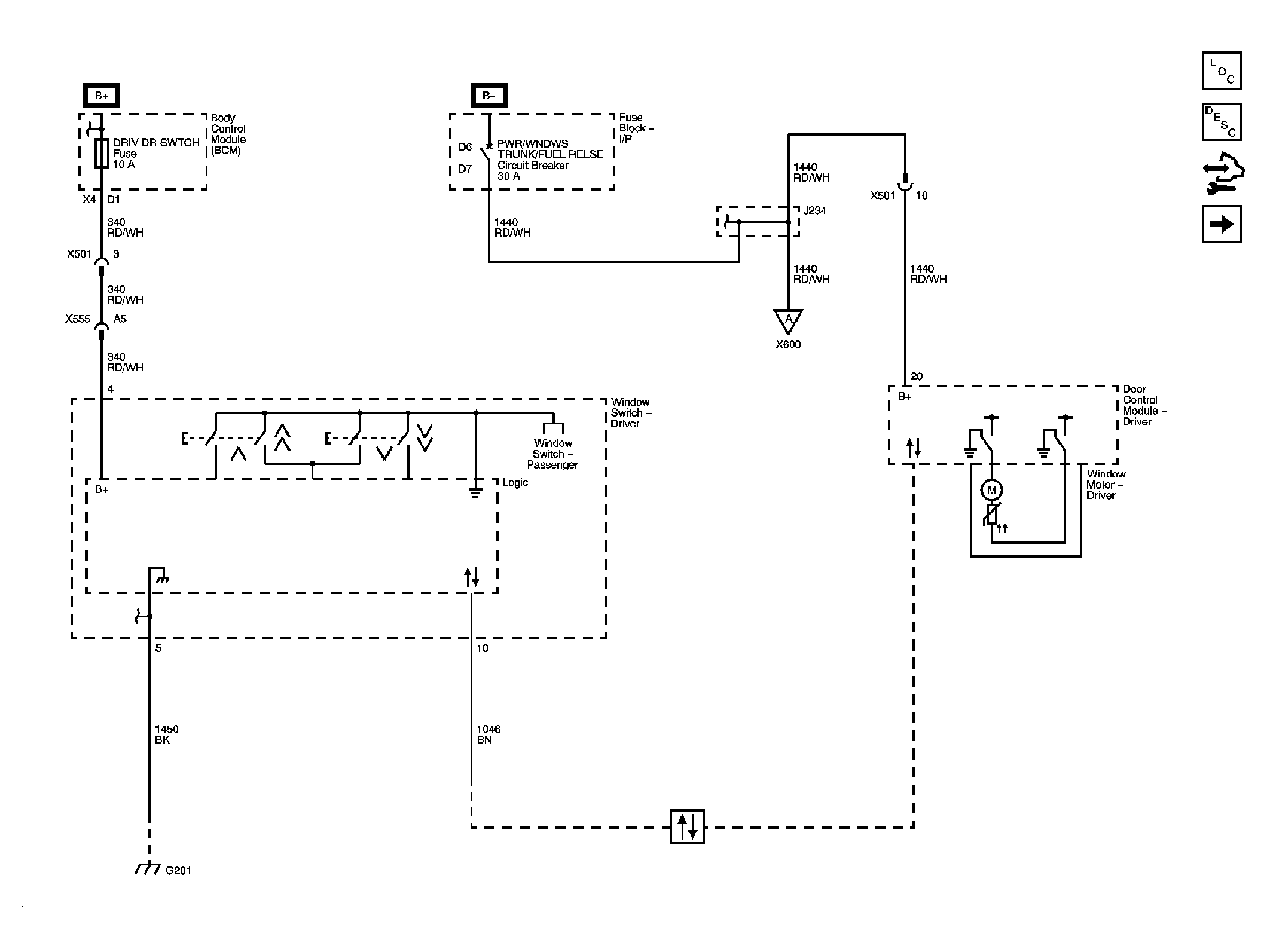

Fig 1: Driver Moveable Window Circuit Schematic
GM2053943Courtesy of GENERAL MOTORS CORP.
Fig 2: Passenger Moveable Window Circuit Schematic
GM2053946Courtesy of GENERAL MOTORS CORP.
