Body Control System Schematics

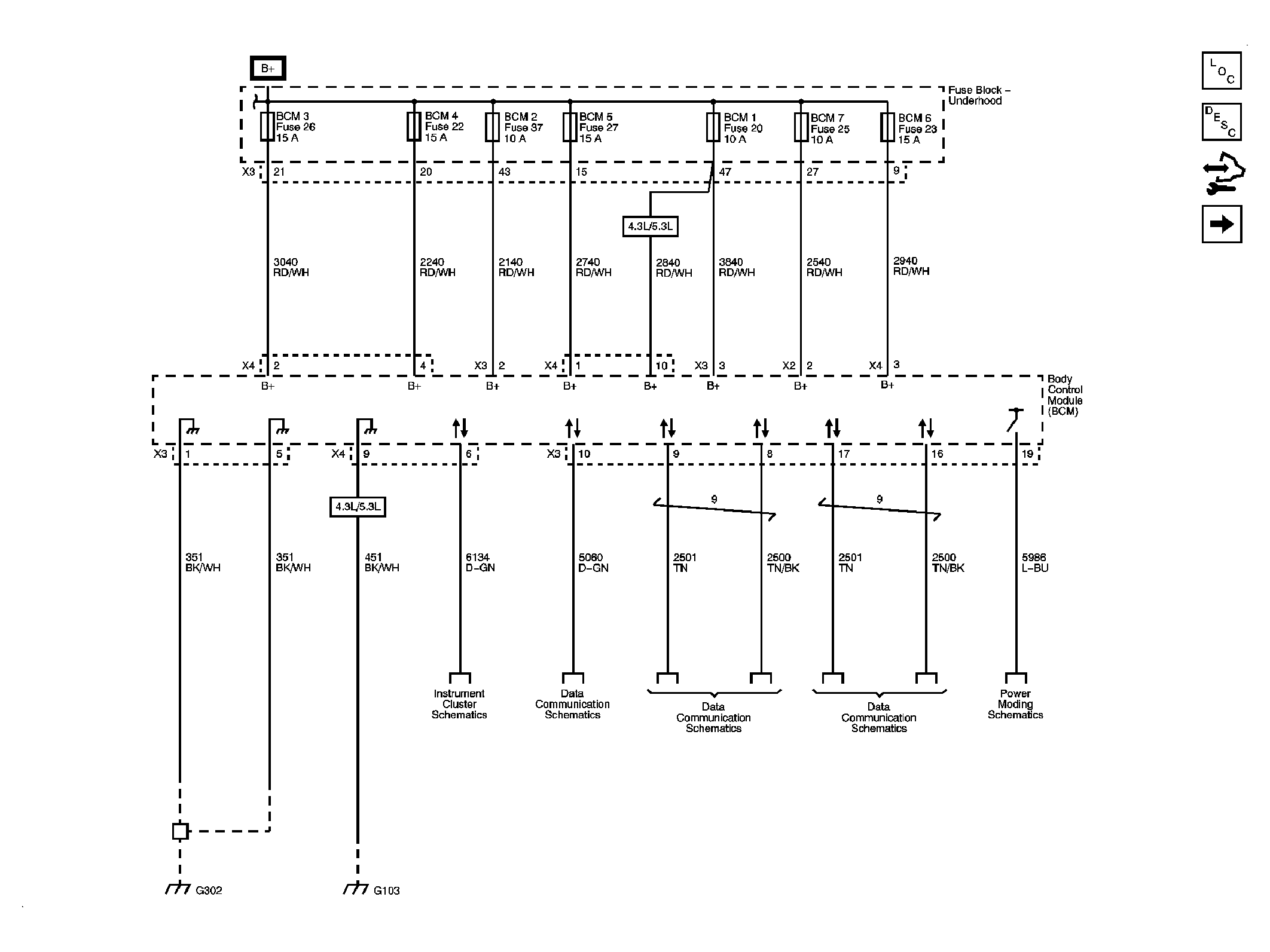

Fig 1: BCM Power, Ground and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

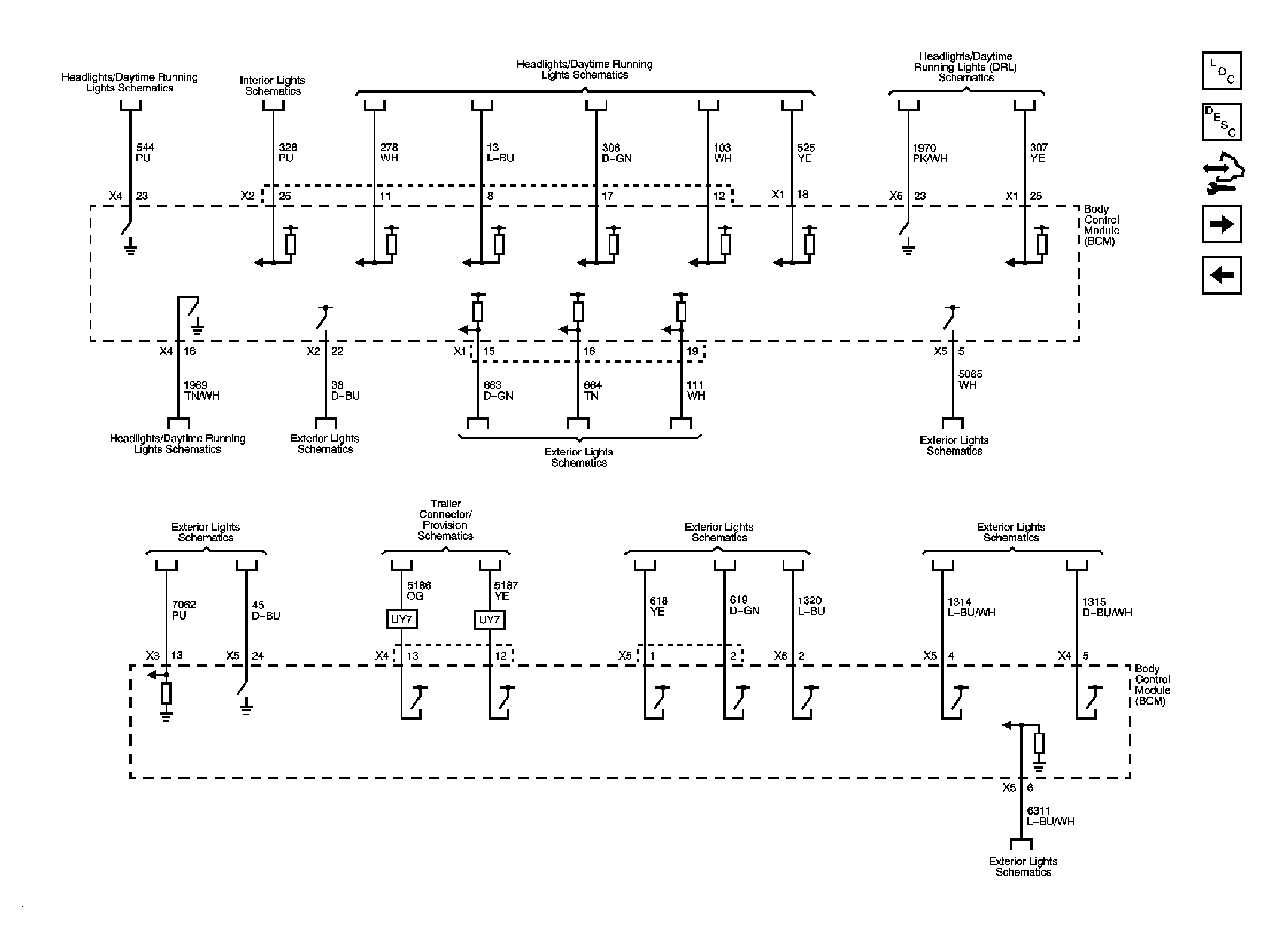

Fig 2: BCM Inputs and Outputs Schematic (1 of 4)

Courtesy of GENERAL MOTORS CORP.

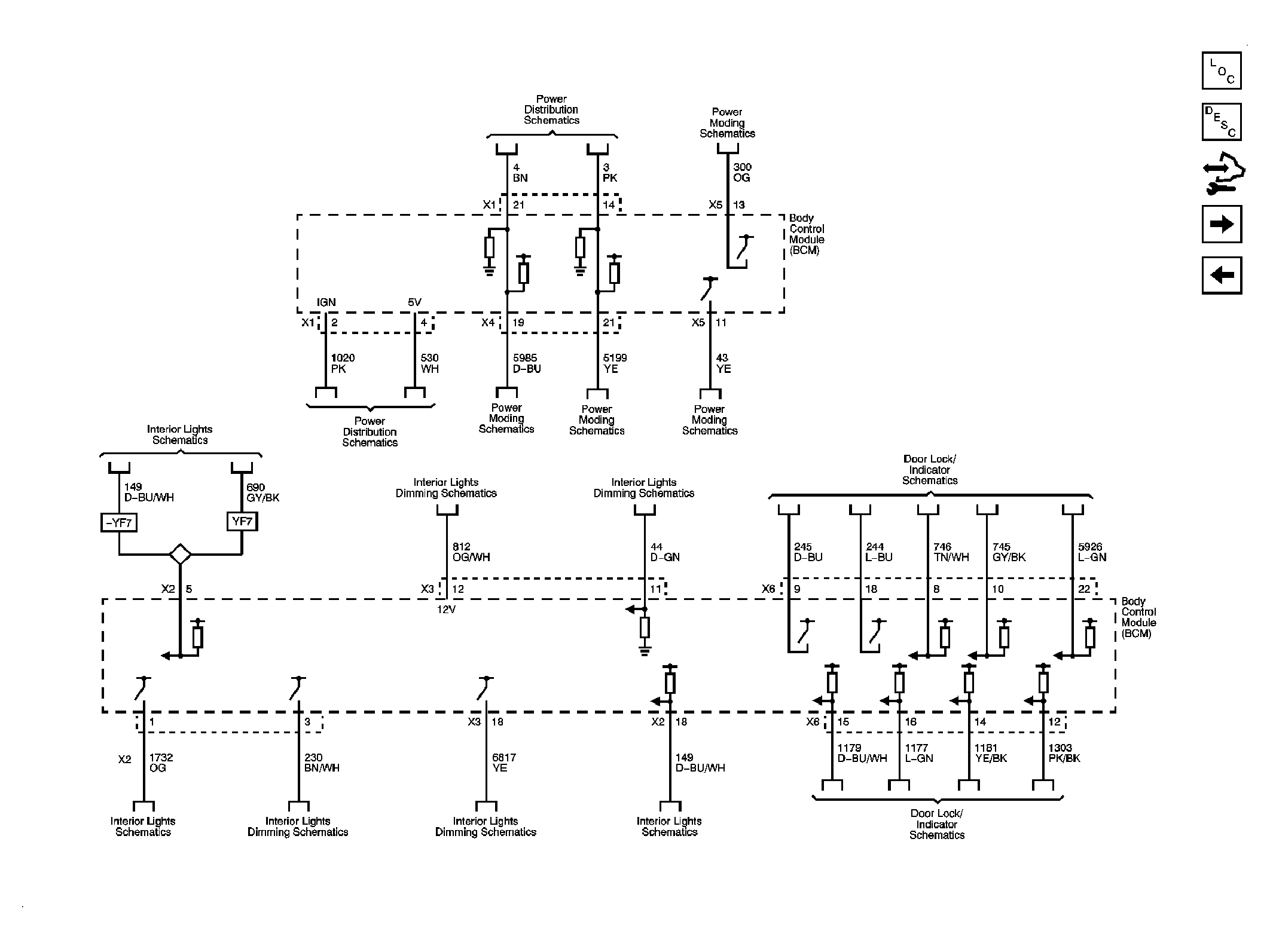

Fig 3: BCM Inputs and Outputs Schematic (2 of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: BCM Inputs and Outputs Schematic (3 of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 5: BCM Inputs and Outputs Schematic (4 of 4)

Courtesy of GENERAL MOTORS CORP.
