Power Mirror Switch Replacement

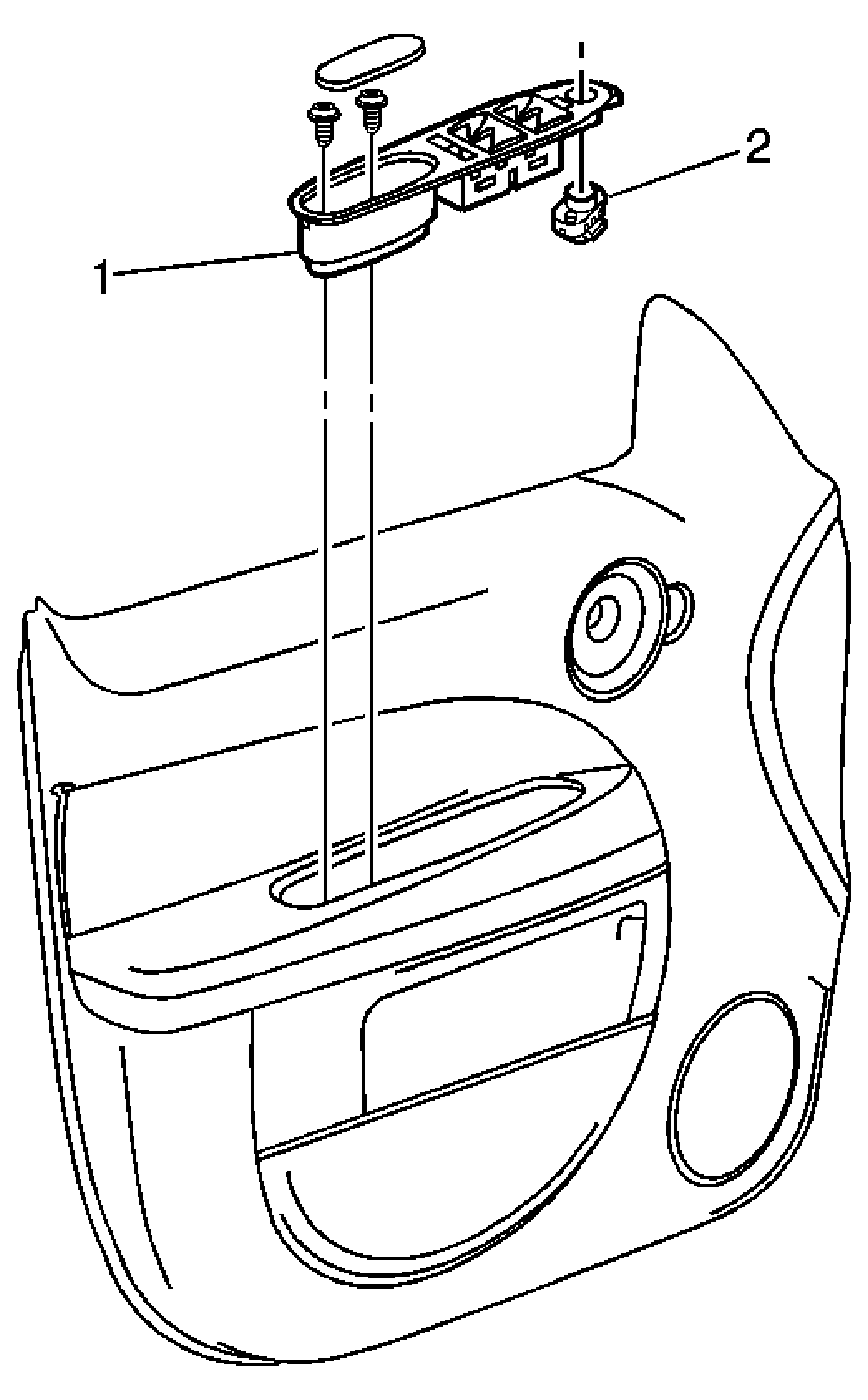

Fig 1: Identifying Power Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Armrest Pull Cup Refer to Armrest Pull Cup Replacement .
2	Outside Rearview Mirror Switch Tip:  Disconnect the electrical connector and remove from the armrest pull cup.
