Power Steering Schematics

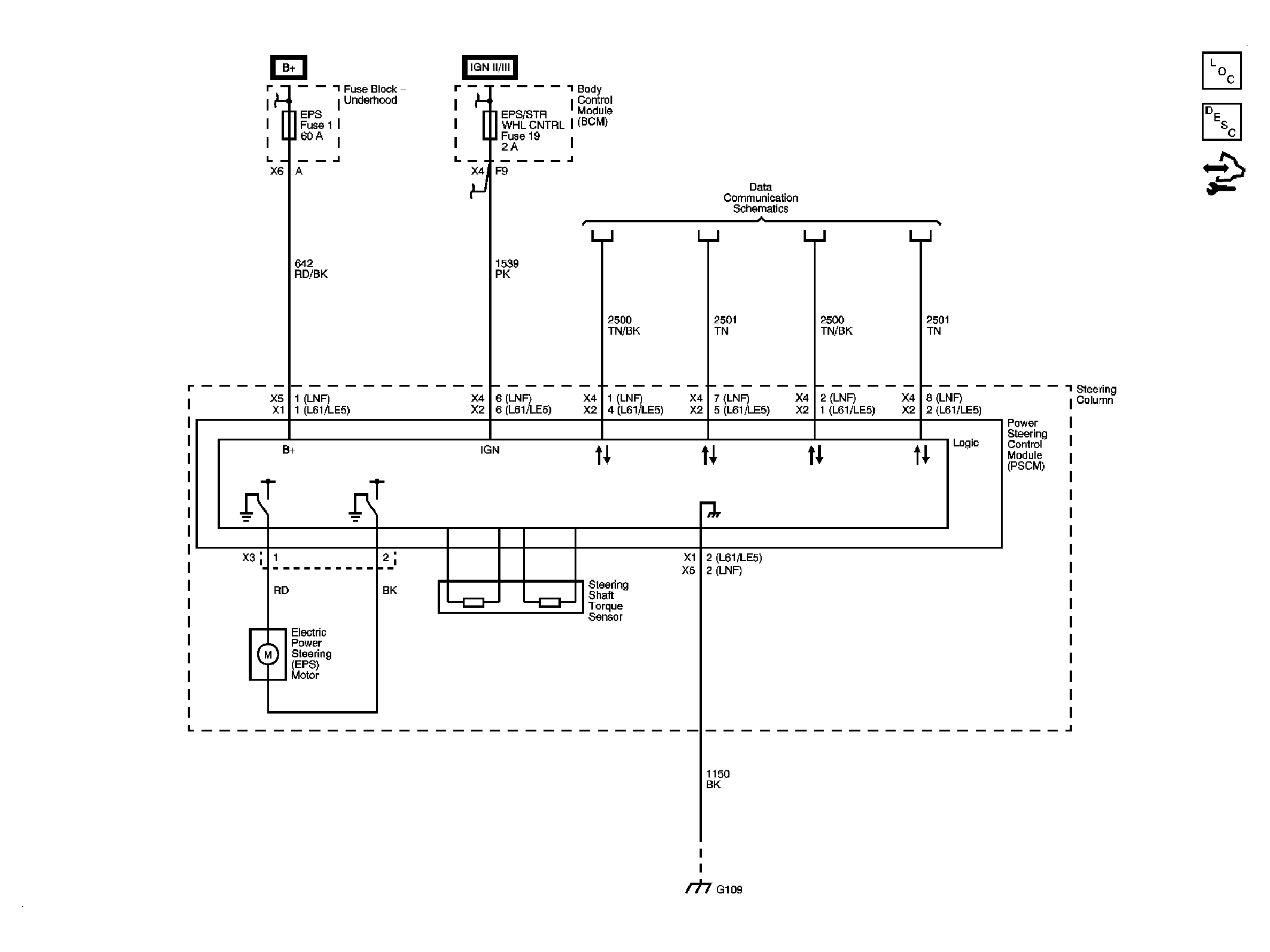

Fig 1: Power Steering Circuit Schematic (L61/LE5)
GM2085158Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Steering Circuit Schematic (LNF)
GM2085445Courtesy of GENERAL MOTORS CORP.
