Moveable Window Schematics

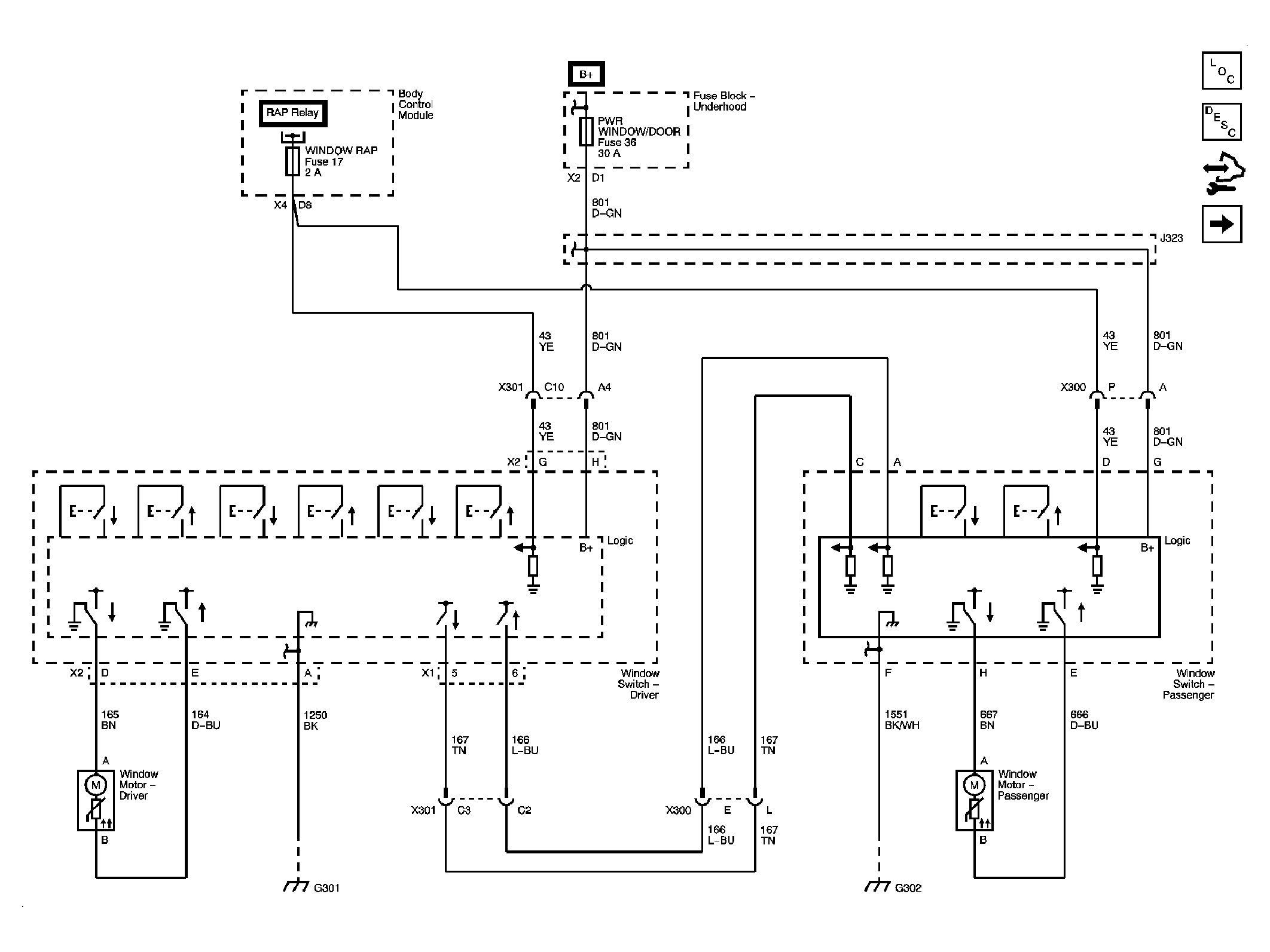

Fig 1: Front Moveable Window Circuit Schematic
GM2094761Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Moveable Window Circuit Schematic
GM2094766Courtesy of GENERAL MOTORS CORP.
