Recirculation Actuator Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

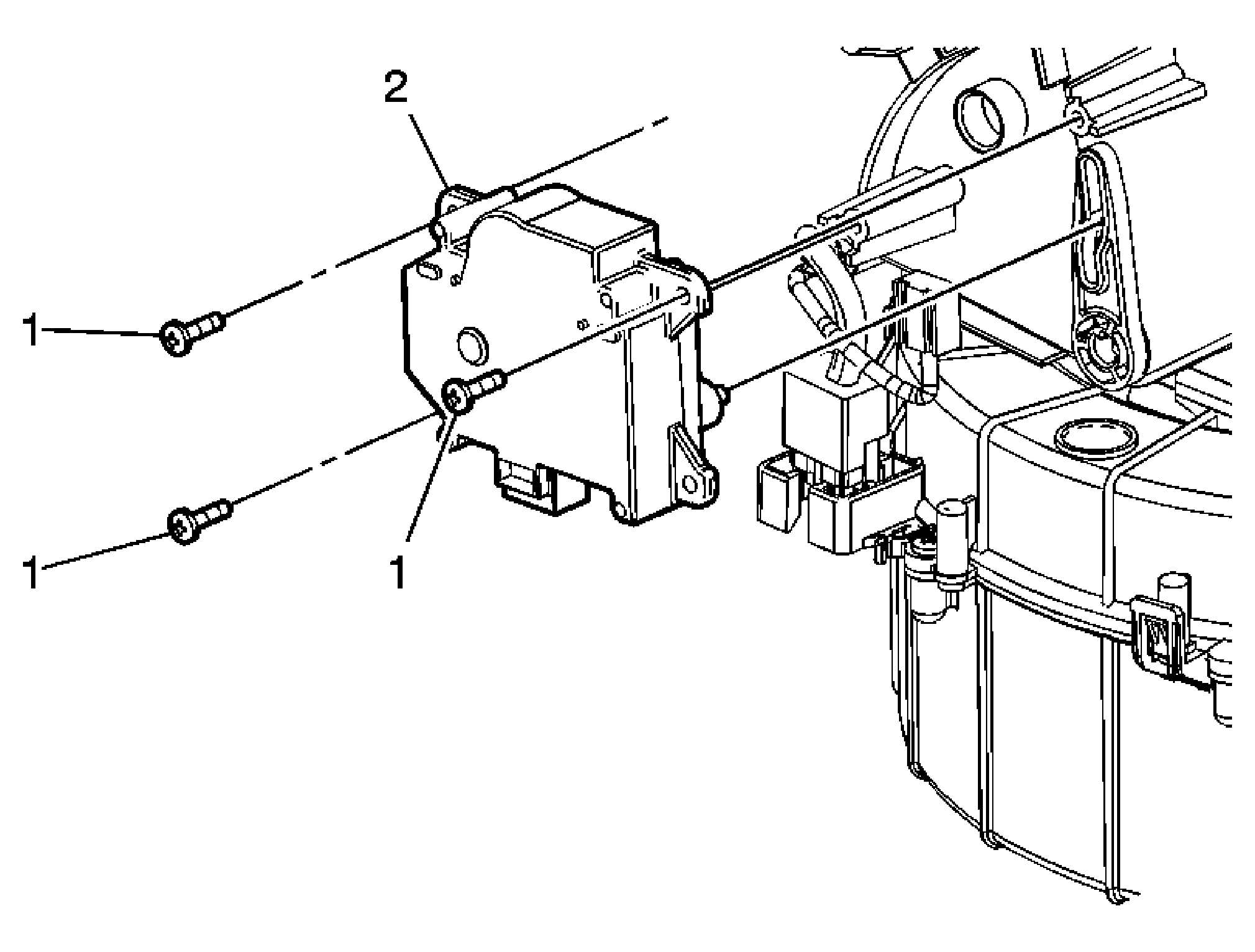

Fig 1: View Of Recirculation Actuator & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the HVAC module. Refer to HVAC Module Assembly Replacement . Disconnect the recirculation actuator electrical connector.
1	Recirculation Actuator Screw (Qty: 3) Tighten: 1.0 N.m (9 lb in)
2	Recirculation Actuator

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
Disconnect the recirculation actuator electrical connector.

Recirculation Actuator Screw (Qty: 3)

Tighten: 1.0 N.m (9 lb in)

Recirculation Actuator
