Power Moding Schematics

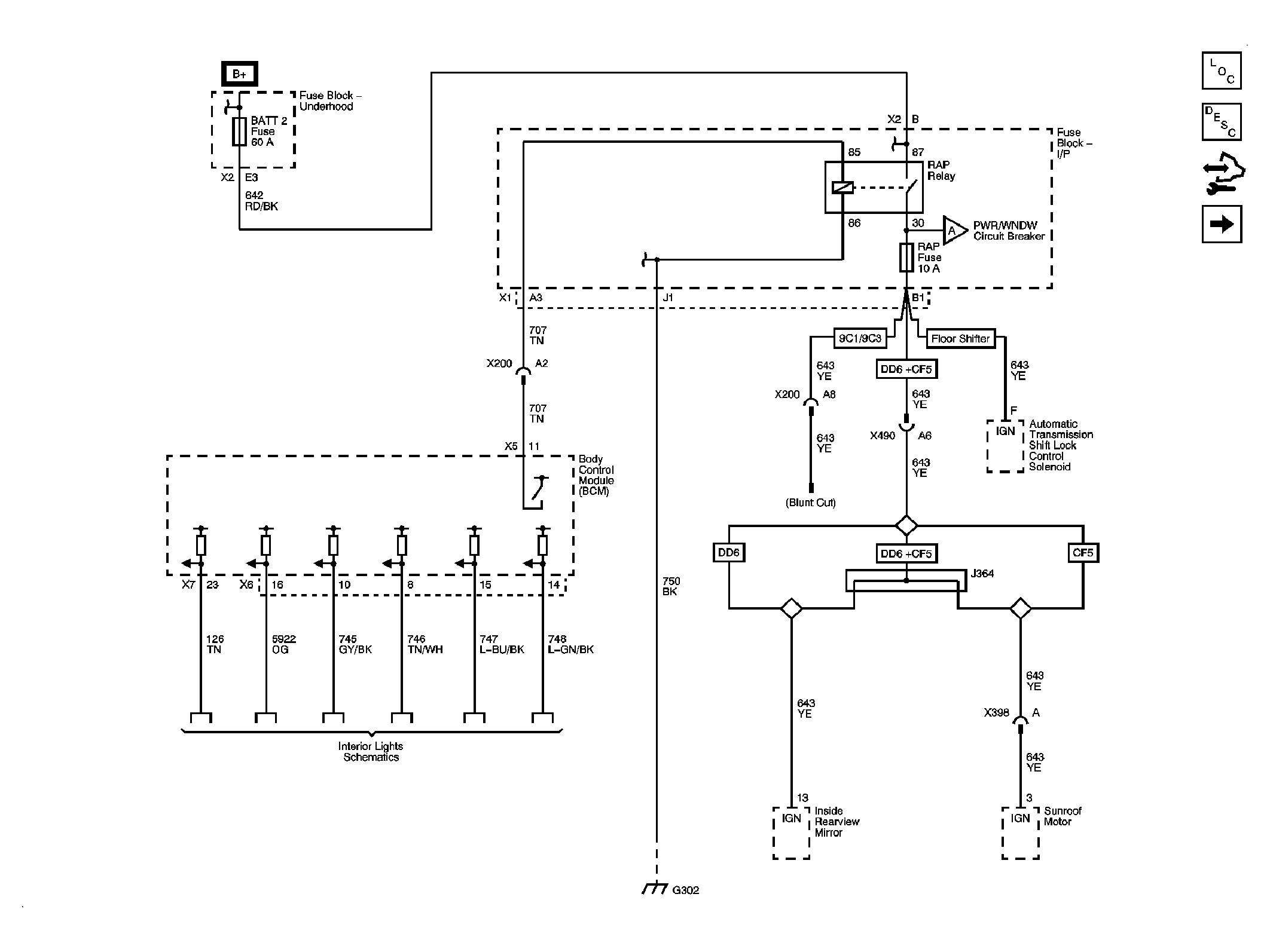

Fig 1: Retained Accessory Power - RAP Fuse Circuits Schematic
GM2080625Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Window Circuits Schematic
GM2080627Courtesy of GENERAL MOTORS CORP.
