Driver or Passenger Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

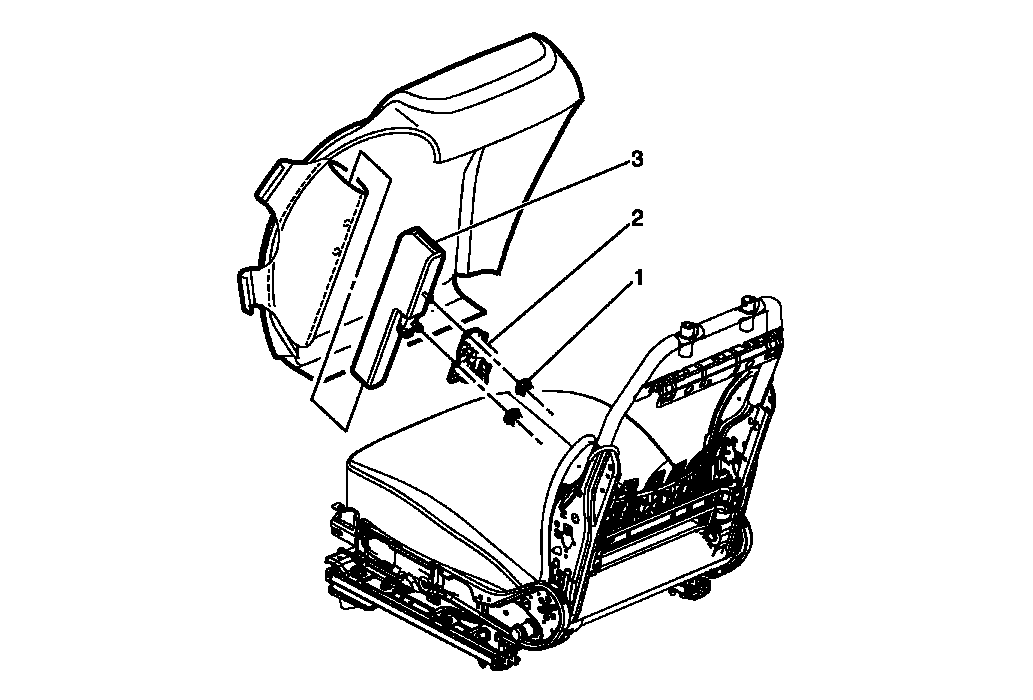

Fig 1: Identifying Driver Or Passenger Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1	Inflatable Restraint Front Seat Side Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Inflatable Restraint Front Seat Side Module Bracket
3	Inflatable Restraint Front Seat Side Module Procedure Remove the module from the seat trim cover chute. When installing the airbag module into the seat trim cover chute, ensure there is no twisting of the chute by fitting the module studs through the chute holes for proper alignment. Install the module bracket nuts and secure to specs. Note the routing of the inflatable restraint electrical cable for installation. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
