Outside Rearview Mirror Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Outside Rearview Mirror Replacement

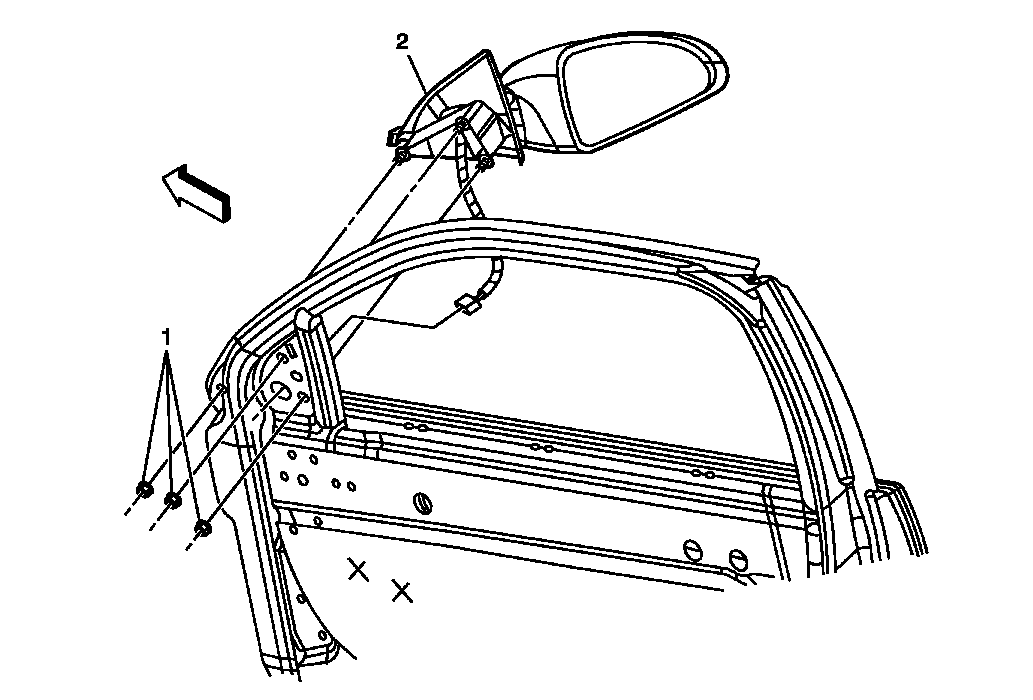

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Outside Rearview Mirror Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the mirror electrical connector. Tighten 10 N.m (89 lb in) |
| 2 | Outside Rearview Mirror Assembly TIP: The mirror assembly must be ordered and assembled prior to being installed to the vehicle. |
