Daytime Running Lamps (DRL) Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

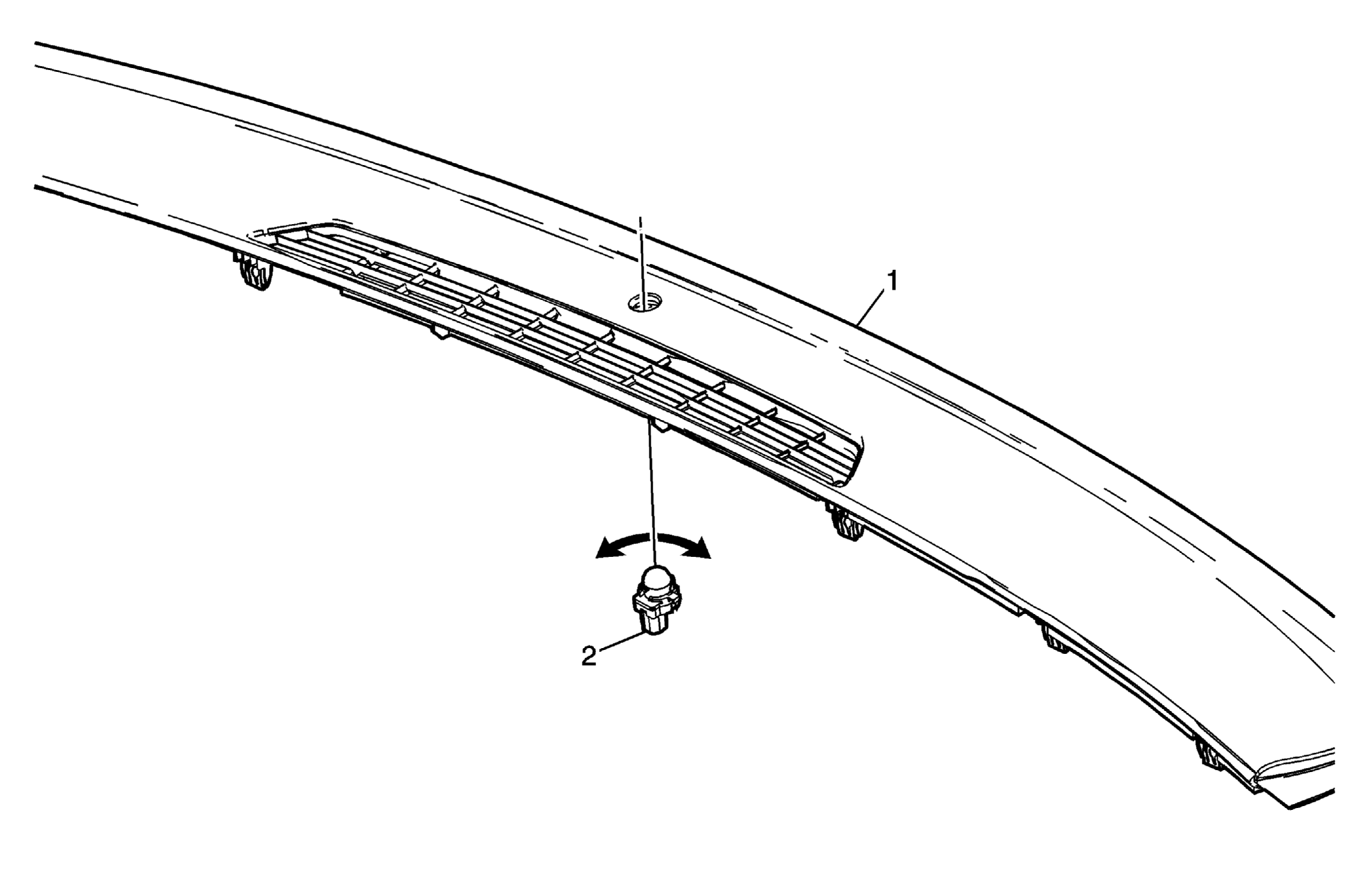

Fig 1: Replacing Daytime Running Lamps (DRL) Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Trim Panel, Instrument Panel Upper Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper .
2	Sensor Assembly, Ambient Light
