Removal Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlamp Flasher Components

Courtesy of GENERAL MOTORS CORP.

Remove the upper radiator baffle. Refer to Radiator Air Baffle and Deflector Replacement - Upper in Engine Cooling.
Disconnect the electrical connectors.
Remove the headlamp flasher bolts at the front radiator support (2).

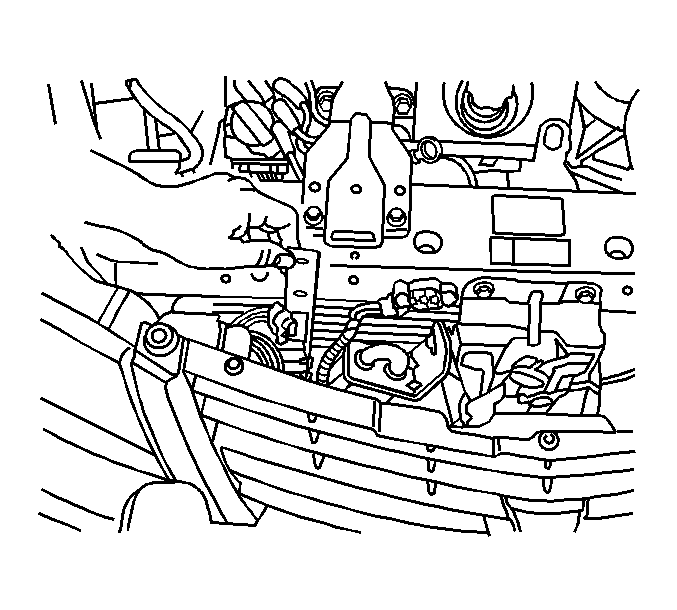

Fig 2: Removing Headlight Flasher

Courtesy of GENERAL MOTORS CORP.

Remove the headlamp flasher.
