Cruise Control Schematics

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

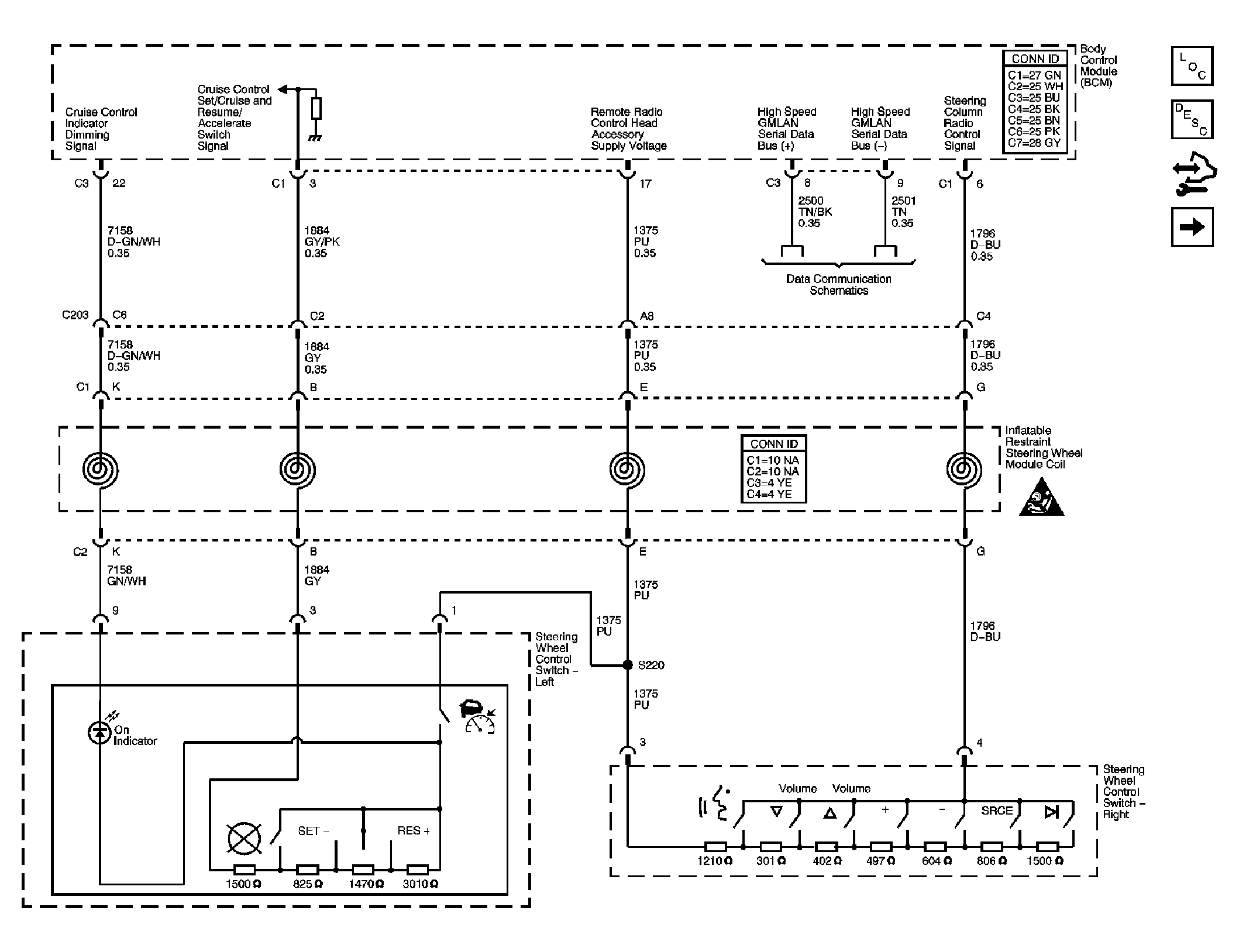

Fig 1: Cruise Control ON/OFF Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data Wake Up

Courtesy of GENERAL MOTORS CORP.

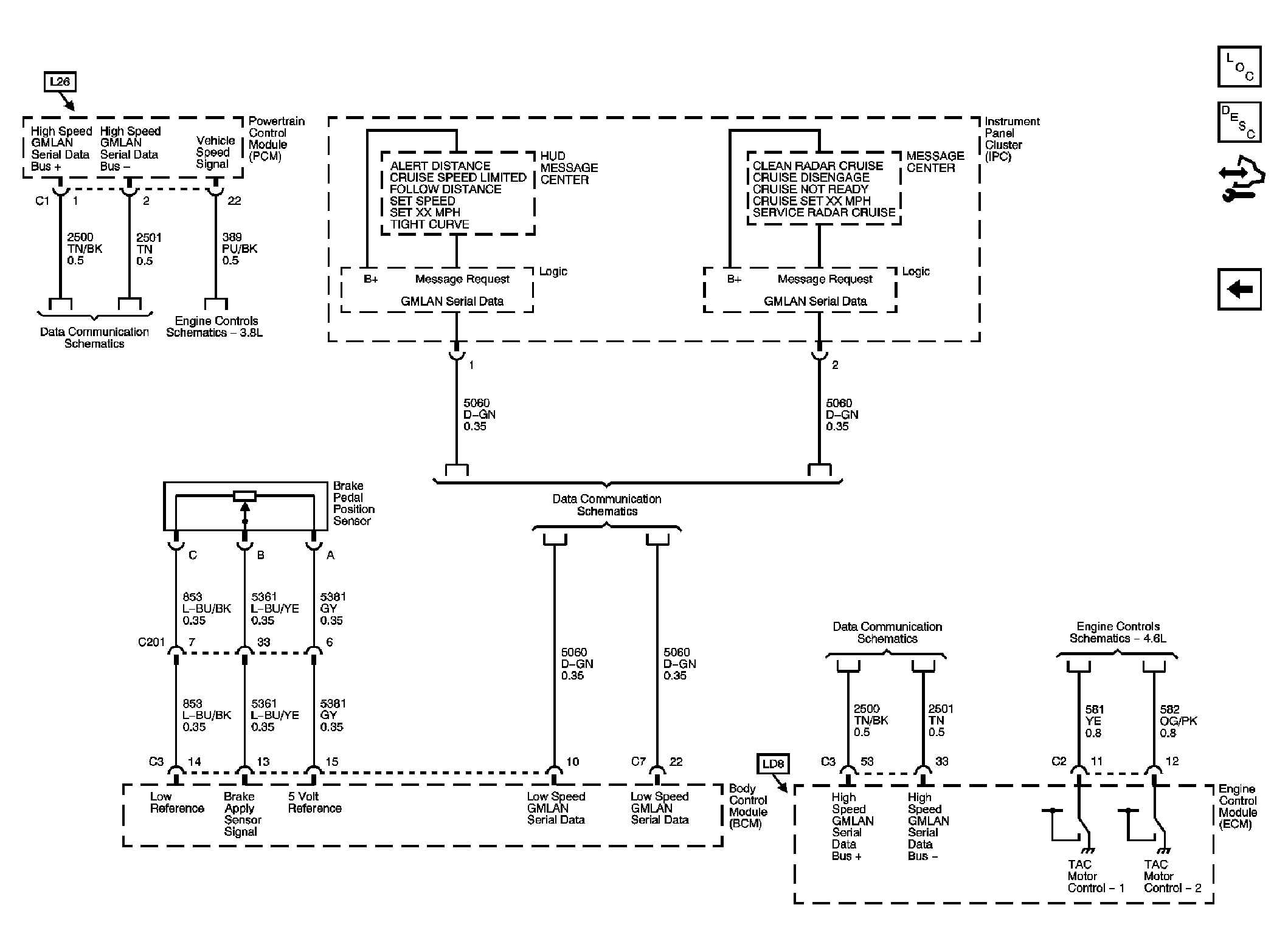

Fig 3: Indicators

Courtesy of GENERAL MOTORS CORP.
