Door Control Module Schematics

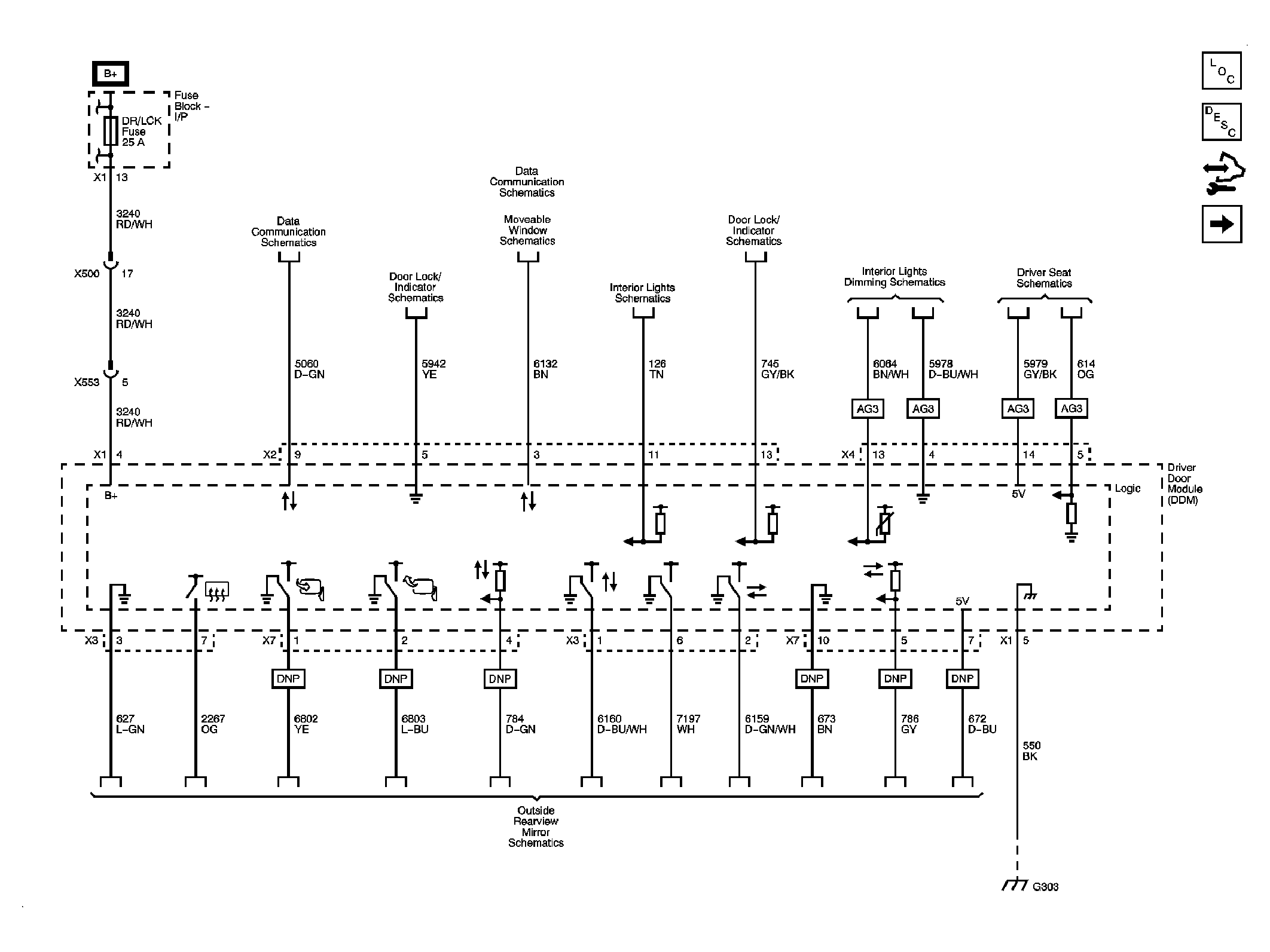

Fig 1: DDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

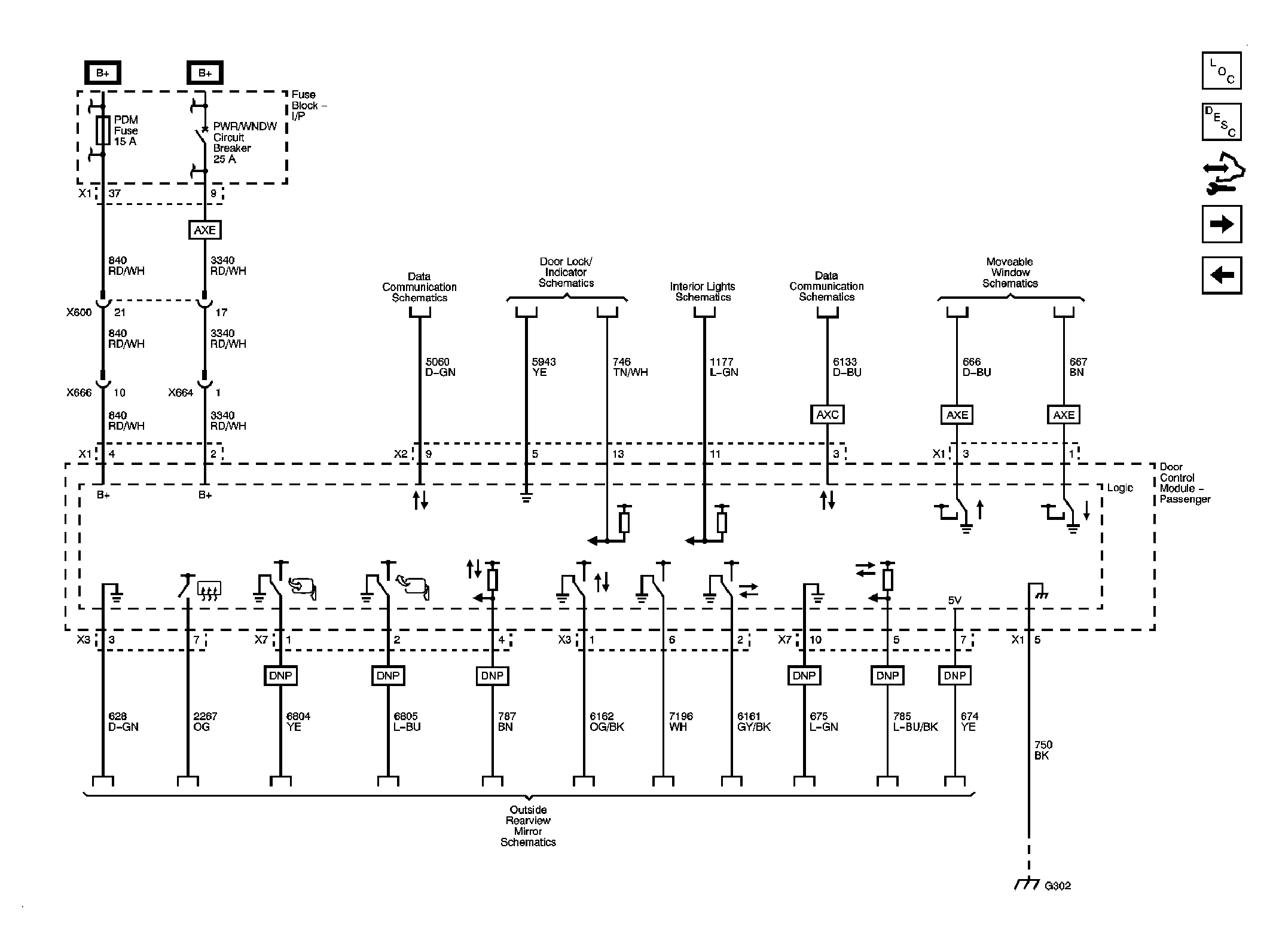

Fig 2: PDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: KA1 and KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
