Power Moding Schematics

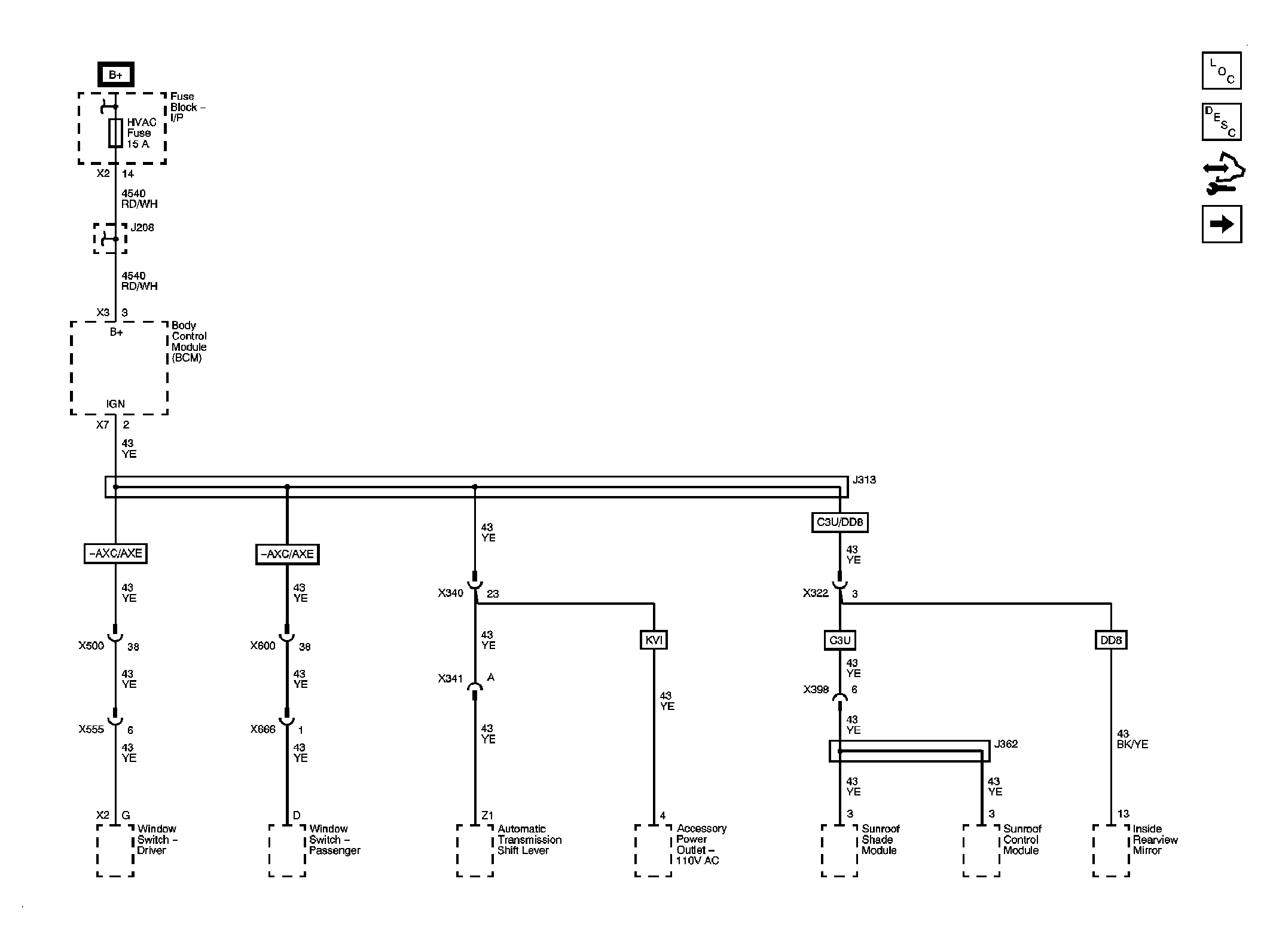

Fig 1: IGN I/II Circuit Schematic
GM2077726Courtesy of GENERAL MOTORS CORP.
Fig 2: IGN II/III Circuit Schematic
GM2077727Courtesy of GENERAL MOTORS CORP.
