Antilock Brake System Schematics

Fig 1: Module Power & Ground, Subsystem References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

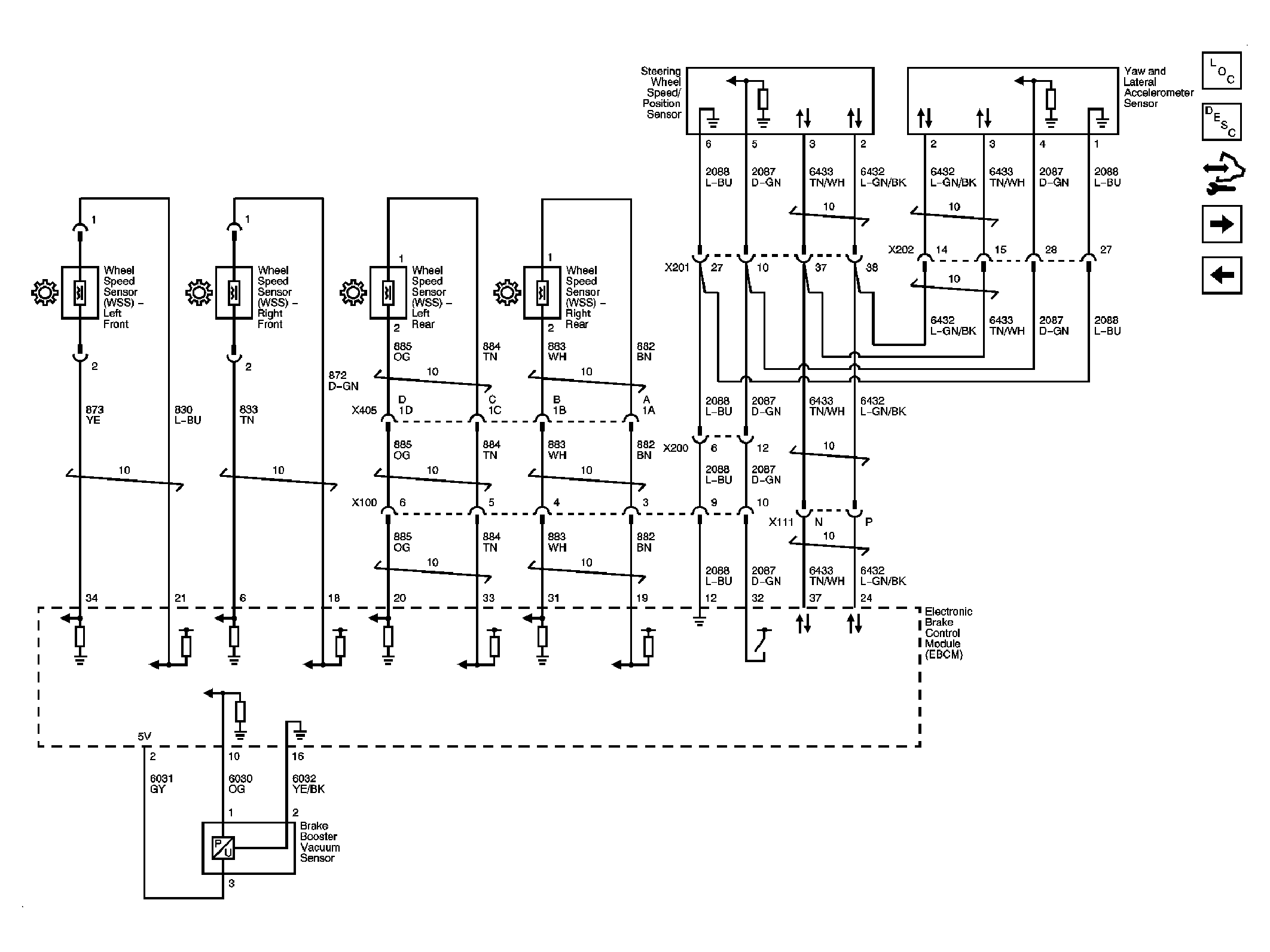

Fig 2: Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: TCS Control and Indicators Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
