Data Communication Schematics

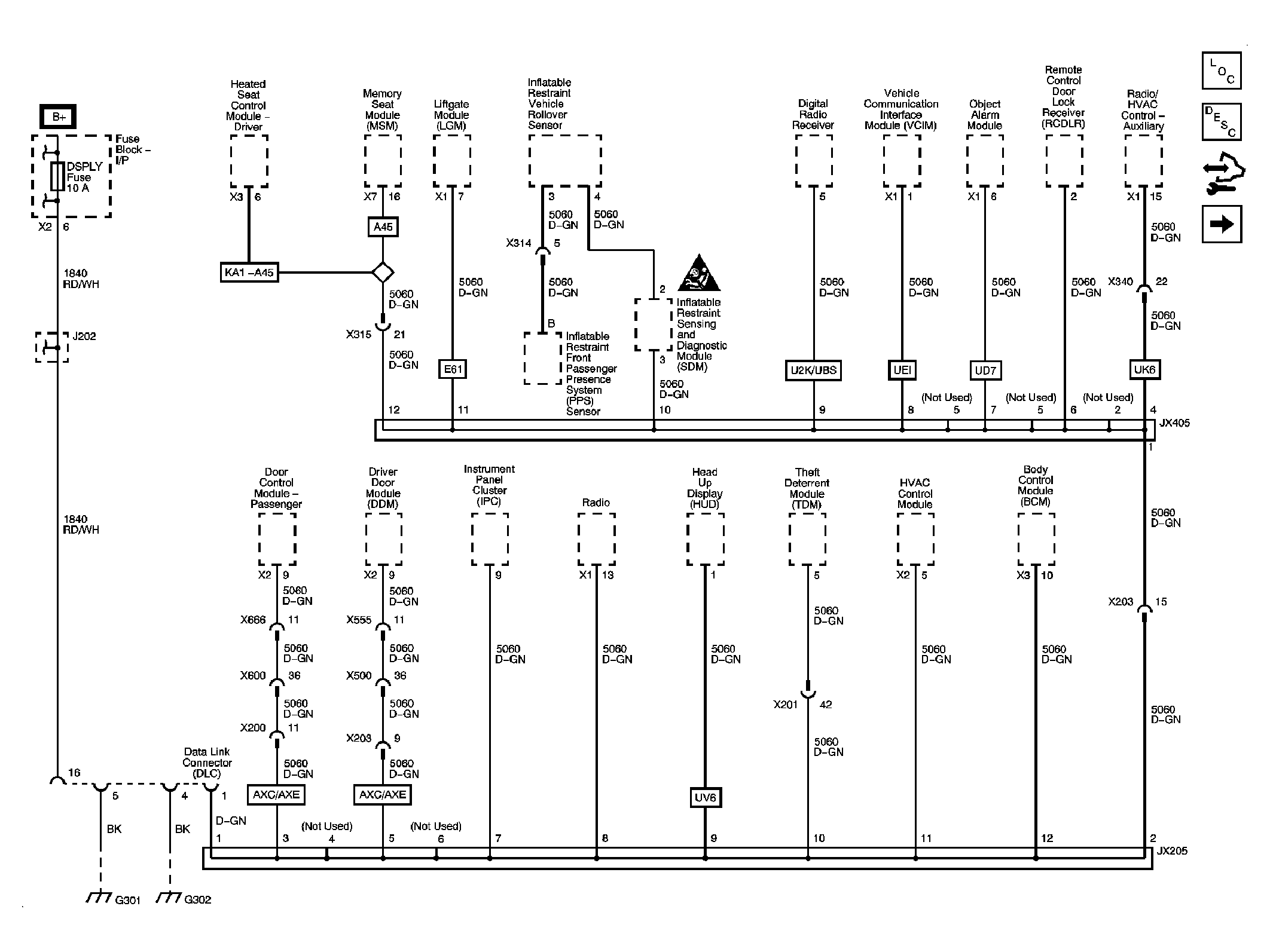

Fig 1: Low Speed GMLAN Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

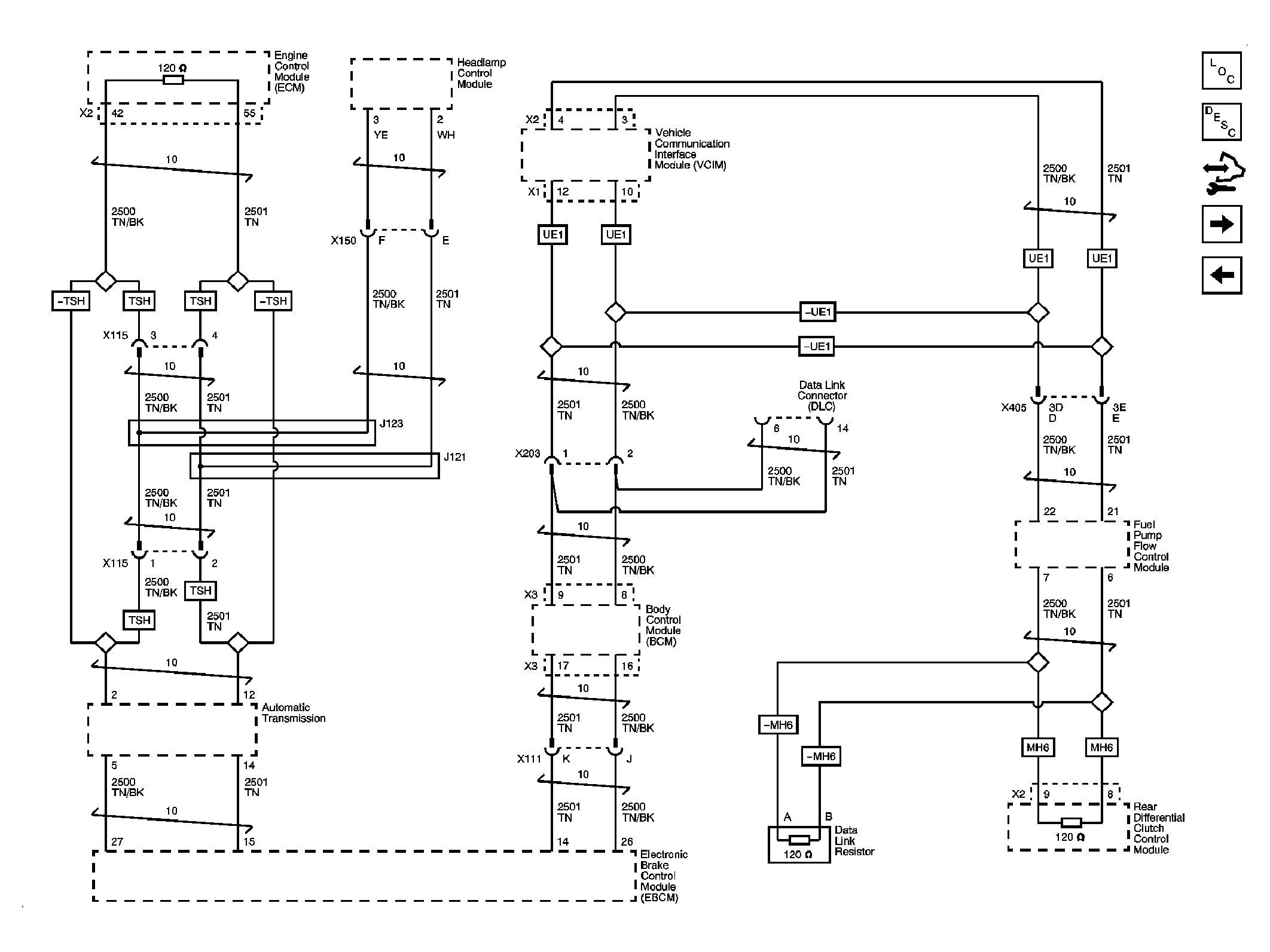

Fig 2: High Speed GMLAN Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

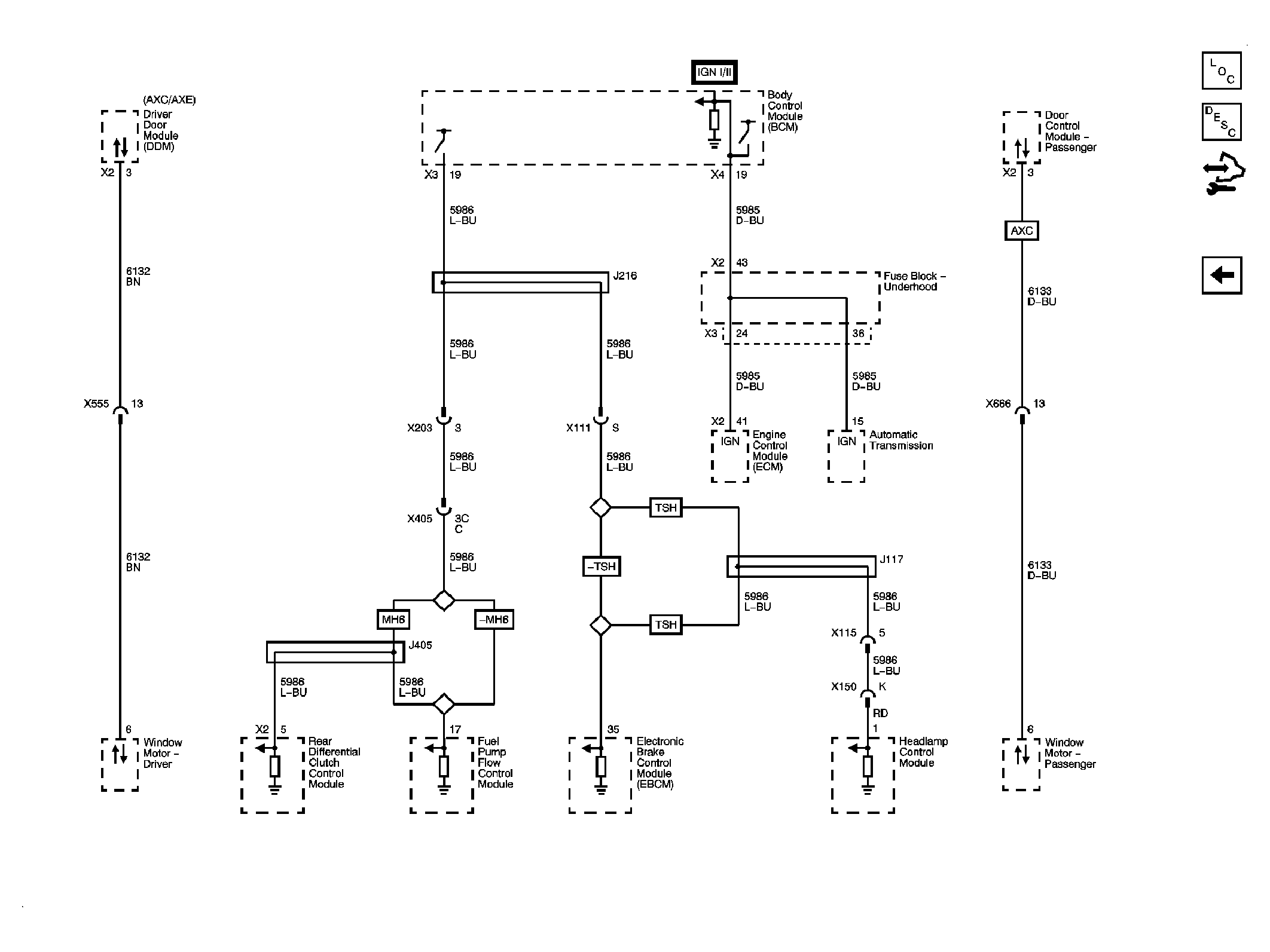

Fig 3: Communication Enable and Local Interconnect Network Circuit Schematic (LIN)

Courtesy of GENERAL MOTORS CORP.
