Blower Motor Control Module Replacement
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

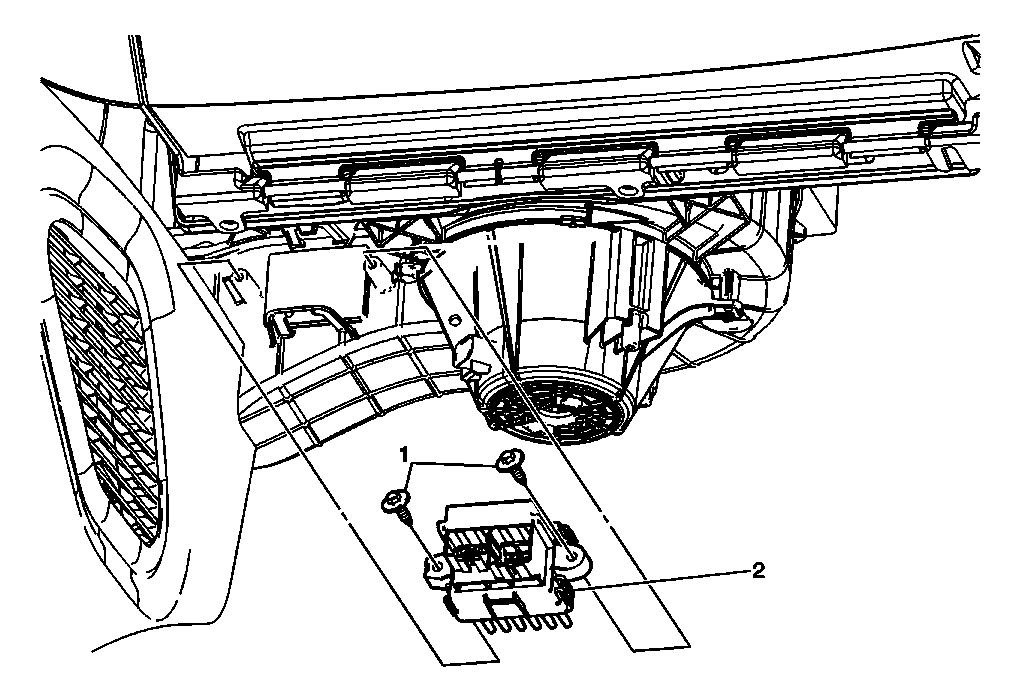

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel insulator - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Acadia) or Instrument Panel Insulator Panel Replacement - Right Side (Enclave) or Instrument Panel Insulator Panel Replacement - Right Side (OUTLOOK) or Instrument Panel Insulator Panel Replacement - Right Side (Traverse) . |
|
| 1 | Blower Motor Control Module Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Blower Motor Control Module Procedure: Disconnect electrical connectors. |
