Radiator Inlet Hose Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

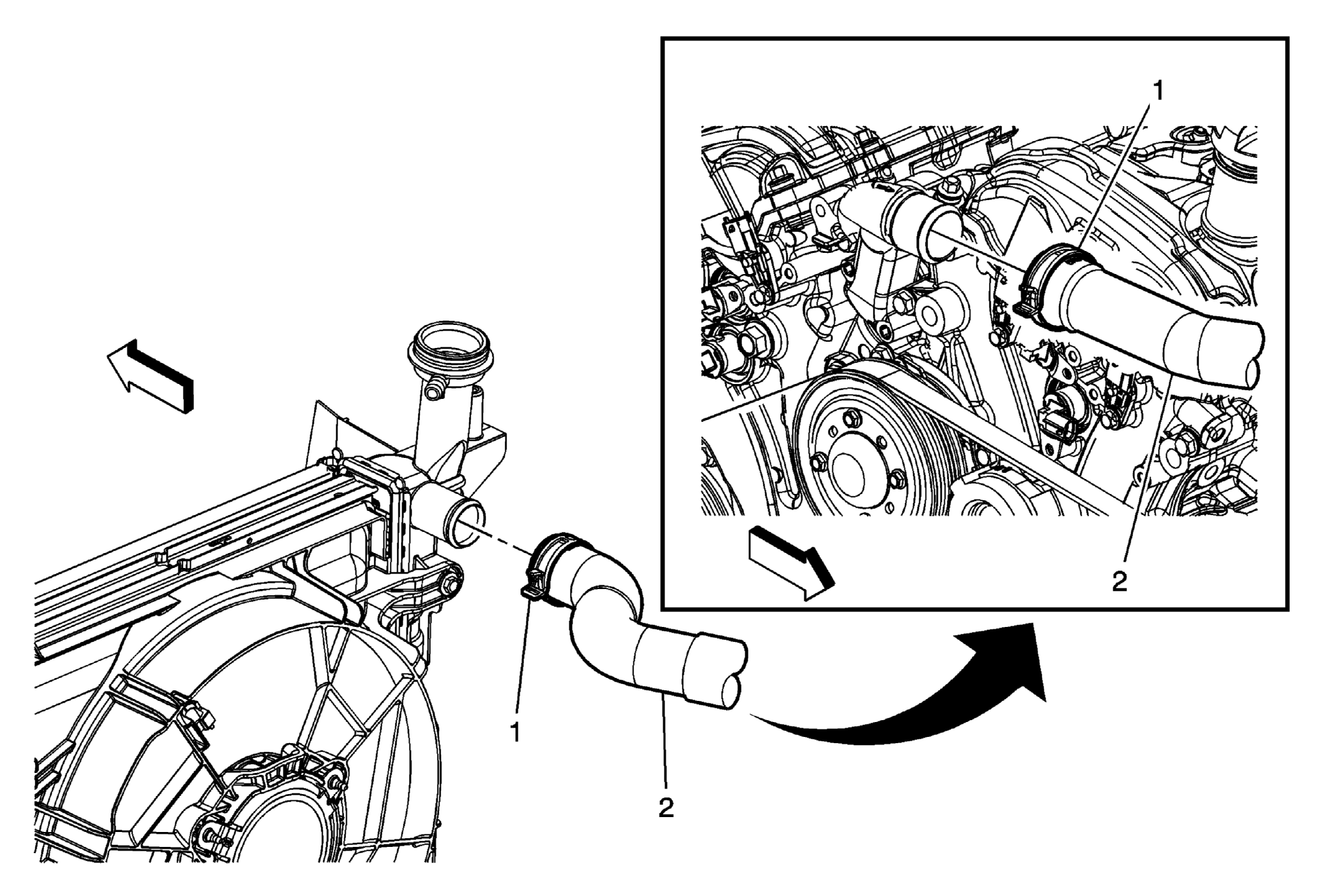

Fig 1: Identifying Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac N Fill) Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement (Acadia) or Front Compartment Sight Shields Replacement (Enclave) or Front Compartment Sight Shields Replacement (OUTLOOK)
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure: Using J 38185 reposition the radiator inlet hose clamps. See Special Tools . Special Tools: J 38185 Hose Clamp Pliers. See Special Tools .
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedure

Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac N Fill)
Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement (Acadia) or Front Compartment Sight Shields Replacement (Enclave) or Front Compartment Sight Shields Replacement (OUTLOOK)

Radiator Inlet Hose Clamp (Qty: 2)
Procedure:
Using J 38185 reposition the radiator inlet hose clamps. See Special Tools .
Special Tools:
J 38185 Hose Clamp Pliers. See Special Tools .

Radiator Inlet Hose
