Special Tools

Illustration Tool Number/Description
GM283638Courtesy of GENERAL MOTORS CORP.
 J-34028
Inner Tie Rod Wrench
GM643842Courtesy of GENERAL MOTORS CORP.
 J-39570
Chassis Ear
GM1337356Courtesy of GENERAL MOTORS CORP.
 J-44721
Power Steering Analyzer
GM133Courtesy of GENERAL MOTORS CORP.
 J-24319-B
Steering Linkage and Tie Rod Puller
GM676Courtesy of GENERAL MOTORS CORP.
 J-25033-C
Pulley Installer
GM675Courtesy of GENERAL MOTORS CORP.
 J-25034-C
Pulley Remover

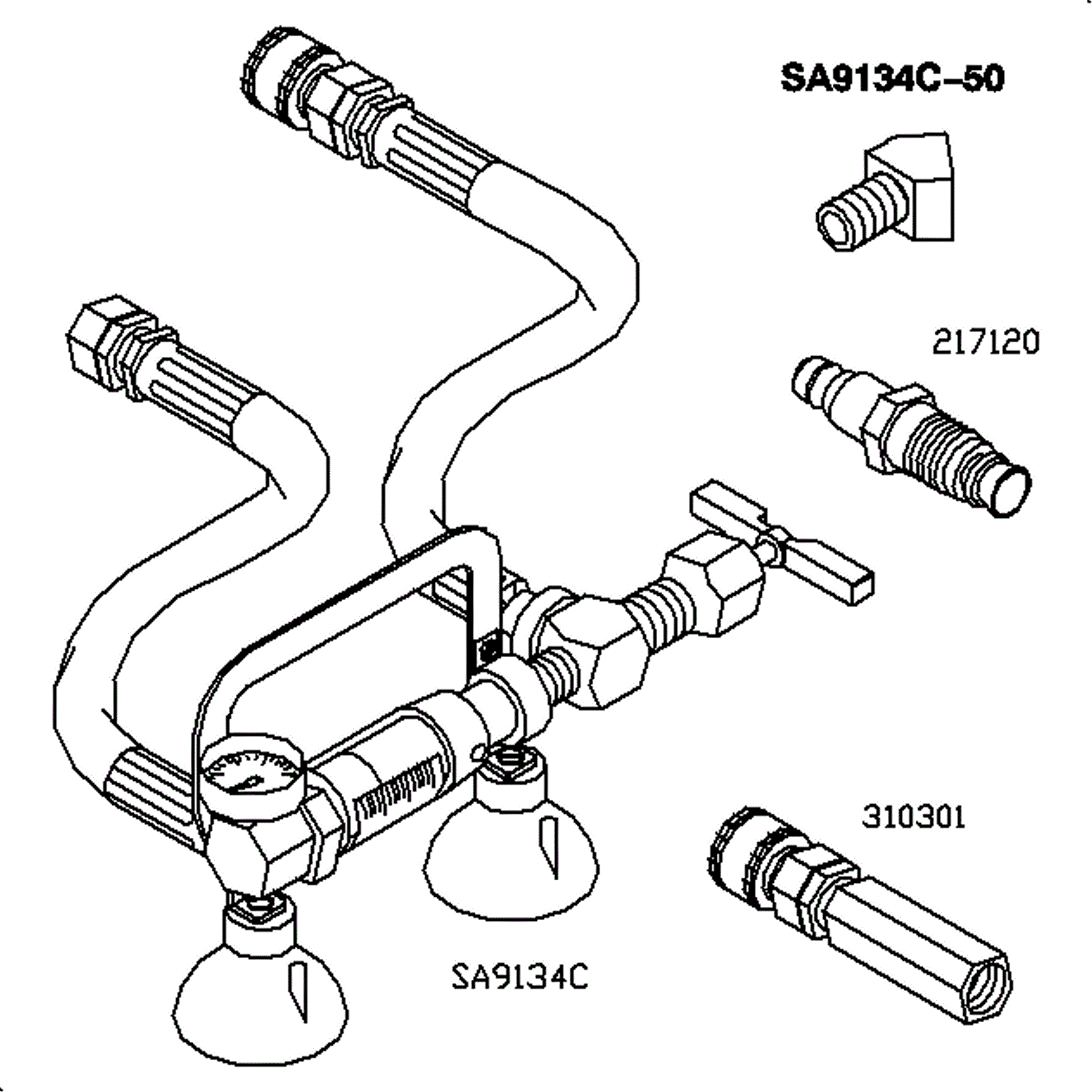

GM878644Courtesy of GENERAL MOTORS CORP.
 SA9134C
Power Steering Analyzer

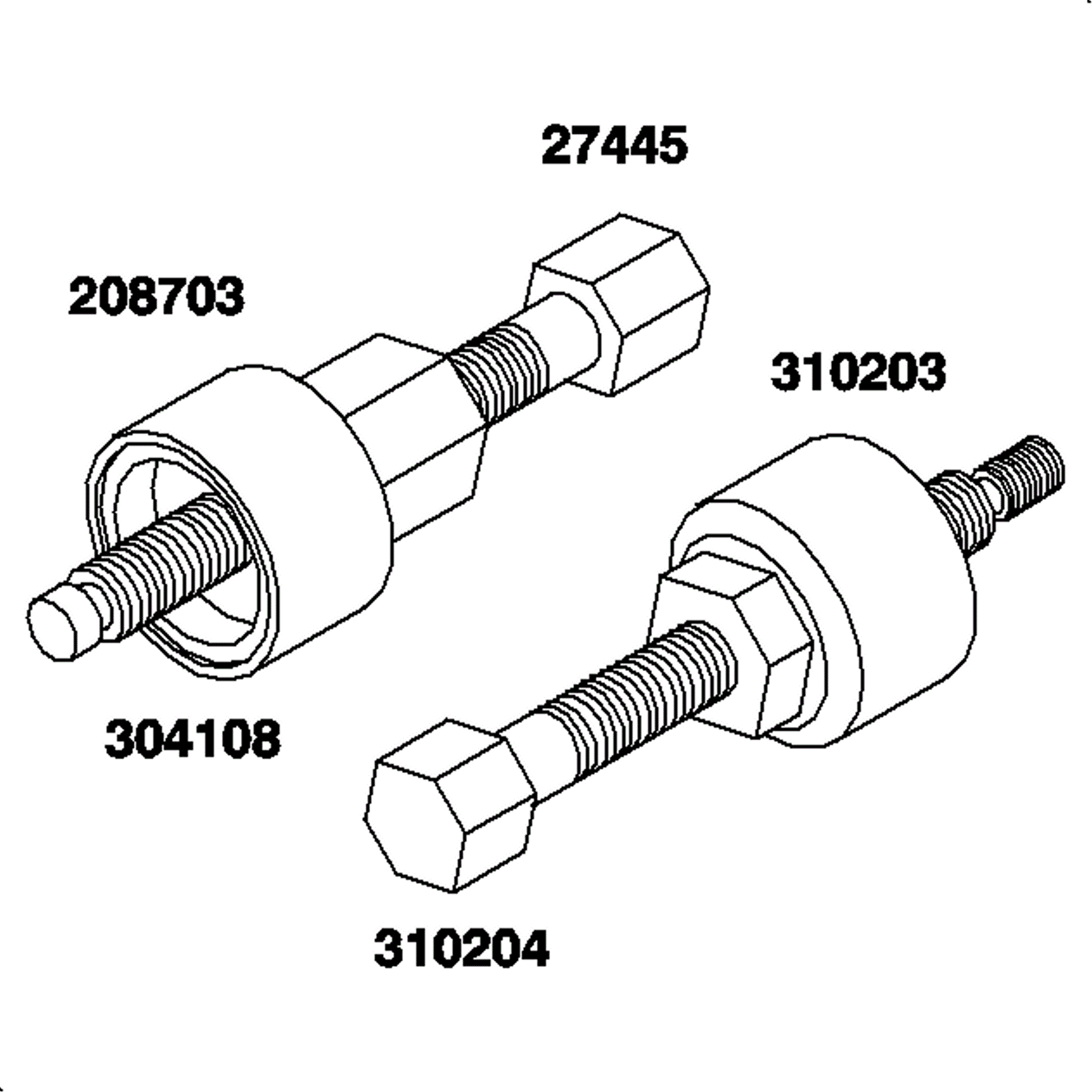

GM878725Courtesy of GENERAL MOTORS CORP.
 SA9162C
Power Steering Pump Pulley Remover/Installer

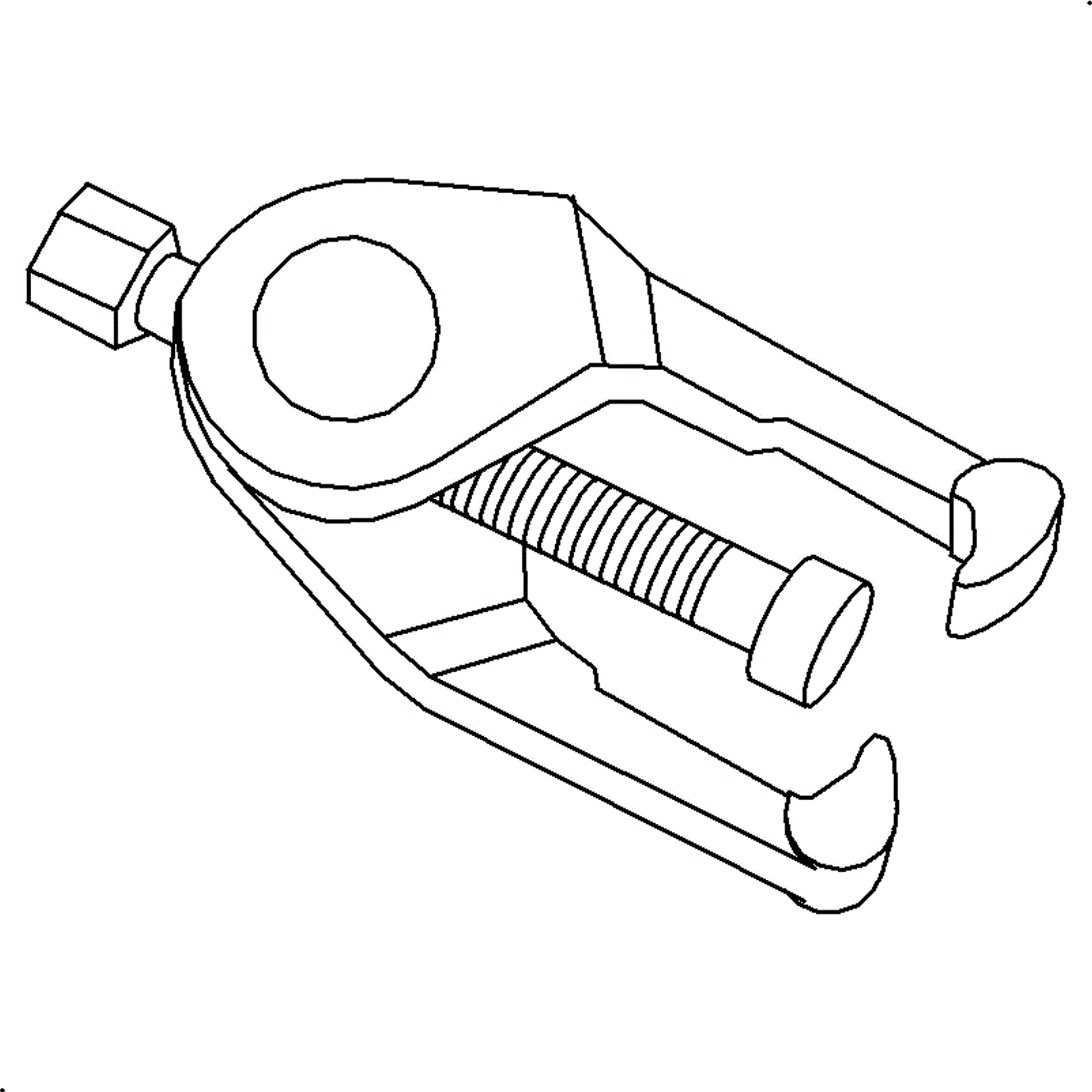

GM877700Courtesy of GENERAL MOTORS CORP.
 SA91100C
Tie Rod Separator
