Steering Column Lower Trim Cover Replacement

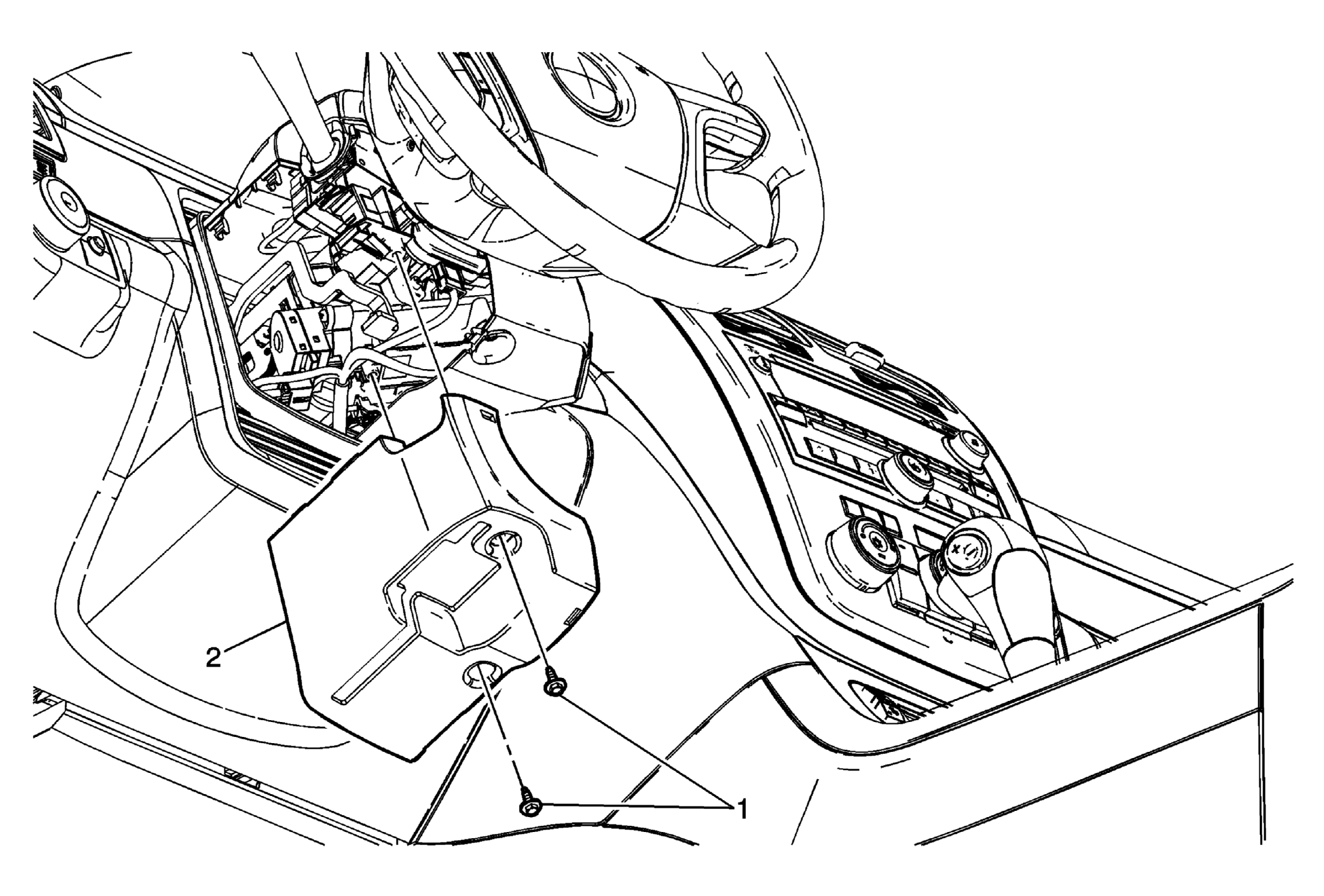

Fig 1: Identifying Steering Column Lower Trim Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the ignition lock cylinder opening trim cover bolts. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .
1	Steering Column Lower Trim Cover Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Steering Column Lower Trim Cover Procedure Unclip the steering column lower trim cover from the ignition lock cylinder opening trim cover. Separate the steering column lower trim cover from the steering column upper trim cover.

Callout

Component Name

Preliminary Procedure:
Remove the ignition lock cylinder opening trim cover bolts. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .

Steering Column Lower Trim Cover Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Steering Column Lower Trim Cover

Procedure

Unclip the steering column lower trim cover from the ignition lock cylinder opening trim cover.
Separate the steering column lower trim cover from the steering column upper trim cover.
