Uplander Base, 3.9 1
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Secondary And Configurable Customer Controls
›
Schematic and Routing Diagrams
›
Steering Wheel Secondary/Configurable Control Schematics
Steering Wheel Secondary/Configurable Control Schematics

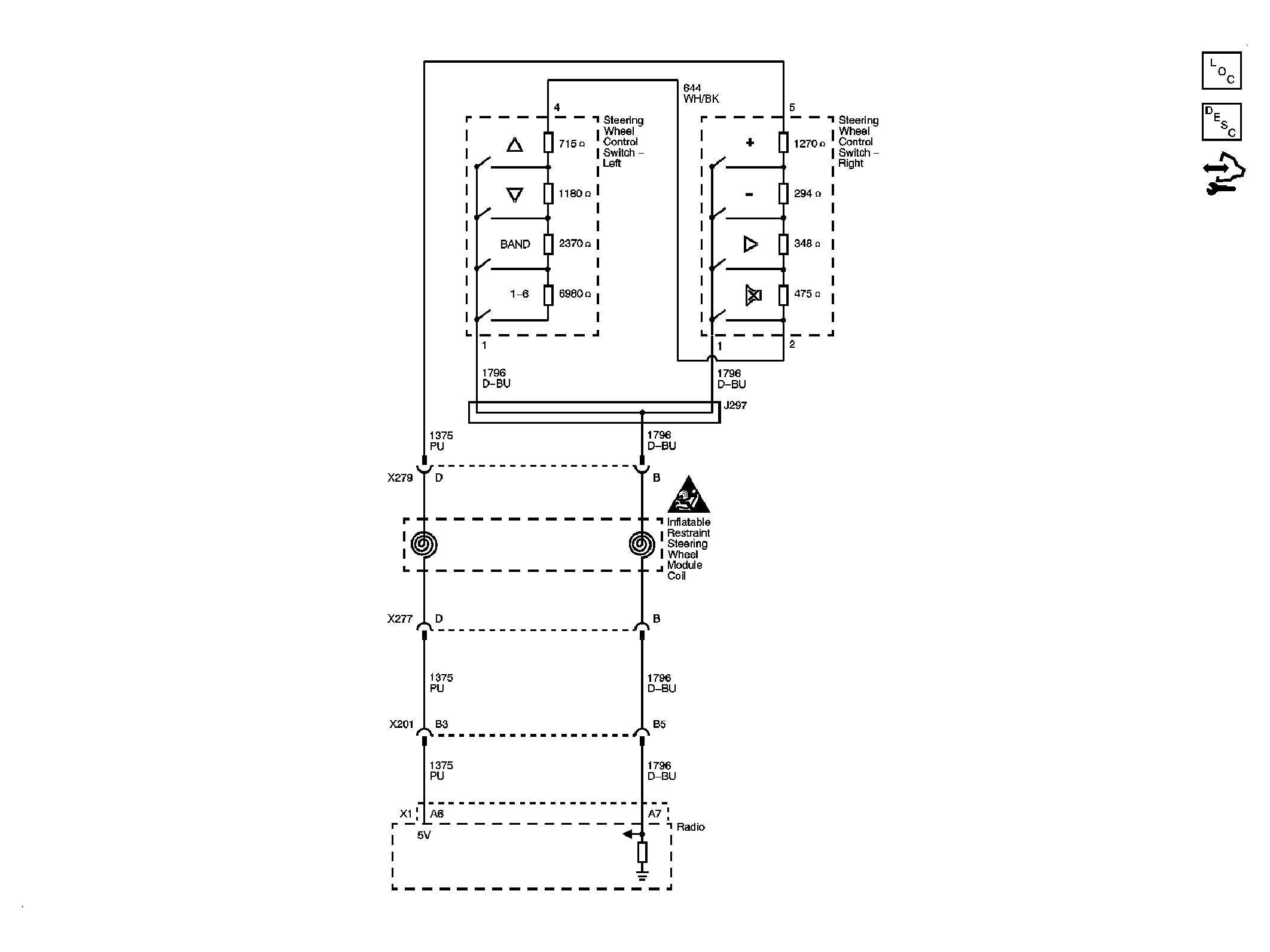

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
