Installation Procedure

    Fig 1: View Of Cable Retainers
    GM1544744Courtesy of GENERAL MOTORS CORP.
  1. Install the battery current sensor. Refer to Battery Current Sensor Replacement .
  2. Join the negative and battery positive cables.
  3. Install the negative and positive battery cables to the vehicle.
  4. Install the battery cable conduit retainers to the inner fender (1) and the lower tie bar (2).

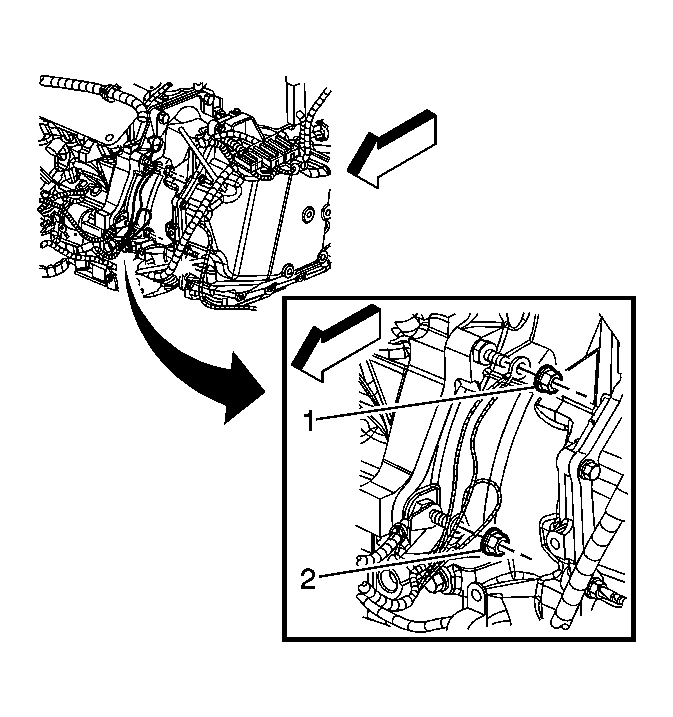

    5. Fig 2: Locating Engine Harness Grounds
    GM1679875Courtesy of GENERAL MOTORS CORP.
  5. Install the negative battery cable to the transaxle stud.
  6. Install the engine harness ground terminal.
    7. CAUTION: Refer to Fastener Caution .
  7. Install the engine harness ground nut (2) and tighten to 25 N.m (18 lb ft)  .

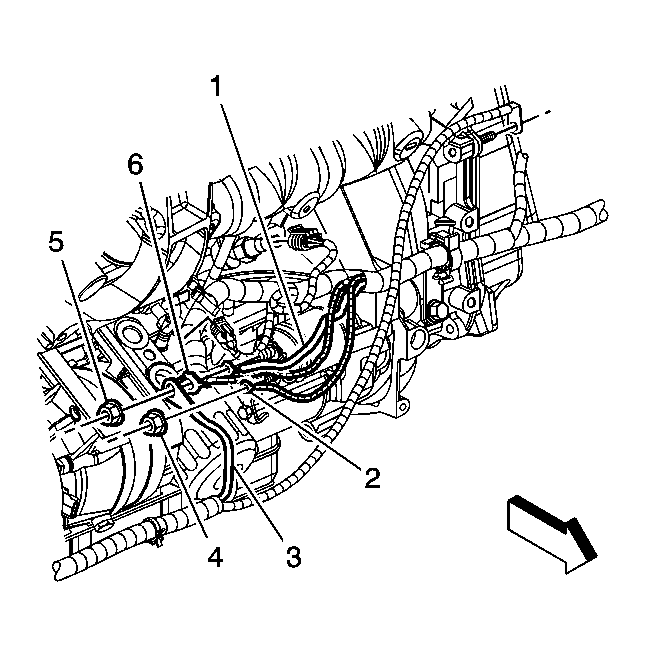

    8. Fig 3: View Of Battery Cable At Starter
    GM1679419Courtesy of GENERAL MOTORS CORP.
  8. Install the positive battery cable to the starter motor "BAT" terminal.
  9. Install the starter motor "BAT" terminal nut (5) and tighten to 17 N.m (13 lb ft)  .
    10. Fig 4: Locating Battery Positive Cable And Nut
    GM1544745Courtesy of GENERAL MOTORS CORP.
  10. Install the radiator air baffle. Refer to Radiator Air Baffle Assemblies and Deflectors .
  11. Install the I/P wiring harness (4) terminal and the positive battery cable (3) terminal to the junction block stud (2).
  12. Install the positive battery cable to junction block nut (1) and tighten to 10 N.m (89 lb in)  .

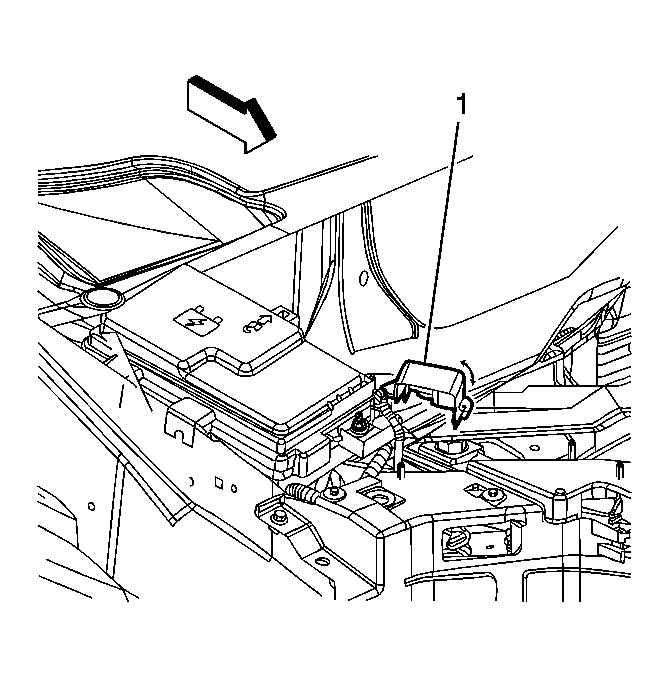

    13. Fig 5: View Of Junction Block Cover
    GM1680883Courtesy of GENERAL MOTORS CORP.
  13. Close the junction block cover (1).
    14. Fig 6: Identifying Negative Battery Cable Ground
    GM1680886Courtesy of GENERAL MOTORS CORP.
  14. Install the negative battery cable ground (2) to the stud.
  15. Install the negative battery cable ground terminal nut (1) to the inner fender stud and tighten to 5 N.m (44 lb in)  .
    16. Fig 7: View Of Battery And Cables
    GM1544743Courtesy of GENERAL MOTORS CORP.
  16. Install the positive battery cable to the battery.
  17. Tighten the positive battery cable nut (3) and tighten to 16 N.m (12 lb ft)  .
  18. Close the positive battery cable cover (5).
    19. Fig 8: Identifying Battery Current Sensor Electrical Connector
    GM1533512Courtesy of GENERAL MOTORS CORP.
  19. Connect the battery current sensor electrical connector (2).
  20. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
