Automatic Level Control Inflator Air Switch Replacement

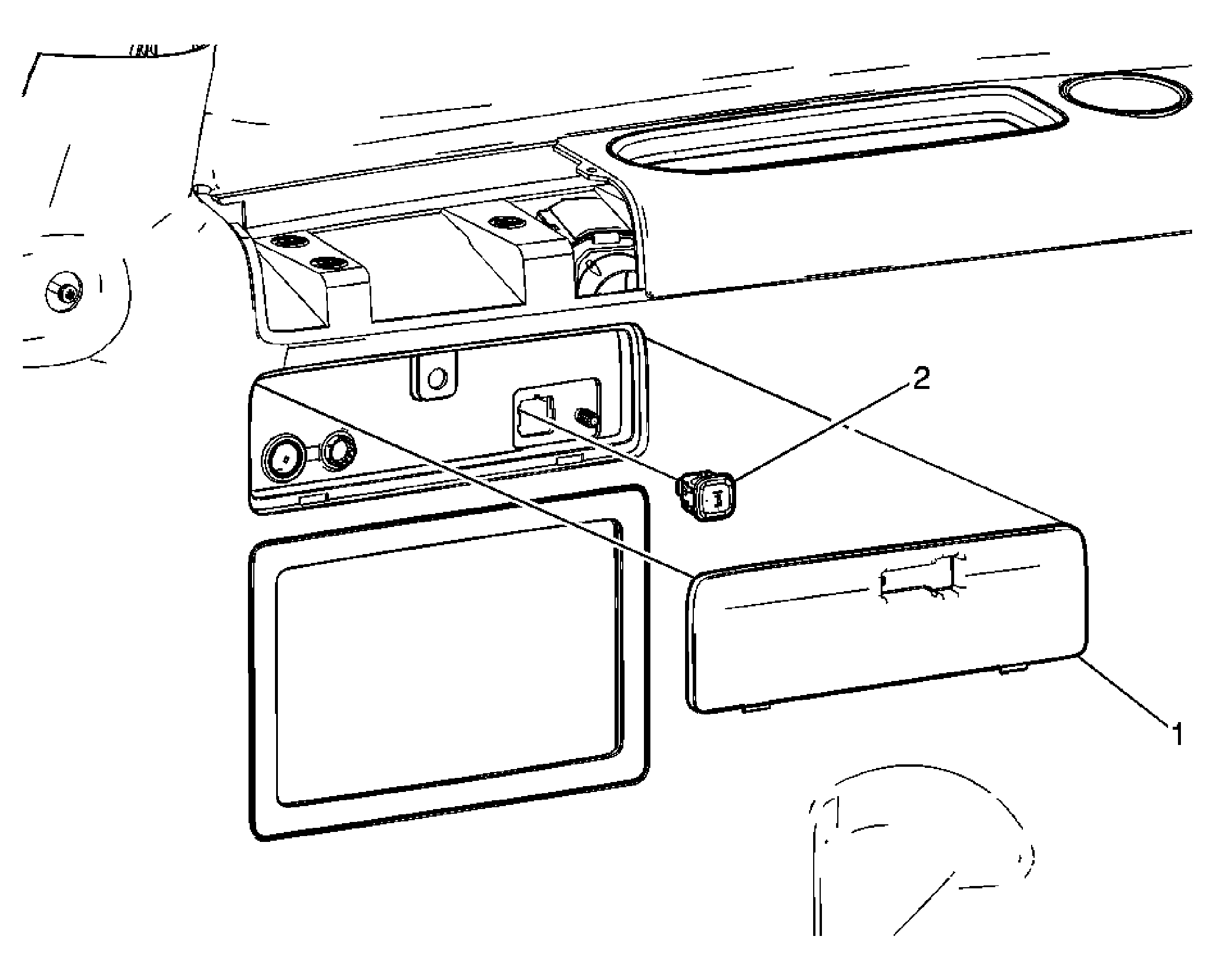

Fig 1: Identifying Level Control Inflator Air Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the seat belt retractor trim cover. Refer to Rear Seat Belt Retractor Trim Cover Replacement .
1	Inflator Access Cover
2	Inflator Solenoid Switch Procedure Access the switch through the seat belt trim cover opening. Disconnect the inflator switch electrical connector. Release the inflator switch retainer to remove the switch from the rear quarter trim panel.

Callout

Component Name

Preliminary Procedure:
Remove the seat belt retractor trim cover. Refer to Rear Seat Belt Retractor Trim Cover Replacement .

Inflator Access Cover

Inflator Solenoid Switch

Procedure

Access the switch through the seat belt trim cover opening.
Disconnect the inflator switch electrical connector.
Release the inflator switch retainer to remove the switch from the rear quarter trim panel.
