Ground Views

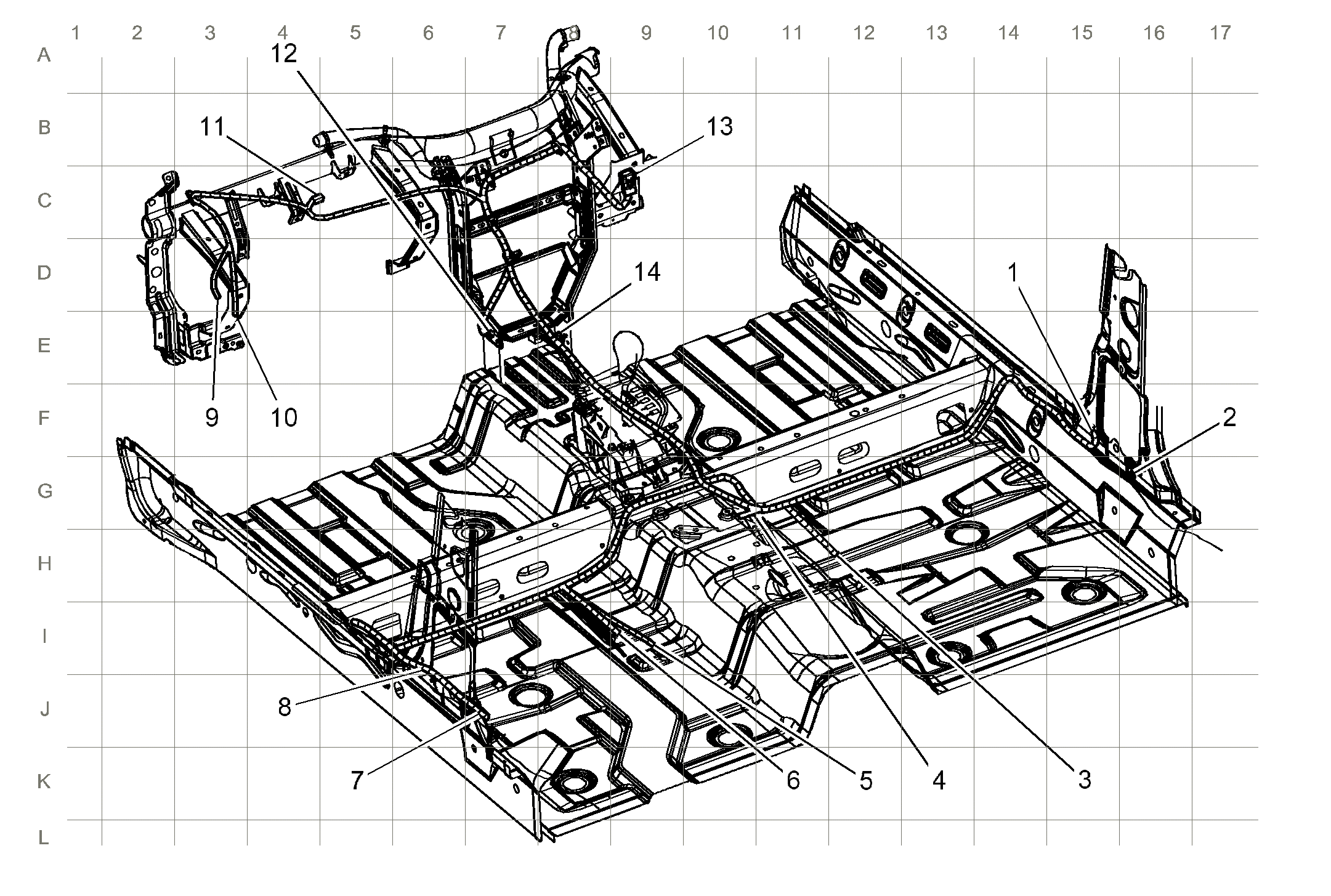

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Side Impact Sensor - Right |
| 2 | Seat Belt Pretensioner - Right |
| 3 | Inflatable Restraint Side Impact Module - Right |
| 4 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 5 | Passenger Pressence System (PPS) Sensor |
| 6 | Inflatable Restraint Side Impact Module - Left |
| 7 | Seat Belt Pretensioner - Left |
| 8 | Infltable Restraint Side Impact Sensor - Left |
| 9 | Passenger Airbag Disable Switch |
| 10 | Glove Box Switch |
| 11 | Inflatable Restraint - I/P Module |
| 12 | X216 |
| 13 | Inflatable Restraint Steering Wheel Module |
| 14 | G203 |

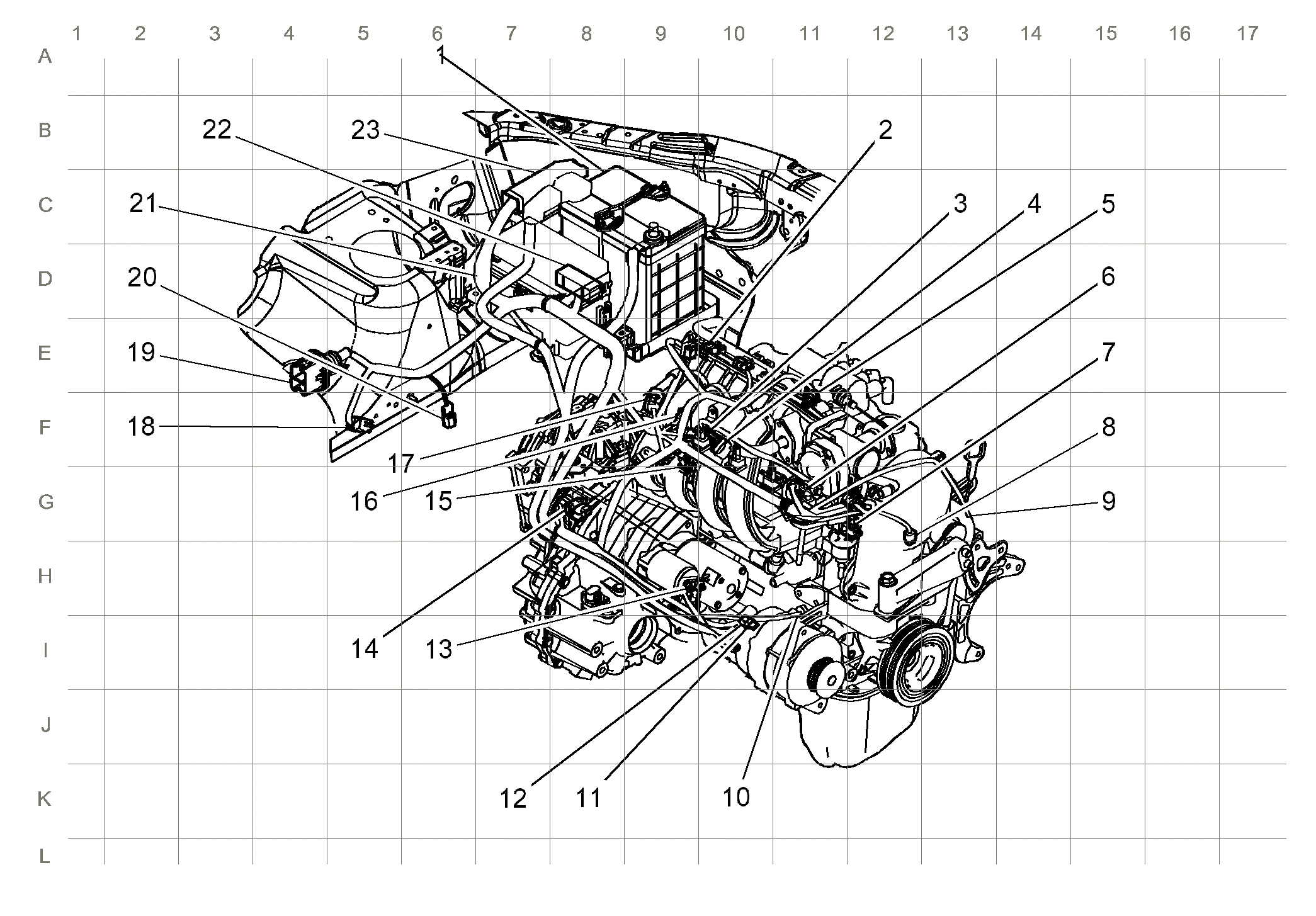

| Callout | Component Name |
|---|---|
| 1 | Battery |
| 2 | Camshaft Position (CMP) Sensor |
| 3 | Heated Oxygen Sensor (HO2S) 2 |
| 4 | Heated Oxygen Sensor (HO2S) 1 |
| 5 | Ignition Coil Module |
| 6 | X106 |
| 7 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 8 | A/C Refrigerant Pressure Sensor |
| 9 | Power Steering Pressure Switch |
| 10 | Oil Pressure Switch |
| 11 | Generator |
| 12 | G104 |
| 13 | Starter |
| 14 | Knock Sensor (KS) |
| 15 | Crankshaft Position (CKP) Sensor |
| 16 | Engine Coolant Temperature (ECT) Sensor |
| 17 | Exhaust Gas Recirculation (EGR) Vavle |
| 18 | X206 |
| 19 | X204 |
| 20 | Octane Selection Switch |
| 21 | G103 |
| 22 | Fuse Block - Underhood |
| 23 | Engine Control Module (ECM) |

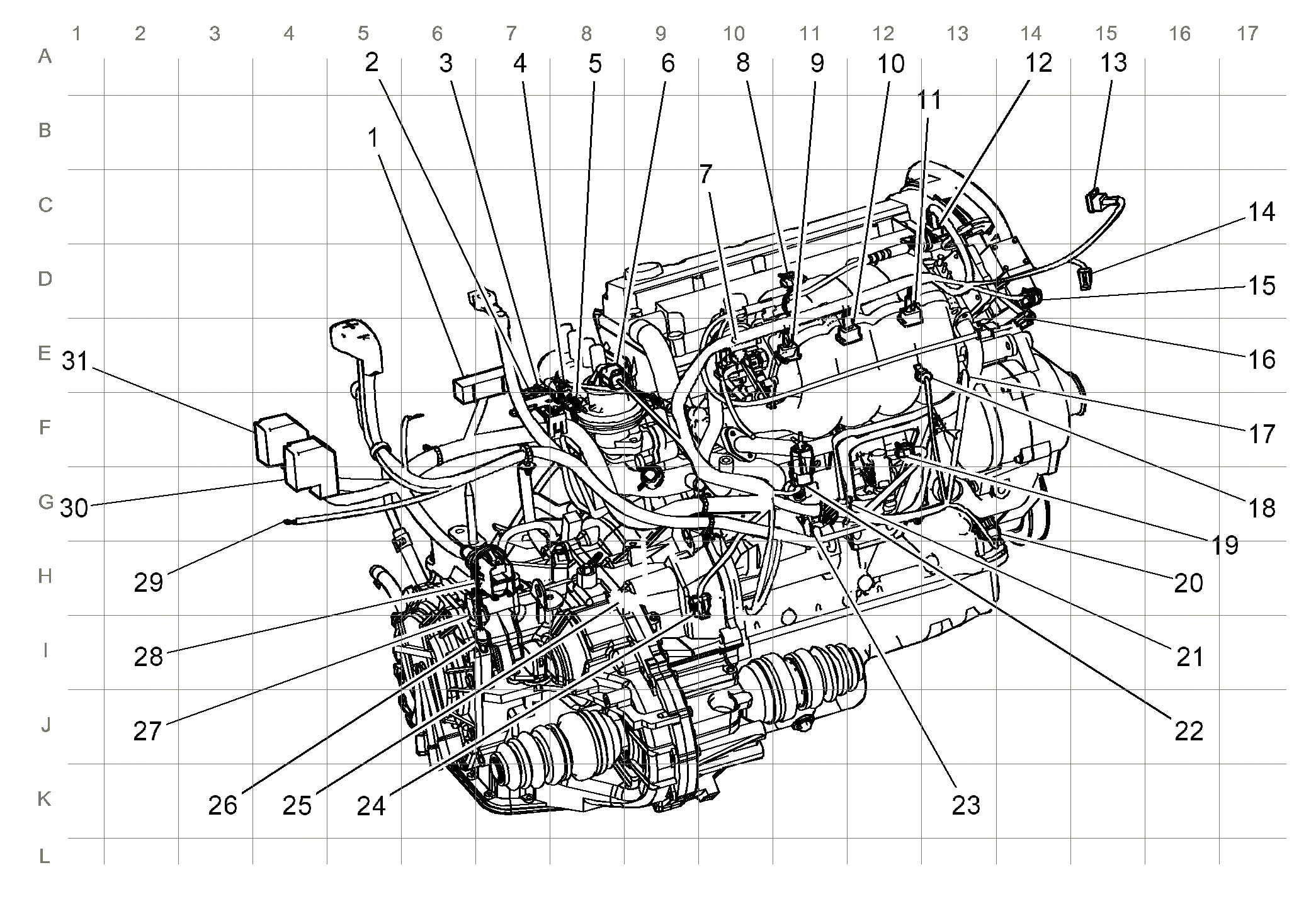

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood X1 |
| 2 | Crankshaft Position (CKP) Sensor |
| 3 | Backup Switch (D16/Y4M) |
| 4 | Heated Oxygen Sensor (HO2S) 1 |
| 5 | Ignition Coil Module |
| 6 | Exhaust Gas Recirculation (EGR) Valve |
| 7 | Fuel Injector 1 |
| 8 | Manifold Absolute Pressure (MAP) Sensor |
| 9 | Fuel Injector 2 |
| 10 | Fuel Injector 3 |
| 11 | Fuel Injector 4 |
| 12 | Camshaft (CMP) Sensor |
| 13 | Intake Air Temperature (IAT) Sensor |
| 14 | A/C Refrigerant Pressure Sensor |
| 15 | Throttle Position (TP) Sensor |
| 16 | Idel Air Control (IAC) Valve |
| 17 | Generator |
| 18 | Engine Coolant Temperature (ECT) Sensor |
| 19 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 20 | Oil Pressure Switch |
| 21 | Knock Sensor (KS) |
| 22 | VGI Solenoid Valve |
| 23 | Starter |
| 24 | G104 |
| 25 | Vehicle Speed Sensor (VSS) (D16/Y4M) |
| 26 | X105 |
| 27 | Octane Selector Switch |
| 28 | Rough Road Sensor |
| 29 | X204 |
| 30 | G103 |
| 31 | Engine Control Module (ECM) X2 |
| 32 | Engine Control Module (ECM) X1 |

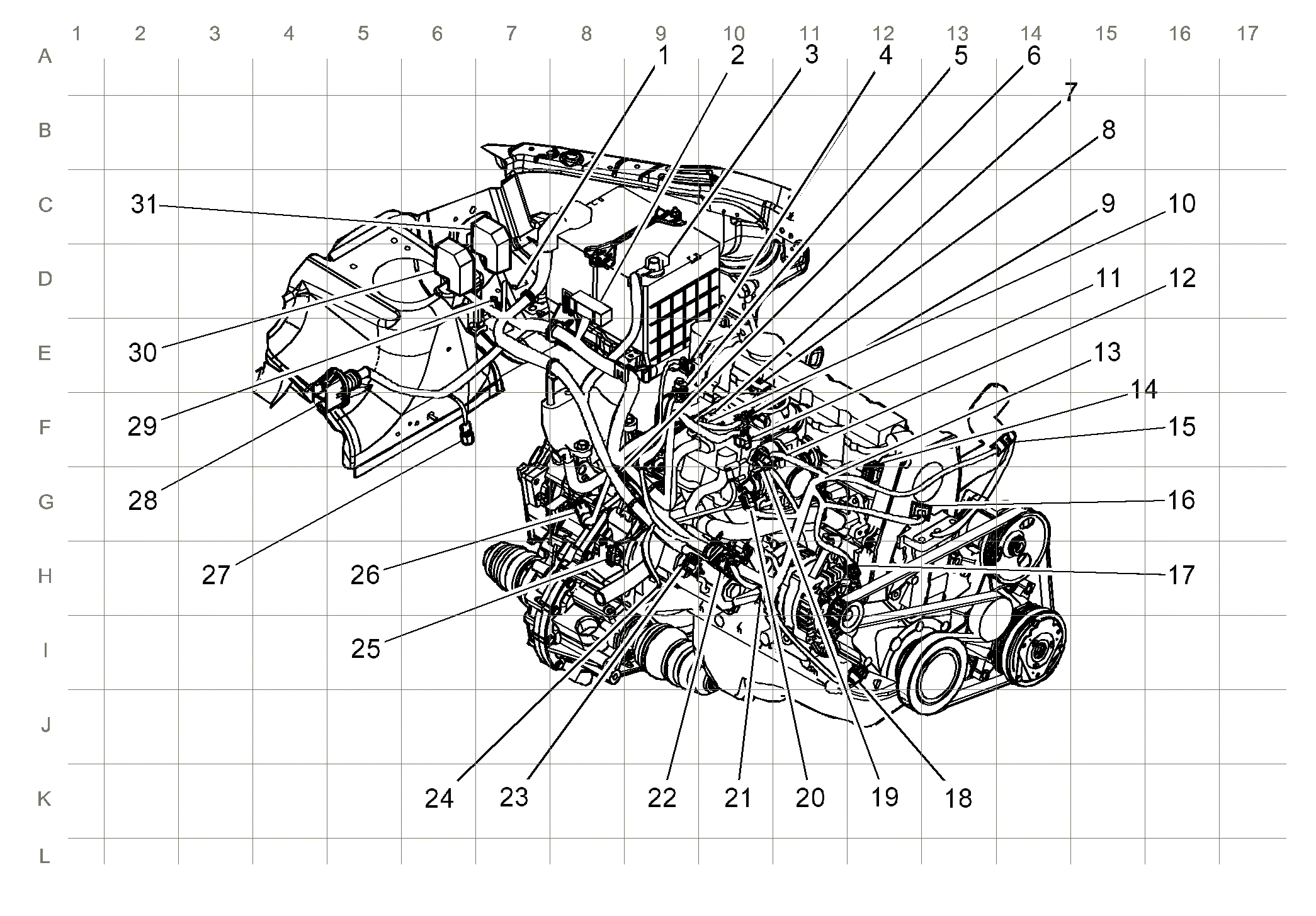

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | X101 |
| 3 | Battery |
| 4 | Ignition Coil Module |
| 5 | Manifold Absolute Pressure (MAP) Sensor |
| 6 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 7 | Engine Coolant Temperature (ECT) Sensor |
| 8 | Backup Switch (D16/Y4M) |
| 9 | Crankshaft Position (CKP) Sensor |
| 10 | Fuel Injector 1 |
| 11 | Fuel Injector 2 |
| 12 | Fuel Injector 3 |
| 13 | Fuel Injector 4 |
| 14 | Camshaft Position (CMP) Sensor |
| 15 | Heated Oxygen Sensor (HO2S) 1 |
| 16 | Intake Air Temperature (IAT) Sensor |
| 17 | A/C Refridgerant Pressure Sensor |
| 18 | Oil Pressure Switch |
| 19 | Throttle Position (TP) Sensor |
| 20 | Idle Air Control (IAC) Valve |
| 21 | Generator |
| 22 | Knock Sensor (KS) |
| 23 | Starter |
| 24 | G104 |
| 25 | Vehicle Speed Sensor (VSS) (D16/Y4M) |
| 26 | X105 |
| 27 | Octane Selector Switch |
| 28 | X204 |
| 29 | G103 |
| 30 | Engine Control Module X1 |
| 31 | Engine Control Module X2 |

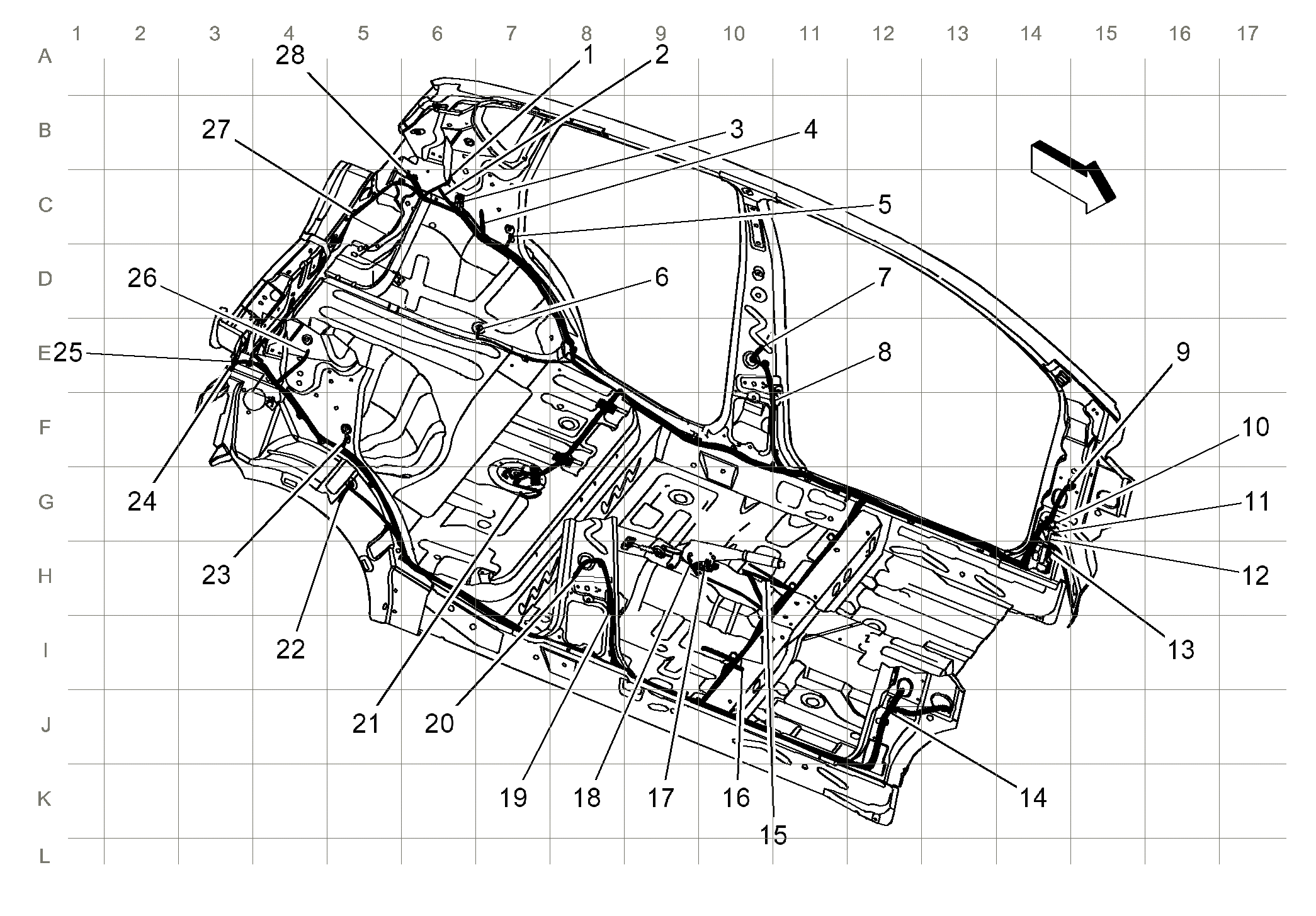

| Callout | Component Name |
|---|---|
| 1 | Speaker - Left Rear |
| 2 | X402 |
| 3 | X401 |
| 4 | Rear Compartment Courtesy Lamp |
| 5 | Door Jamb Switch - Left Rear |
| 6 | Wheel Speed Sensor (WSS) - Left Rear |
| 7 | X371 |
| 8 | Door Jamb Switch - Driver |
| 9 | X351 |
| 10 | X211 |
| 11 | X213 |
| 12 | X212 |
| 13 | X214 |
| 14 | X361 |
| 15 | Seat Belt Switch - Driver |
| 16 | G301 |
| 17 | Park Brake Switch |
| 18 | Accessory Power Outlet |
| 19 | Door Jamb Switch - Passenger |
| 20 | X381 |
| 21 | Fuel Pump and Sender Assembly |
| 22 | Wheel Speed Sensor (WSS) - Right Rear |
| 23 | Door Jamb Switch - Right Rear |
| 24 | G403 |
| 25 | Tail Lamp - Right |
| 26 | Speaker - Right Rear |
| 27 | G401 |
| 28 | Tail Lamp - Left |
| Callout | Component Name |
|---|---|
| 1 | X208 |
| 2 | Windshield Wiper Motor |
| 3 | Turn Signal Repeater - Left |
| 4 | Brake Fluid Level Switch |
| 5 | Wheel Speed Sensor (WSS) - Left Front |
| 6 | Electronic Brake Control Module (EBCM) |
| 7 | X102 |
| 8 | X103 |
| 9 | Fuse Block - Underhood |
| 10 | Inflatable Restraint Front Discriminating Sensor - Left |
| 11 | Park/Turn Signal Lamp - Left Front |
| 12 | Headlamp - Left |
| 13 | Position Lamp/Headlamp Leveling Actuator - Left |
| 14 | G102 |
| 15 | Hood Ajar Switch |
| 16 | Windshield Washer Fluid Pump (Notchback)/Windshield Washer Fluid Pump - Front (Hatchback) |
| 17 | Horn |
| 18 | Ambient Air Temperature Sensor |
| 19 | Fog Lamp - Left Front |
| 20 | Cooling Fan |
| 21 | Position Lamp/Headlamp Leveling Actuator - Right |
| 22 | Heated Oxygen Sensor (HO2S) 2 |
| 23 | A/C Compressor Clutch |
| 24 | Fog Lamp - Right Front |
| 25 | G101 |
| 26 | Headlamp - Right |
| 27 | Inflatable Restraint Front Discriminating Sensor - Right |
| 28 | Park/Turn Signal Lamp - Right Front |
| 29 | Wheel Speed Sensor (WSS) - Right Front |
| 30 | Turn Signal Repeater - Right |

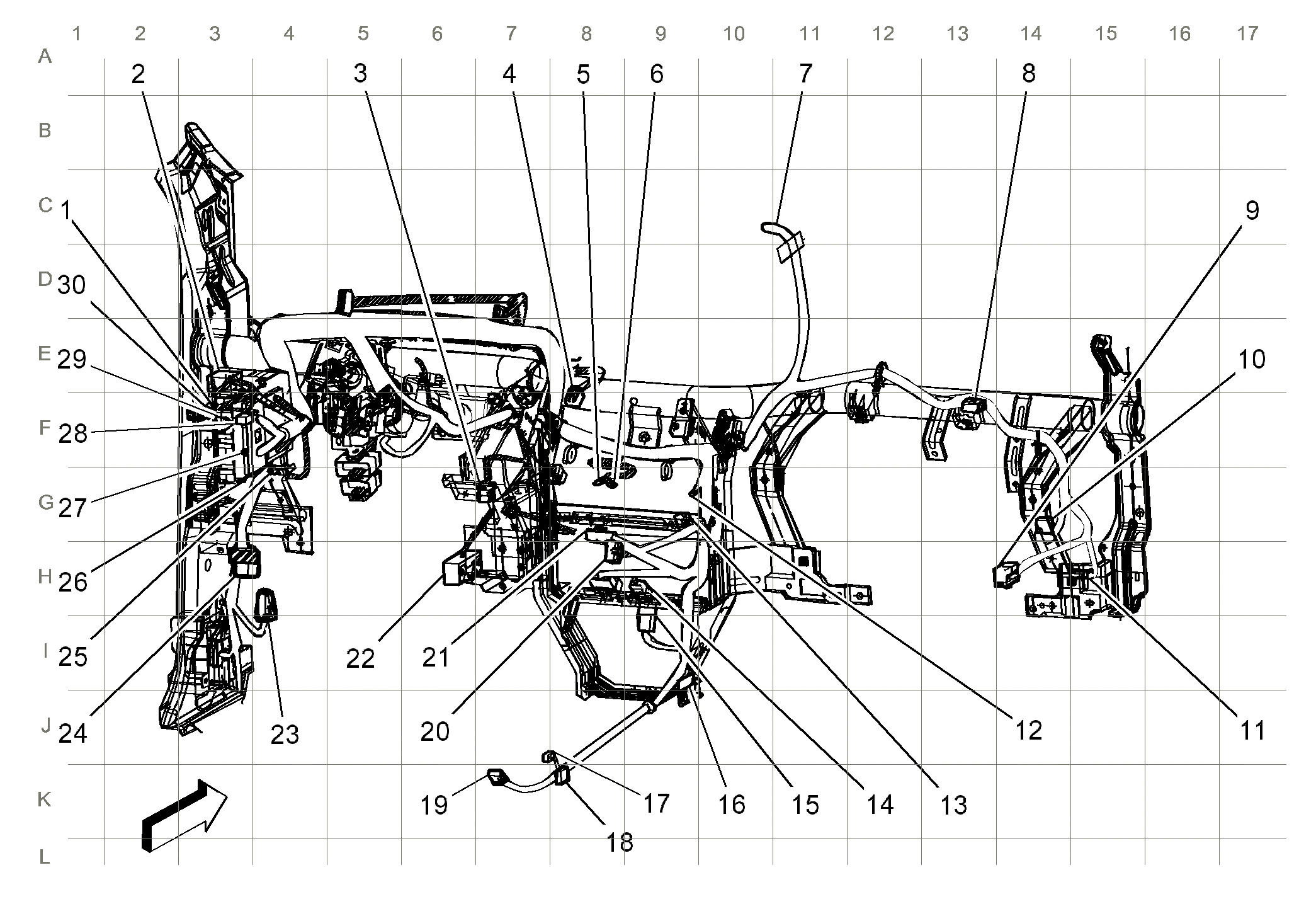

| Callout | Component Name |
|---|---|
| 1 | G201 |
| 2 | BLINK Relay |
| 3 | Inflatable Restraint Steering Wheel Module Coil |
| 4 | Stop Lamp Switch |
| 5 | Radio X1 |
| 6 | Radio X2 |
| 7 | Clock |
| 8 | Air Temperature Actuator |
| 9 | X217 |
| 10 | Blower Motor Resistor |
| 11 | Blower Motor |
| 12 | Radio Antenna |
| 13 | HVAC Control Module |
| 14 | X215 |
| 15 | Cigar Lighter |
| 16 | G203 |
| 17 | PRNDL Lamp |
| 18 | Shift Program Switch (MLQ) |
| 19 | Automatic Transmission Shift Lever (MLQ) |
| 20 | Hazard Switch |
| 21 | Blower Motor Switch |
| 22 | Data Link Connector (DLC) |
| 23 | Fuse Block - I/P |
| 24 | Folding Mirror Unit |
| 25 | Fuse Block - I/P X1 |
| 26 | I/P Dimmer Switch |
| 27 | PARK/NEUTRAL POSITION (PNP) Relay |
| 28 | Outside Rearview Mirror Switch |

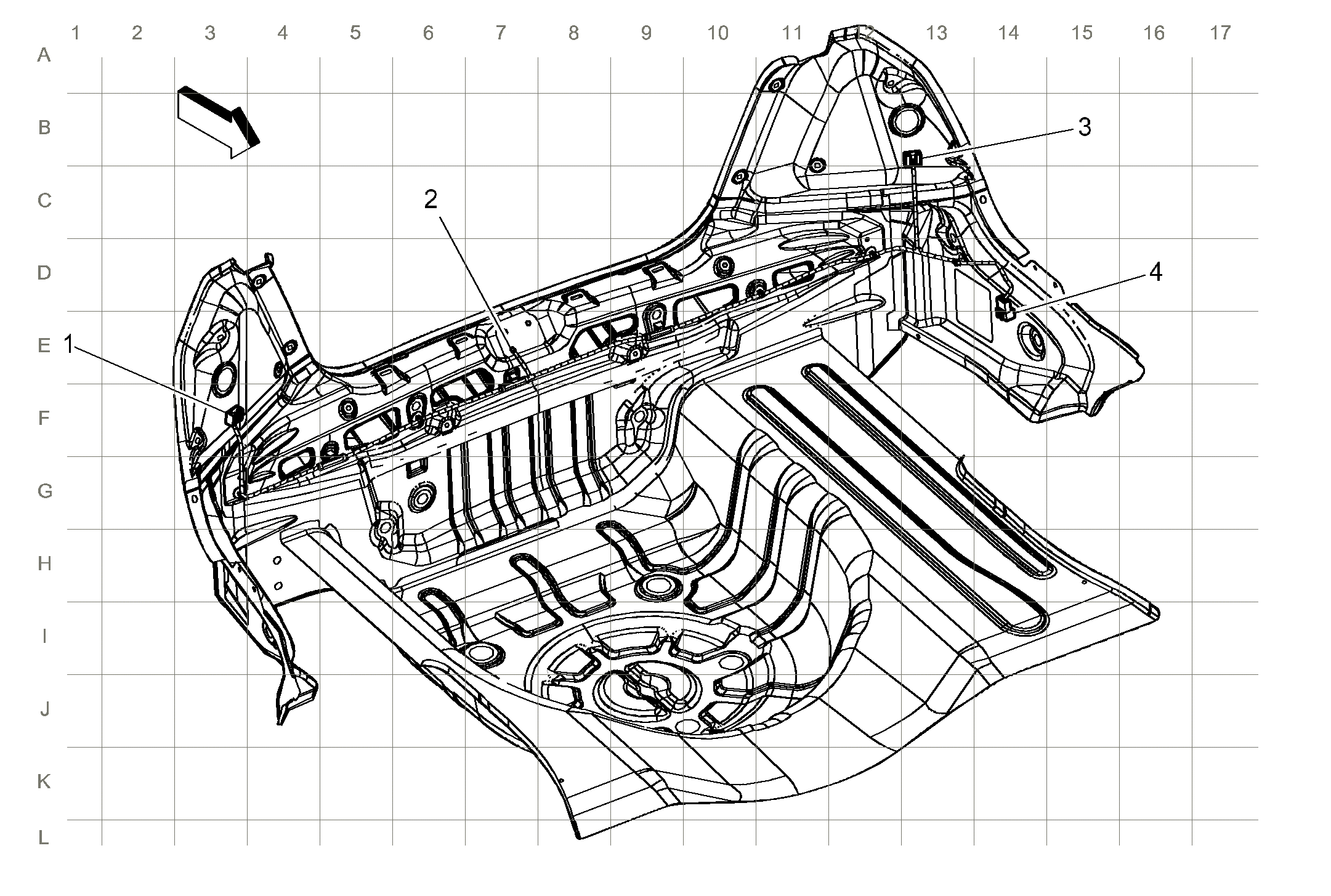

| Callout | Component Name |
|---|---|
| 1 | Tail Lamp - Right |
| 2 | G402 |
| 3 | Tail Lamp - Left |
| 4 | X401 |
