Body Control System Schematics

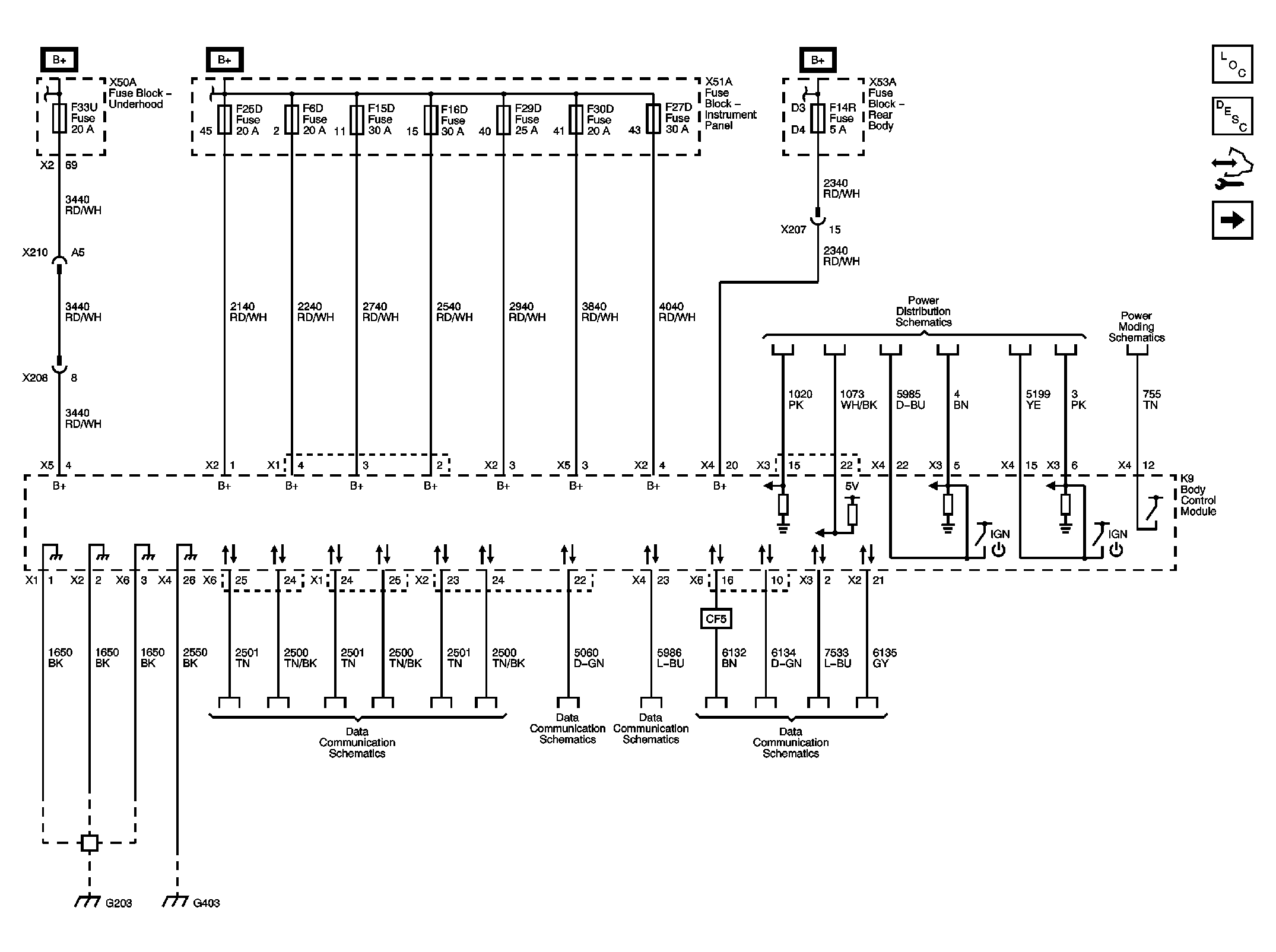

Fig 1: Module Power, Ground, Data Communications

Courtesy of GENERAL MOTORS CORP.

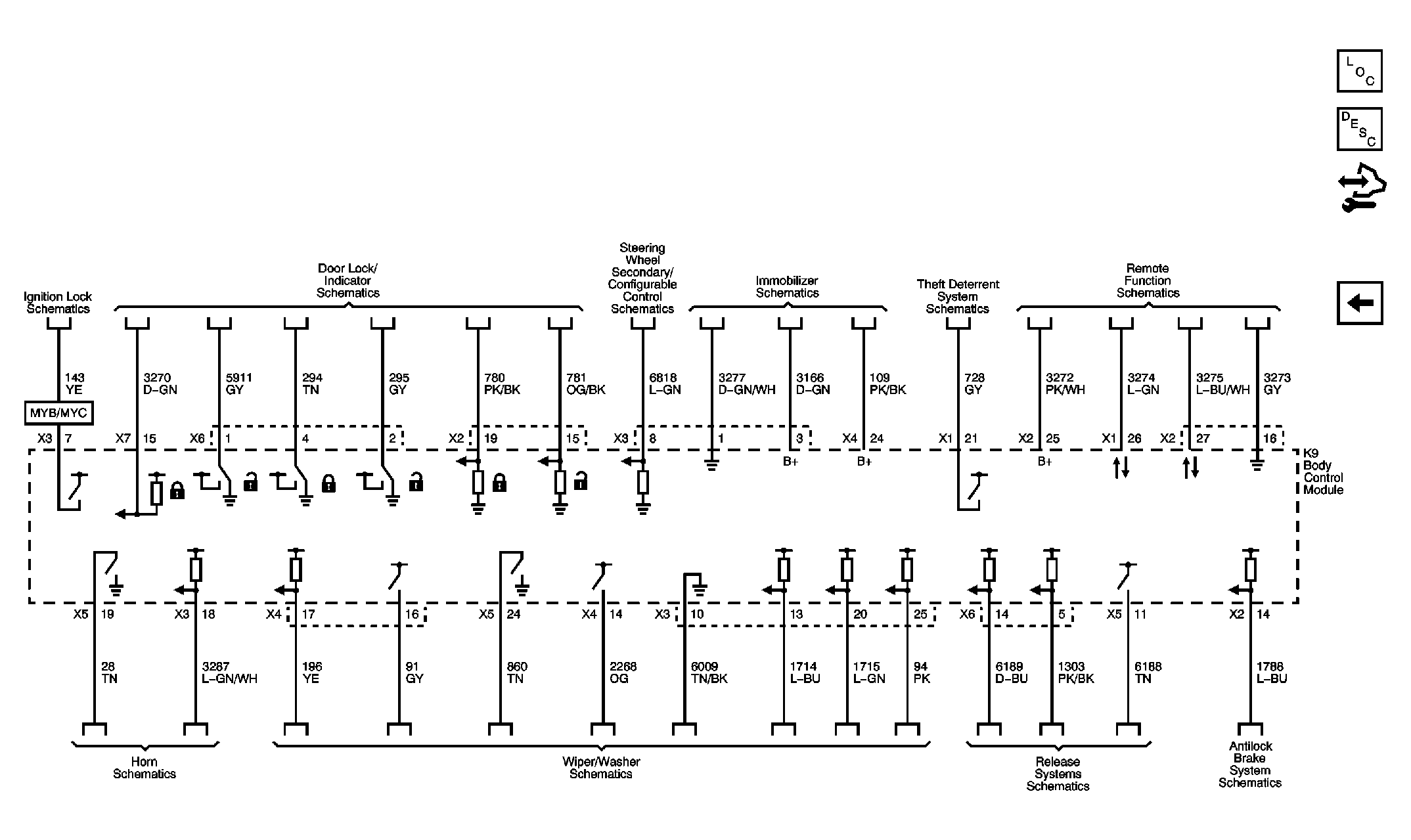

Fig 2: References 1 of 2

Courtesy of GENERAL MOTORS CORP.

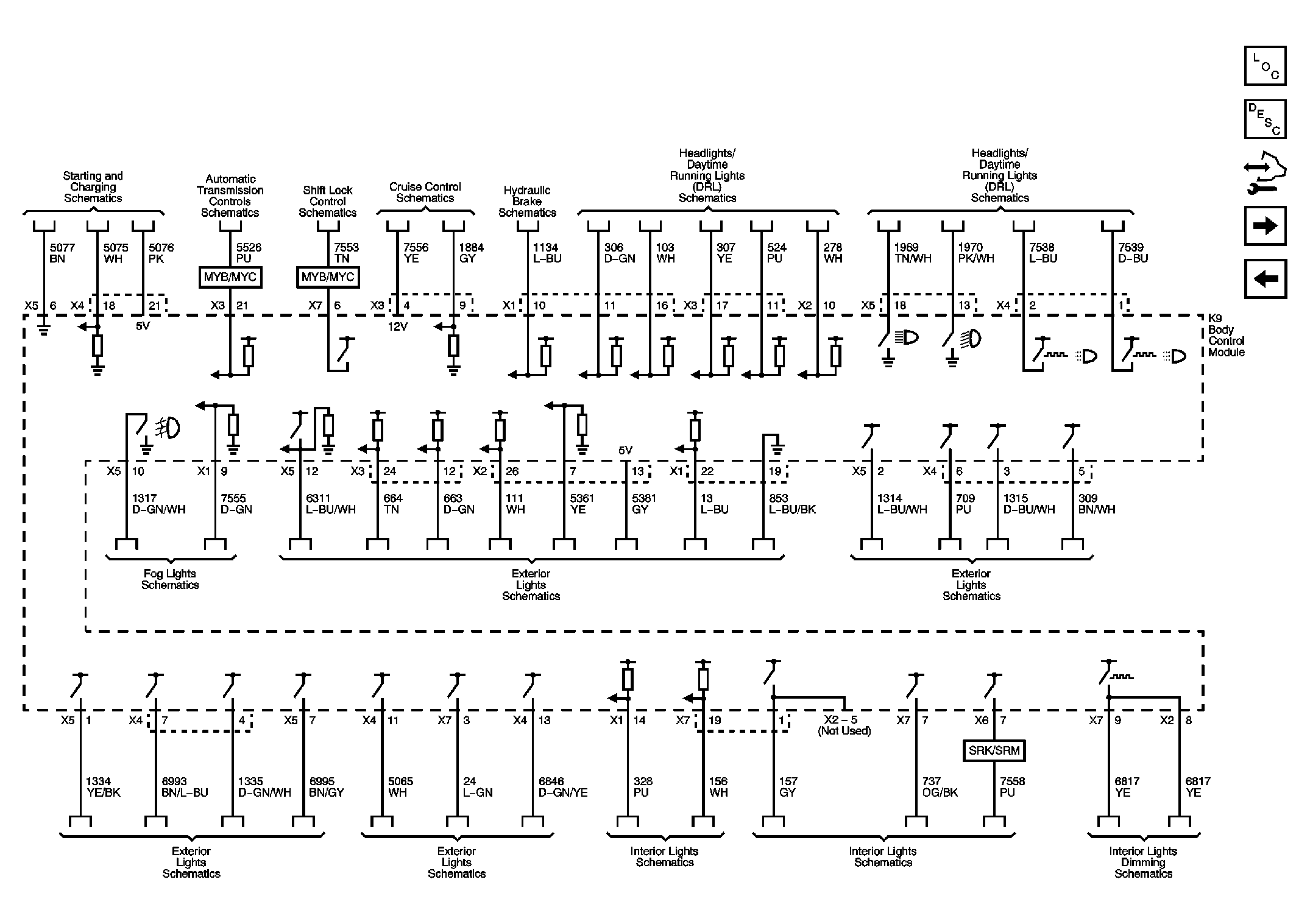

Fig 3: References 2 of 2

Courtesy of GENERAL MOTORS CORP.
